Modell der Baureihe 191
37294
2
Inhaltsverzeichnis:
Seite
Informationen zum Vorbild 4
Sicherheitshinweise 6
Wichtige Hinweise 6
Funktionen 6
Schaltbare Funktionen 7
Parameter/Register 22
Betriebshinweise 23
Wartung und Instandhaltung 24
Ersatzteile 34
Table of Contents:
Page
Information about the prototype 4
Safety Warnings 8
General Notes 8
Functions 8
Controllable Functions 9
Parameter/Register 22
Information about operation 23
Service and maintenance 24
Spare Parts 34
Sommaire :
Page
Informations concernant la locomotive réelle 5
Remarques importantes sur la sécurité 10
Informations générales 10
Fonctionnement 10
Fonctions commutables 11
Paramètre / Registre 22
Remarques sur l’exploitation 23
Entretien et maintien 24
Pièces de rechange 34
Inhoudsopgave:
Pagina
Informatie over het voorbeeld 5
Veiligheidsvoorschriften 12
Algemene informatie 12
Functies 12
Schakelbare functies 13
Parameter/Register 22
Opmerkingen over de werking 23
Onderhoud en handhaving 24
Onderdelen 34
3
Indice de contenido:
Página
Aviso de seguridad 14
Informaciones generales 14
Funciones 14
Funciones posibles 15
Parámetro / Registro 22
Instrucciones de uso 23
El mantenimiento 24
Recambios 34
Indice del contenuto:
Page
Avvertenze per la sicurezza 16
Avvertenze generali 16
Funzioni 16
Funzioni commutabili 17
Parametro/Registro 22
Avvertenze per il funzionamento 23
Manutenzione ed assistere 24
Pezzi di ricambio 34
Innehållsförteckning:
Sidan
Säkerhetsanvisningar 18
Allmänna informationer 18
Funktioner 18
Kopplingsbara funktioner 19
Parameter/Register 22
Driftanvisningar 23
Underhåll och reparation 24
Reservdelar 34
Indholdsfortegnelse:
Side
Vink om sikkerhed 20
Generelle oplysninger 20
Funktioner 20
Styrbare funktioner 21
Parameter/Register 22
Brugsanvisninger 23
Service og reparation 24
Reservedele 34
5
Informations relatives au modèle réel
C’est à partir de 1927 que furent construites les lourdes motrices
pour trains de marchandises de la série E 91. Il s’agissait là d’une
série allégée, les E 91.9, équipées de freins à résistance. Elles
développaient une puissance de 2 200 kW et la vitesse limite de
ces machines, d’un poids de 116,4 t, était de 55 km/h.
La construction articulée avec 2 trains moteurs et une caisse en
3 parties ainsi que la transmission par bielles obliques du type
Winterthur ont donné entière satisfaction sur les lignes monta-
gneuses de l’Allemagne centrale et méridionale.
La Deutsche Bundesbahn reprit 6 motrices de la série E 91.9 et
leur confia, après modernisation, des services de traction et de
manoeuvres jusque vers les années 1970. 2 de ces machines
numérotées depuis, série 191, sont conservées en tant que ma-
chines de musée.
Informatie over het voorbeeld
De zware goederentrein-locomotieven van de bouwserie E 91
werden vanaf 1927 in de lichtere uitvoering E 91.9 gebouwd met
weerstandsrem. Ze leverden een onveranderd vermogen van
2 200 kW en met hun gewicht van 116,4 t bereikten ze een snelheid
van 55 km/u.
De gelede constructie met twee drijfstellen en een driedelige
bovenbouw, alsmede de “Winterthur” – aandrijving met schuine
stangen, voldeden uitstekend op de bergtrajecten van middenen
Zuid-Duitsland.
De “Deutsche Bundesbahn” nam 6 machines van de bouwserie
E 91.9 over en zette deze na hun modernisering in voor route- en
rangeerdiensten tot in de jaren 70. Twee van de inmiddels als
bouwserie 191 aangeduide locomotieven zijn als museumlocs
behouden.
6
Sicherheitshinweise
Die Lok darf nur mit einem dafür bestimmten Betriebssystem
(Märklin Wechselstrom, Märklin Delta, Märklin Digital oder
Märklin Systems) eingesetzt werden.
Nur Schaltnetzteile/Transformatoren verwenden, die Ihrer
örtlichen Netzspannung entsprechen.
Die Lok darf nur aus einer Leistungsquelle versorgt werden.
Beachten Sie unbedingt die Sicherheitshinweise in der
Bedienungsanleitung zu Ihrem Betriebssystem.
Für den konventionellen Betrieb der Lok muss das An-
schlussgleis entstört werden. Dazu ist das Entstörset 74046
zu verwenden. Für Digitalbetrieb ist das Entstörset nicht
geeignet.
Setzen Sie das Modell keiner direkten Sonneneinstrahlung,
starken Temperaturschwankungen oder hoher Luftfeuchtig-
keit aus.
ACHTUNG! Funktionsbedingte scharfe Kanten und Spitzen.
Wichtige Hinweise
Die Bedienungsanleitung und die Verpackung sind Bestand-
teile des Produktes und müssen deshalb aufbewahrt sowie
bei Weitergabe des Produktes mitgegeben werden.
Für Reparaturen oder Ersatzteile wenden Sie sich bitte an
Ihren Märklin-Fachhändler.
Gewährleistung und Garantie gemäß der beiliegenden
Garantieurkunde.
Entsorgung: www.maerklin.com/en/imprint.html
Funktionen
Erkennung der Betriebsart: automatisch.
Einstellbare Adressen:
1-80 (Control Unit 6021/Mobile Station 60651/652)
1-255 (Central Station 6021x/Mobile Station 60653)
Adresse ab Werk: 20
Mfx-Technologie für Mobile Station / Central Station.
Name ab Werk: 191 101-5 DB
Veränderbare Anfahrverzögerung (ABV).
Veränderbare Bremsverzögerung (ABV).
Veränderbare Höchstgeschwindigkeit.
Einstellen der Lokparameter (Adresse, Anfahr-/Bremsverzö-
gerung, Höchstgeschwindigkeit): über Control Unit,
Mobile Station oder Central Station.
Fahrtrichtungsabhängige Stirnbeleuchtung.
Spielmodus Lokführer
Im Analogbetrieb stehen nur die Fahr- und Lichtwechsel-
funktionen zur Verfügung.
Weiterführende Erläuterungen zum Spielewelt-Modus finden Sie
in der ergänzenden Anleitung (beiliegend).
7

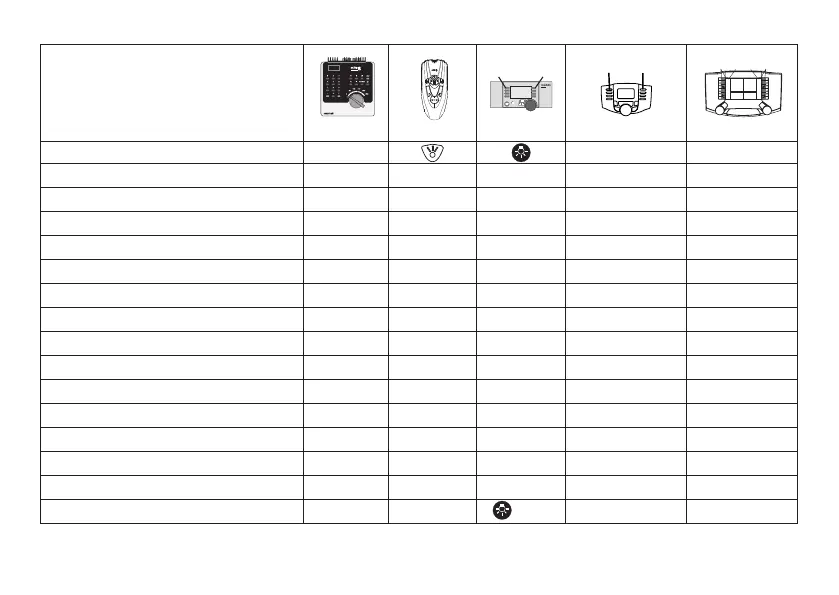

Schaltbare Funktionen
Spitzensignal function/off Funktion f0 Funktion f0
Betriebsgeräusch f2 Funktion 2 Funktion 3 Funktion f2 Funktion f2
Geräusch: Lokpfeife lang f3 Funktion 3 Funktion 4 Funktion f3 Funktion f3
ABV aus f4 Funktion 4 Funktion 2 Funktion f4 Funktion f4
Geräusch: Bremsenquietschen aus Funktion 6 Funktion f5 Funktion f5
Stirnbeleuchtung Führerstand 2 aus Funktion 1 Funktion f6 Funktion f6
Geräusch: Rangierpfiff kurz Funktion 5 Funktion f7 Funktion f7
Stirnbeleuchtung Führerstand 1 aus Funktion 8 Funktion f8 Funktion f8
Geräusch: Bahnhofsansage Funktion 7 Funktion f9 Funktion f9
Geräusch: Ankuppeln Funktion f10 Funktion f10
Geräusch: Sanden Funktion f11 Funktion f11
Geräusch: Pantograph (hoch/nieder) Funktion f12 Funktion f12
Geräusch: Lüfter Funktion f13 Funktion f13
Geräusch: Bremsenquietschen * Funktion f14 Funktion f14
Rangiergang Funktion f15 Funktion f15
Rangierlicht doppel A + 1 + 8 f0 + f6 + f8 f0 + f6 + f8
f0 f8 f0f8
STOP
mobile station
systems
1
5
Digital/Systems
F0
F4
* nur für „Spielewelt“ (nicht verschieben, nicht mappen)
8
Functions
Recognition of the mode of operation: automatic.
Addresses that can be set:
1-80 (Control Unit 6021/Mobile Station 60651/652)
1-255 (Central Station 6021x/Mobile Station 60653)
Address set at the factory: 20
Mfx technology for the Mobile Station / Central Station.
Name set at the factory: 191 101-5 DB
Adjustable Acceleration delay (ABV).
Adjustable Braking delay (ABV).
Adjustable maximum speed.
Setting the locomotive parameters (address, acceleration/
braking delay, maximum speed): with the Control Unit,
Mobile Station, Central Station.
Headlights, changing over with the direction of travel.
World of Operation Mode
Only the train control functions and headlight changeover
feature are available in analog operation.
Additional explanations about the World of Operation mode can
be found in the supplemental instructions (included).
Safety Notes
This locomotive is to be used only with an operating system
designed for it (Märklin AC, Märklin Delta,
Märklin Digital or Märklin Systems).
Use only switched mode power supply units and transfor-
mers that are designed for your local power system.
This locomotive must never be supplied with power from
more than one transformer.
Pay close attention to the safety notes in the instructions for
your operating system.
The feeder track must be equipped to prevent interference
with radio and television reception, when the locomotive is
to be run in conventional operation. The 74046 interference
suppression set is to be used for this purpose.
Do not expose the model to direct sunlight, extreme changes
in temperature, or high humidity.
WARNING! Sharp edges and points required for operation.
Important Notes
The operating instructions and the packaging are a compo-
nent part of the product and must therefore be kept as well
as transferred along with the product to others.
Please see your authorized Märklin dealer for repairs or
spare parts.
The warranty card included with this product specifies the
warranty conditions.
Disposing: www.maerklin.com/en/imprint.html
