Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768

48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768

68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200

75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050

65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of PC signal

X64w

Operator's Guide

TECHNICAL

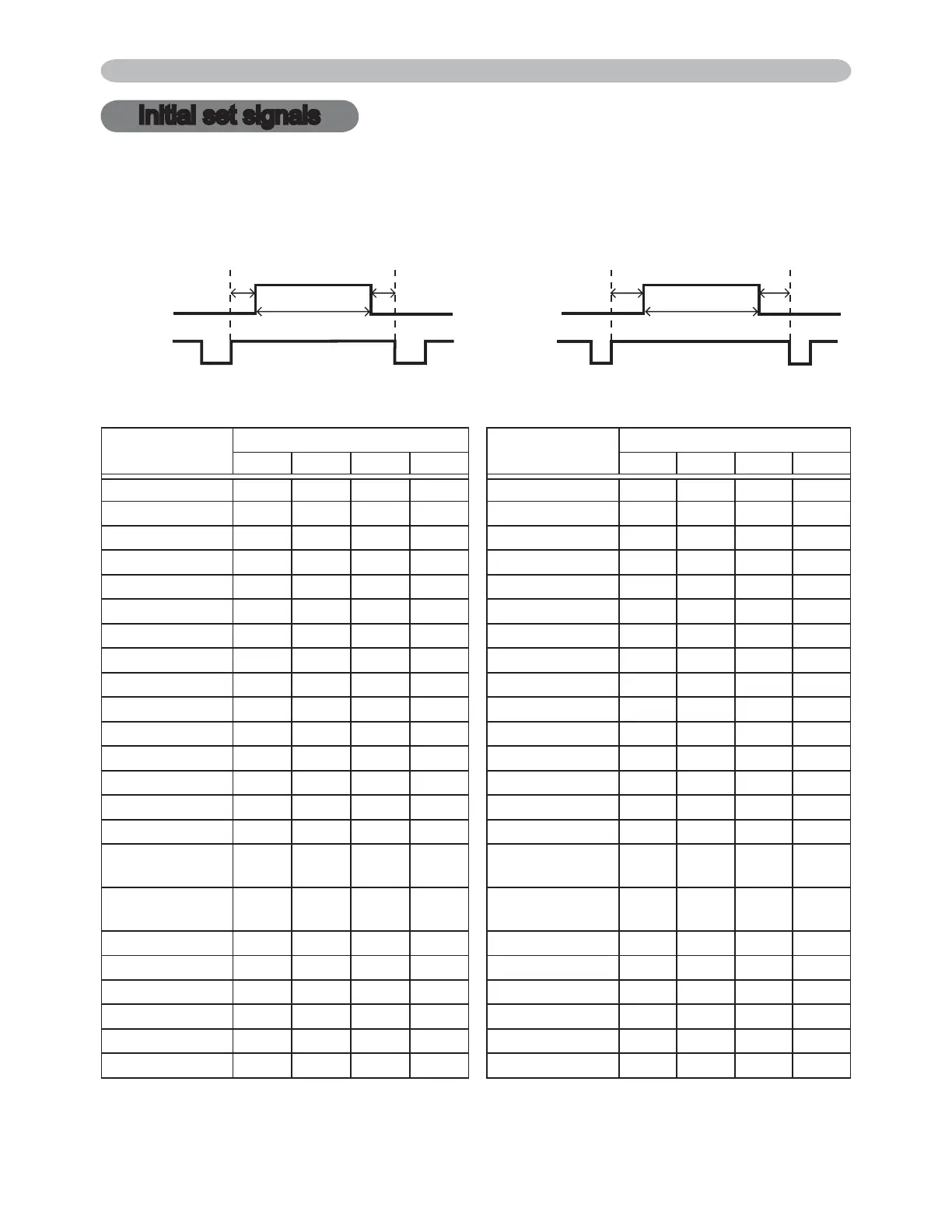

Initial set signals

The following signals are used for the initial settings. The signal timing of some

PC models may be different. In such case, adjust the items V POSITION and H

POSITION in IMAGE menu.

computer

Signal

+RUL]RQWDOVLJQDOWLPLQJȝV

computer

Signal

Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1

3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz)

1.2

2.4 10.7 0.6

1152 x 864

(75Hz)

3 32 864 1

1280 x 960

(60Hz)

1.0

2.9 11.9 0.9

1280 x 960

(60Hz)

3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 2.0 11.4 0.7 SXGA+ (60Hz) 3 33 1050 1

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

3M™ Digital Projector X64w

Produkspesifikasjoner

Merke:	3M
Kategori:	videoprosjektor
Modell:	X64w
Vekt:	4000 g
Støynivå:	35 dB
Tilkoblingsteknologi:	Trådløs
Antall farger:	16.78 million farger
Antall USB 2.0-porter:	1
Fokus:	Manuell
Antall innebygde høyttalere:	1
Sertifisering:	UL, cUL, FCC Part 15, subpart B, Class B, CE, EN60950-1
Lydutgang:	1
Dimensjoner (B x D x H):	340 x 117 x 270 mm
Kontrastforhold:	500:1
Projektorens lysstyrke:	2600 ANSI lumen
Projektoroppløsning:	XGA (1024x768)
Analogt signalformatsystem:	NTSC, NTSC 4.43, PAL, SECAM
Visningsteknologi:	LCD
Skjermstørrelsekompabilitet:	300 "
Hjørnesteinsrettelse, vertikal:	-30 - 30 °
Horisontalt frekvensområde:	31.5 - 106 kHz
Brennviddeområde:	20 - 23 mm
RS-232-port:	1
Lyskildens tjenestetid:	2000 timer
Lyskildetype:	Lampe
Strømforbruk (vanlig bruk):	350 W
Antall VGA (D-Sub)-porter:	3
Lydinngang (V/H) inn:	1
Komponentvideo (YPbPr/YCbCr) inn:	1
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	5 - 35 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Lampetype:	UHB
Antall S-Video-innganger:	1
Krav til strømforsyning:	100 - 120 V, 220 - 240 V
Komposittvideo inn/sammensatt video inn:	1
RMS-rangert strøm/utgangseffekt:	7 W
Lampens effekt:	220 W
Lyskildens tjenestetid (økonomisk modus):	3000 timer
Størrelseforhold:	4:3, 16:9
Vertikal scanningsratio:	56 - 120 Hz
Lydkontakter:	2
Zoom-forhold:	1.2:1
Plugg inn og spill:	Ja
