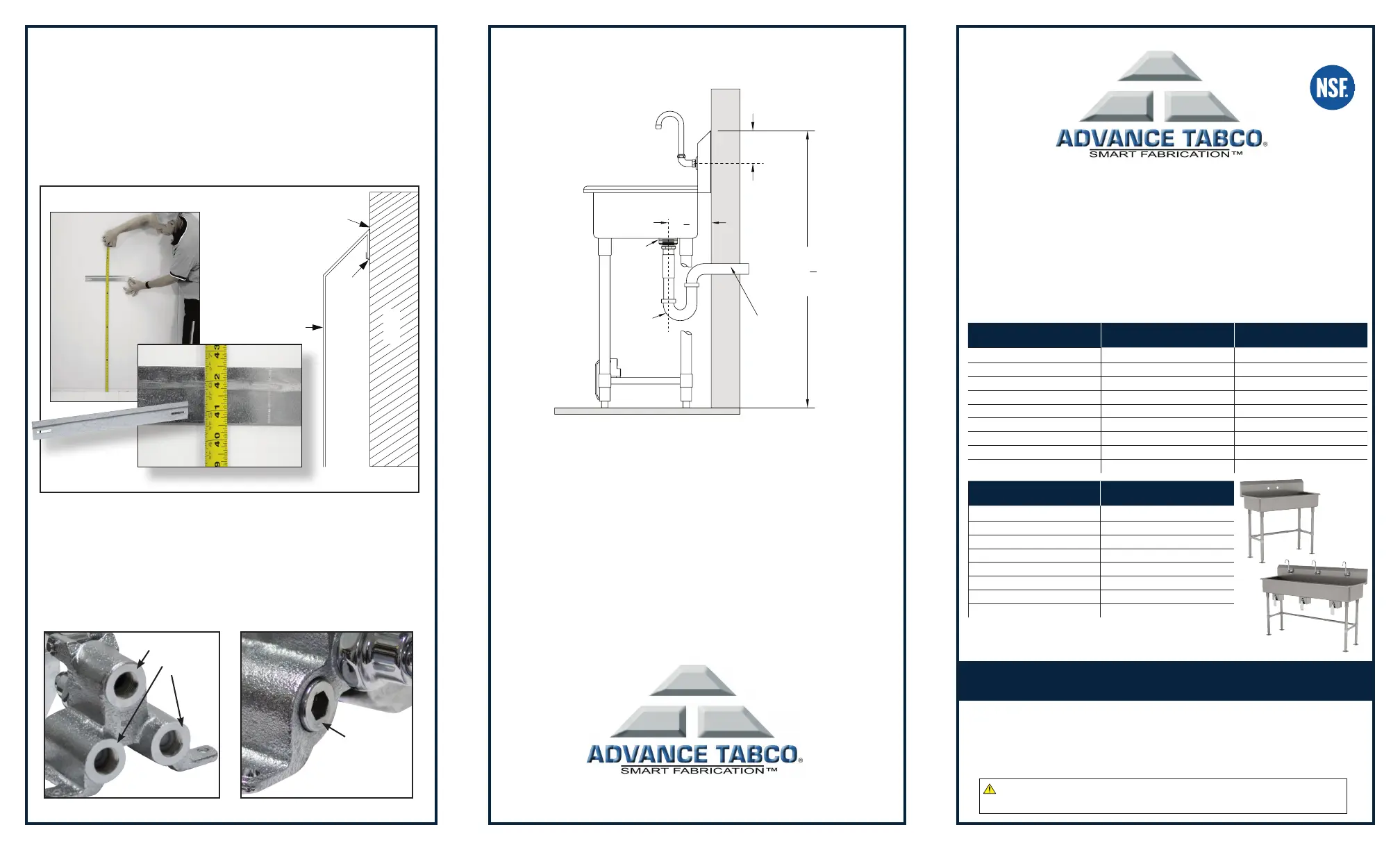

Installation Instructions for
FREE STANDING
NSF MULTI-STATION SINKS
FS-FM/FC-FM SERIES
Suggested Rough Plumbing Dimensions
Figure 7Figure 6
3/8” NPT
Females
Mixing
Valve
42
1
2
"
L
C
P-Trap
Drain
To Waste Line
6
1
2
"
5
"
L
C
For Further Assistance
Contact Customer Service at:
800-645-3166
or
customer@advancetabco.com
WALL BRACKET(S) INSTALLATION
Mount the provided wall “Z” brackets to wood studs or
cement walls for strong support. Mount the bracket(s) at
recommended height of 42.5” from the finished floor to
the to the top of the bracket (Figure 6).
Slide the sink onto the wall brackets and be sure the sink
sits securely on them.
Figure 5
Back Splash
Silicone Sealer
"Z"
Bracket
Wall
Actual “Z”
Bracket Shown
Figure 6
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
FOR KNEE VALVE (KV) OR TOE-PUSH VALVE (FV) MODELS:
Connect water supply lines to valve(s) and water supply
line(s) from valve(s) to faucet(s). Connect drain(s).
(Figure 6).
Adjust mixing valve at front of valve (Figure 7).
KNEE
OPERATED FAUCETS
TOE-PUSH
OPERATED FAUCETS
Model # Model #
FC or FS-FM-23KV/FC or FS-FM-23KV FC or FS-FM-23FV/FC or FS-FM-23FV
FC or FS-FM-40KV/FC or FS-FM-40KV FC or FS-FM-40FV/FC or FS-FM-40FV
FC or FS-FM-60KV/FC or FS-FM-60KV FC or FS-FM-60FV/FC or FS-FM-60FV
FC or FS-FM-80KV/FC or FS-FM-80KV FC or FS-FM-80FV/FC or FS-FM-80FV
FC or FS-FM-100KV/FC or FS-FM-100KV
FC or FS-FM-100FV/FC or FS-FM-100FV
FC or FS-FM-120KV/FC or FS-FM-120KV
FC or FS-FM-120FV/FC or FS-FM-120FV
FC or FS-14-21KV-FM/FC or FS-16-25KV-FM FC or FS-14-21FV-FM/FC or FS-16-25FV-FM
NO FAUCET
INCLUDED
MANUAL FAUCETS
INCLUDED
ELECTRONIC
OPERATED FAUCETS
Model # Model # Model #
FC or FS-FM-1-ADA FC or FS-FM-1-ADA-F FC or FS-FM-1-EFADA
FC or FS-FM-23/FC or FS-FM-23-ADA FC or FS-FM-23-F/FC or FS-FM-23-ADA-F FC or FS-FM-23EF/FC or FS-FM-23EFADA
FC or FS-FM-40/FC or FS-FM-40-ADA FC or FS-FM-40-F/FC or FS-FM-40-ADA-F FC or FS-FM-40EF/FC or FS-FM-40EFADA
FC or FS-FM-60/FC or FS-FM-60-ADA FC or FS-FM-60-F/FC or FS-FM-60-ADA-F FC or FS-FM-60EF/FC or FS-FM-60EFADA
FC or FS-FM-80/FC or FS-FM-80-ADA FC or FS-FM-80-F/FC or FS-FM-80-ADA-F FC or FS-FM-80EF/FC or FS-FM-80EFADA
FC or FS-FM-100/FC or FS-FM-100-ADA FC or FS-FM-100-F/FC or FS-FM-100-ADA-F FC or FS-FM-100EF/FC or FS-FM-100EFADA
FC or FS-FM-120/FC or FS-FM-120-ADA FC or FS-FM-120-F/FC or FS-FM-120-ADA-F FC or FS-FM-120EF/FC or FS-FM-120EFADA
FC or FS-14-21-FM/FC or FS-16-25-FM FC or FS-14-21-FM-F/FC or FS-16-25-FM-F FC or FS-14-21EF-FM/FC or FS-16-25EF-FM
