Pinspot LED SPECIFICATIONS:
LED: 3W
Working Position: Any safe working position
Power Input Voltage: 100~240V AC 50/60Hz
Weight: 1lbs./ .5Kgs.
Dimensions: 5.75”(L) x 3”(W) x 2.4”(H)
145 x 75 x 61mm
Warranty: 3 Year (1095 days)

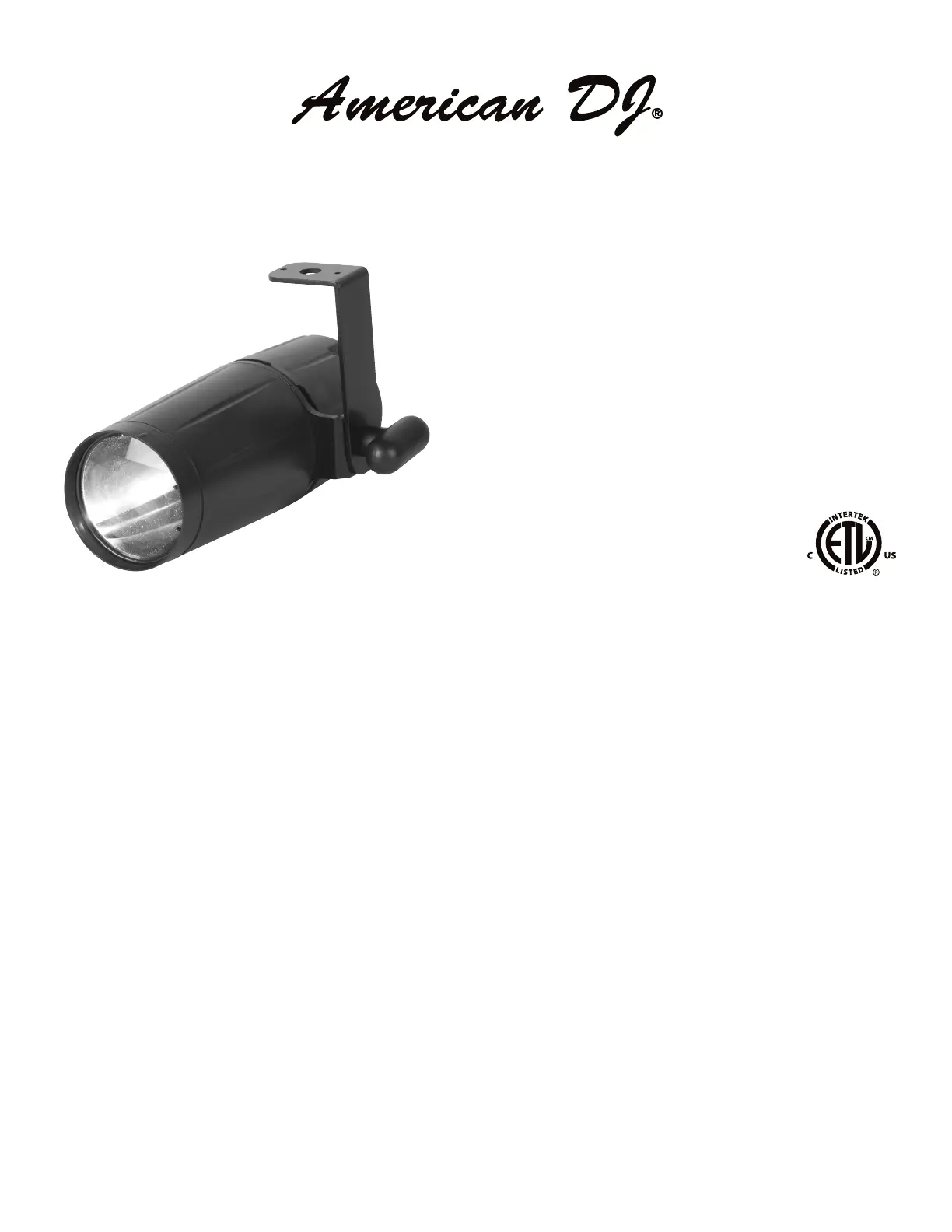

Pinspot LED
Unpacking: Thank you for purchasing the Pinspot LED by American DJ®. Every Pinspot LED has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are missing, please contact our toll free
customer support number for further instructions. Do not return this unit to your dealer without rst
contacting customer support.
Introduction: The Pinspot LED is part of American DJ’s continuing pursuit for creating high qual-
ity affordable fixtures. The Pinspot LED is a simple, small LED Pin Spot. This pin spot is light weight
and compact which makes it a great piece for mobile DJ’s, archtectural lighting, or ligting effect. The
Pinspot LED is also suitable for theaters, studios, retail stores, and other similar locations.
Lens Change: The Pinspot LED comes with a standard 12 degree lens already attached. Included in
the box is an optional 6 degree lens. To switch lenses simply remove the retainer ring in front of the
current lens, carefully remove the lens, and attach the 6 degree lens. Replace the retainer ring and the
switch is complete.
Installation: The unit should be mounted using a mounting clamp (not provided), afxing it to the
mounting bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid
vibration and slipping while operating. Always ensure that the structure to which you are attaching the
unit is secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety
cable that can hold 12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be installed in a place where it is out
of the reach of people’s grasp.
4000358
