Side 1/20

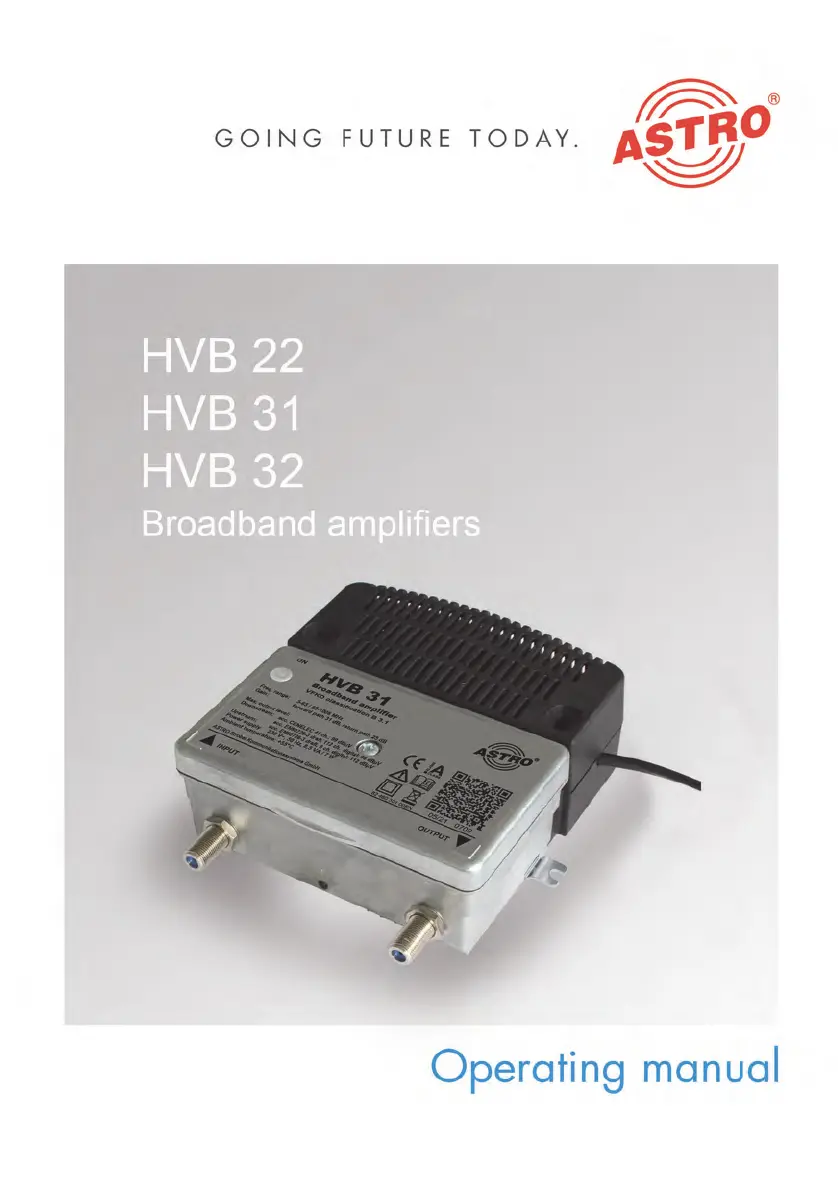

Version 05-2021A

Before operating the device

Operating manual HVB 22, HVB 31 a. HVB 32 - Version 05-2021Apage 2

Before operating the device

HINWEIS: Read this operating manual through carefully!

It contains important information about installation, ambient

conditions and maintenance of the device. Keep this operating

manual for future use and for handover in the event of a

change of owner or operator. A PDF version of this manual can

be downloaded on the ASTRO website (there may be a more

recent version).

The ASTRO company confirms that the information in this

manual was correct at the time of printing, but it reserves the

right to make changes to the specifications, the operation of the

device and the operating manual without prior notice.

page 3

Contents

Operating manual HVB 22, HVB 31 a. HVB 32 - Version 01-2021A

Contents

Symbols and conventions used...........................................page 04

Intended use........................................................................page 05

Intended audience for this manual.......................................page 05

Device description...............................................................page 06

Important safety information................................................page 08

Warranty conditions.............................................................page 12

Performance description......................................................page 12

Disposal...............................................................................page 12

Installation...........................................................................page 13

Connection and start-up......................................................page 14

Configuration.......................................................................page 14

Troubleshooting...................................................................page 16

Maintenance and repair.......................................................page 16

Block diagram......................................................................page 17

Technical data.....................................................................page 18

Produkspesifikasjoner

Merke:	Astro
Kategori:	Mottaker
Modell:	HVB 31
Vekt:	800 g
Bredde:	135 mm
Dybde:	49 mm
Høyde:	140 mm
Opprinnelsesland:	Tyskland
Sertifisering:	Vodafone
Inngangsspenning:	230 V
Impedans:	75 Ω
Frekvensområde:	85 - 1006 MHz
Driftstemperatur (T-T):	-15 - 55 °C
Dekselfarge:	Aluminium
Gain:	31 dB
