Side 1/3

DISPLAYPORT 1.4

ACTIVE OPTICAL

CABLE, 8K

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

DATA SHEET

SOURCE

1.877.877.2269

BLACKBOX.COM

INTRODUCTION

Black Box DisplayPort Active Optical Cables awlessly

transmit uncompressed, full Ultra HD 8K video signals hundreds

of meters. This all-in-one cable design is plug-and-play, and

eliminates the need for a modular solution including a transmit-

ter, receiver, copper cabling, power and all

of the potential points of failure that come with it. Simply

connect the cable between your source and display like

a standard copper cable and leave it to awlessly transmit your

audio/video signal without worry of signal loss or degradation.

The cable is unidirectional—the source side connector connects

to the source and the display side connector connects to the

display.

Built-in technology inside the connectors actively converts

the electrical DisplayPort signal into an optical signal for

transmission, and then back to electrical for display. They also

use a hybrid design that includes both copper and ber, in which

the ber technology allows for signicantly increased

bandwidth that supports transmission of full Ultra HD video

resolutions at distances that the copper alternatives just can’t

come close to. It also provides higher immunity to EMI/RFI

interference and electromagnetic noise. And the inclusion

of copper wiring in the design allows for power to go over the

cable, meaning no external power is required. This design also

makes for a much thinner and more exible cable with a

tighter bend radius, making it easy to pull through tight spaces

and more freely navigate around corners and bends, not to

mention much lighter than its all-copper counterparts.

Black Box Active Optical Cables are the perfect A/V

distribution solution for control rooms, digital signage,

healthcare, conference rooms, mass transit and any other

application where uncompromised, Ultra High Denition video

is required at extended distances.

FEATURES

§§ UP TO FULL 7680 X 4320 (8K) VIDEO SIGNALS UP TO 100 M

§§ DATA TRANSFER RATES UP 32.4 GBPS

§§ HIGH DYNAMIC RANGE (HDR) VIDEO FOR EXPANSIVE CONTRAST

RATIO AND COLOR ACCURACY

§§ SUPPORTS DELIVERY OF DUAL VIDEO STREAMS TO A DISPLAY

(IF SUPPORTED BY DISPLAY)

§§ 21:9 CINEMA ASPECT RATIO

§§ SUPPORTS BT.2020 COLORIMETRY

§§ UP TO 32 AUDIO CHANNELS WITH 1536 KHZ SAMPLING RATE

§§ SUPPORT DPCP/EDID/CEC/DDC

§§ LATCHING CONNECTORS PREVENT ACCIDENTAL DISCONNECTION

§§ PLUG AND PLAY, NO SOFTWARE TO INSTALL. THE SOURCE SIDE

CONNECTOR CONNECTS TO THE SOURCE, AND THE DISPLAY SIDE

CONNECTOR CONNECTS TO THE DISPLAY

§§ HYBRID CONSTRUCTION USES BOTH COPPER AND FIBER.

NO EXTERNAL POWER IS REQUIRED

§§ ULTRA-THIN, FLEXIBLE CABLING MAKES IT EASY TO PULL THROUGH

TIGHT SPACES AND NAVIGATE CORNERS AND BENDS WITH LOW

RISK OF SIGNAL LOSS

§§ FIBER TECHNOLOGY GREATLY REDUCES EMI/RFI EMISSIONS

§§ TRIPLE-SHIELDING FURTHER PROTECTS AGAINST INTERFERENCE

TO ENSURE OPTIMAL SIGNAL QUALITY

§§ FEATURES ZINC ALLOY CONNECTORS FOR ENHANCED DURABILITY

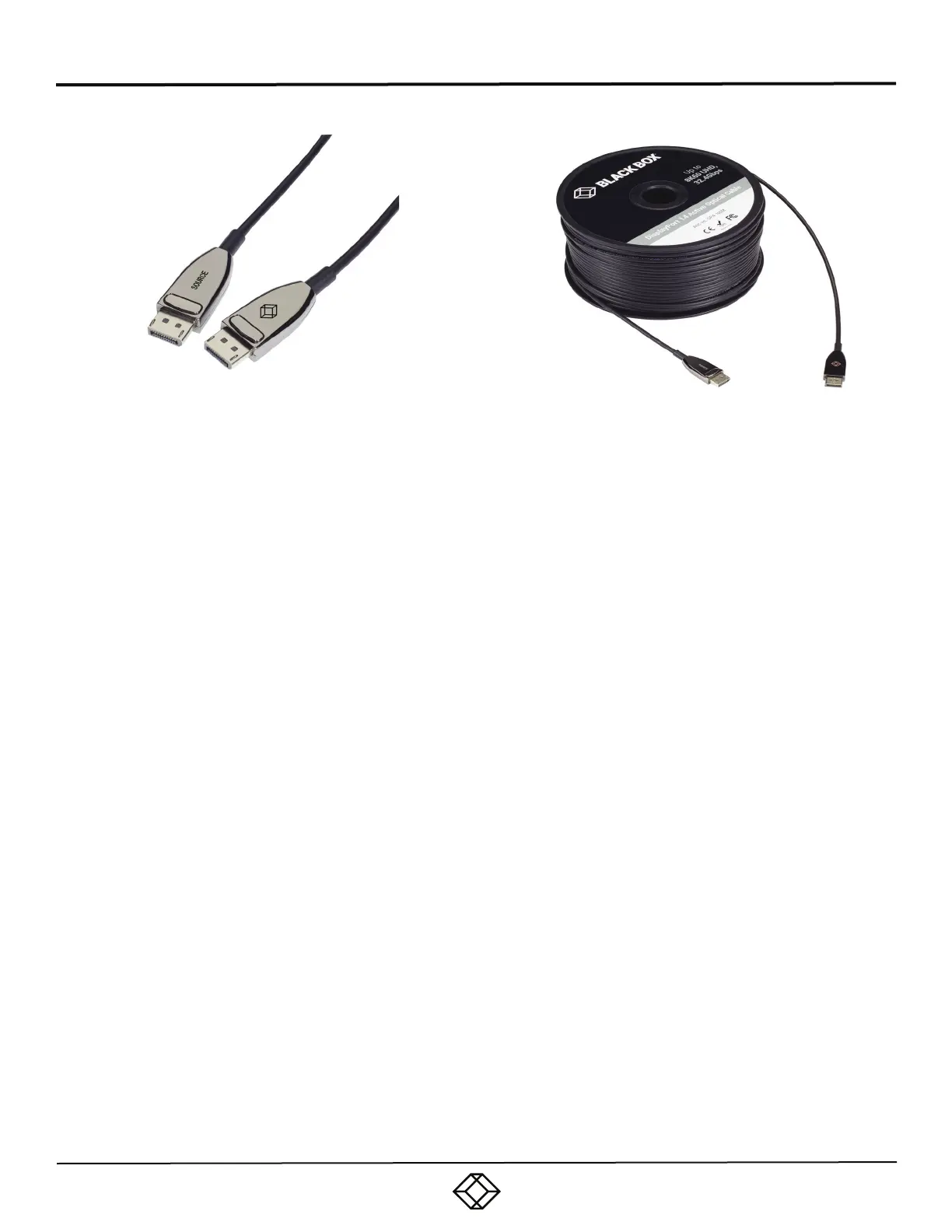

DISPLAYPORT 1.4 ACTIVE OPTICAL CABLE, 8K, 32.4 GBPS DATA SHEET

OVERVIEW

Produkspesifikasjoner

Merke:	Black Box
Kategori:	AV ekstender
Modell:	AOC-HL-DP4-50M
Bluetooth:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	7680 x 4320 piksler
Sertifisering:	CE, FCC, RoHS2
HDCP:	Ja
Antall per pakke:	1 stykker
DisplayPorts ut:	2
HDBaseT-sertifisert:	Nei
DisplayPort-versjon:	1.4
Båndbredde:	34200 MB/s
HDCP-versjon:	2.2
HDBaseT-port:	Nei
Tilkobling 1:	DisplayPort
Tilkobling 2:	DisplayPort
Kabelmateriale:	Fiber optic/Copper
HDCP-gjennomgang:	Ja
Kabellengde:	50 m
Produktfarge:	Sort
Monteringssett:	Nei
Driftstemperatur (T-T):	0 - 70 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 89
Bærekraftsertifikater:	RoHS
AUX-inngang:	Nei
Modell/Type:	AV-sender og -mottaker
Kabeldiameter:	4.8 mm
Ekstern strømadapter:	Nei
Oppgraderbar fastvare:	Nei
DC-inngangskontakt:	Nei
Line-in:	Nei
CEC-gjennomgang:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Rack-montering:	Nei
Plugg inn og spill:	Ja
Kontaktplettering:	Nickel
Magnetisk beskyttet:	Ja
Maksimal overføring avstand:	50 m
3,5 mm inn:	Nei
Connector 1 kjønn:	Hankjønn
Connector 2 kjønn:	Hankjønn
3.5 mm ut:	Nei
Jakkemateriale:	Low smoke zero halogen (LSZH)
Extended display identification data (EDID):	Ja
Innebygd antenne:	Nei
AUX-utgang:	Nei
DisplayPort innholdsbeskyttelse (DPCP):	Ja
Smekkontakter:	Ja
Antall beskyttende lag:	3
