Side 1/2

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

February 2010

MT1000A-85-R4

BL A C K B OX

Transmit up to four analog line signals

via an unshielded twisted-pair (UTP) cable

in a point-to-point installation.

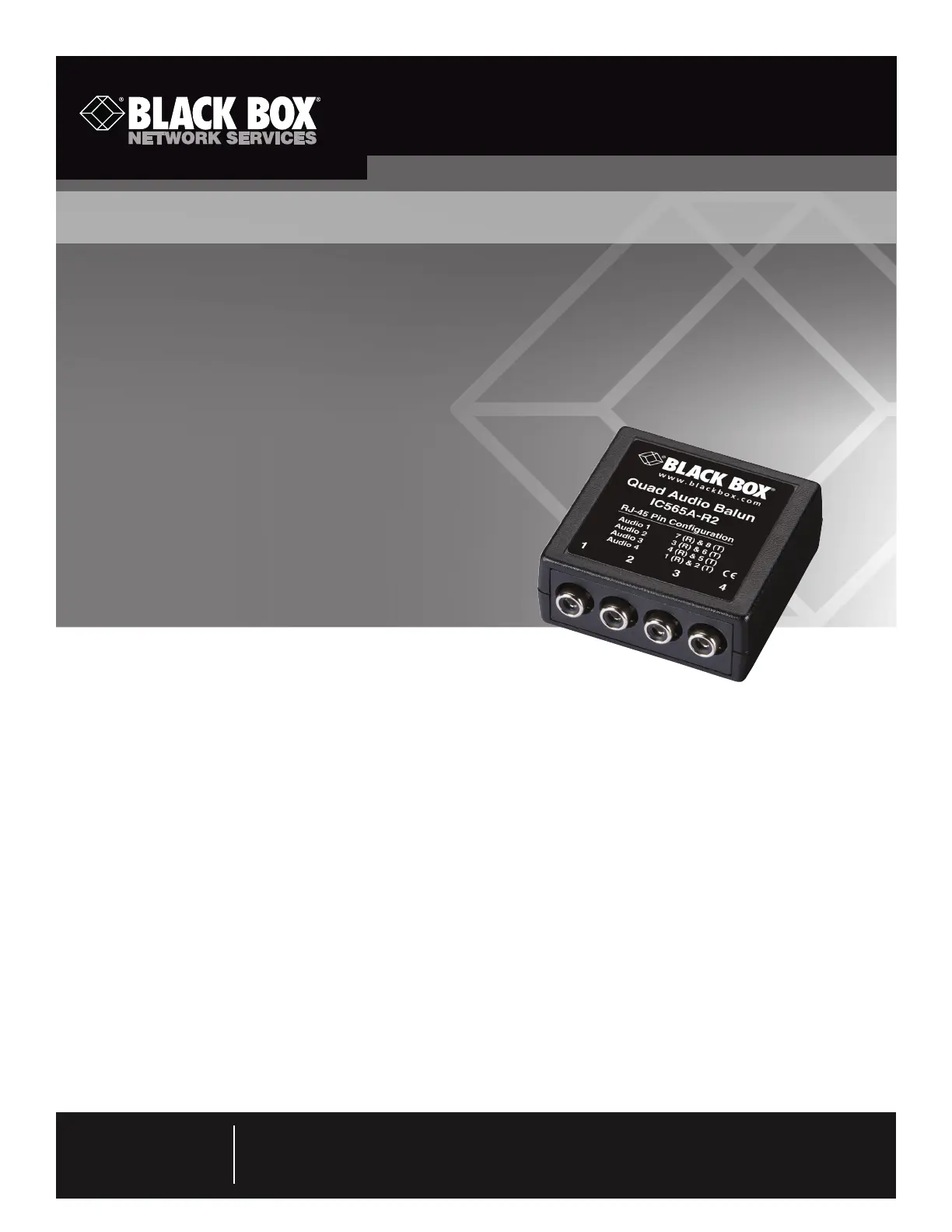

Quad Audio Balun

IC565A-R2

1. Specifications

Environment — Unbalanced line-level analog audio

Bandwidth — 20 Hz to 20 kHz

Cable — CAT5e UTP/STP

Common Mode Rejection Ratio — Greater than 60 dB

at 1 kHz

Compatible Devices — DVD players, audio receivers, audio

amplifiers and audio mixers, audio matrix switches,

and other unbalanced line-level equipment

Ground Loop Isolation — Range of ±50 VDC

Impedance Transformation Ratio — Single unit: 4:1

(source:line)

Insertion Loss — Less than 2 dB over the frequency range

Maximum Distance for CAT5e/6 UTP/STP — 3250 ft.

(1 km)

Maximum Input Level — 1.1 Vp-p

Peripherals Impedance — Source: 100 M-ohms;

Receiver: 10 k-ohms

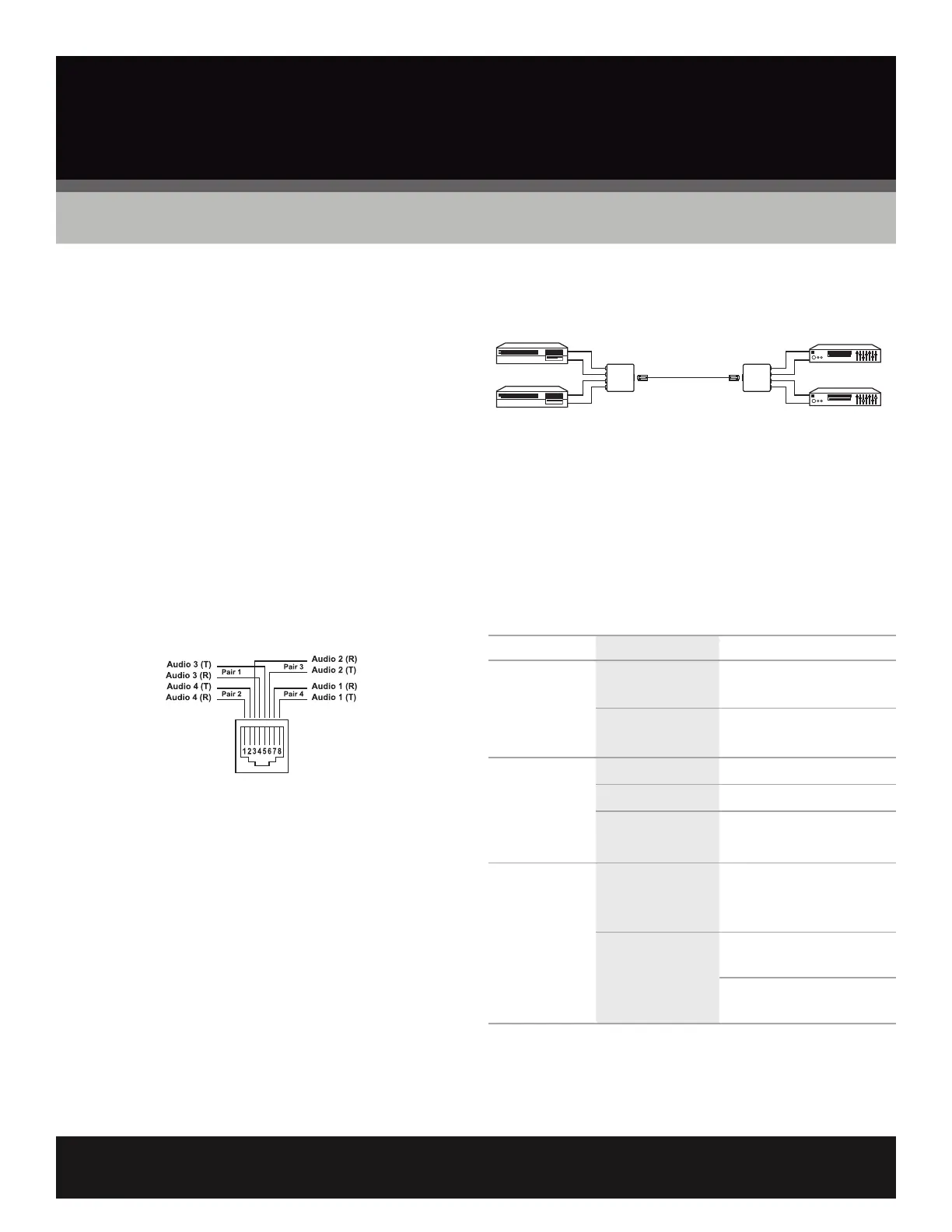

Pin Configuration — Audio 1: Pins 7 (R) and 8 (T);

Audio 2: Pins 3 (R) and 6 (T);

Audio 3: Pins 4 (R) and 5 (T);

Audio 4: Pins 1 (R) and 2 (T)

THD — Less than 0.007% at 1 kHz

Unbalanced In/Out Cable — Shielded, coaxial

Connectors — (4) RCA receptacles for audio, (1) RJ-45 jack

Temperature Tolerance — Operating: 32 to 131° F

(0 to 55° C);

Storage: -4 to +185° F (-20 to +85° C)

Humidity — Up to 95%, noncondensing

Enclosure — Fire-retardant plastic

Size — 2.4"H x 2.25"W x 1"D (6.1 x 5.7 x 2.5 cm)

Weight — 3.6 oz. (103 g)

Produkspesifikasjoner

Merke:	Black Box
Kategori:	AV ekstender
Modell:	IC565A-R2
Maksimal oppløsning:	- piksler
Dimensjoner (B x D x H):	57 x 25 x 61 mm
Produktfarge:	Sort
Modell/Type:	AV-sender
Ekstern strømadapter:	Nei
DC-inngangskontakt:	Nei
Lydkontakter:	4 x RCA F
Maksimal overføring avstand:	1500 m
Kabeltyper som støttes:	Cat5
RJ-45-utgangsporter:	1
Antall forbindelser:	5
