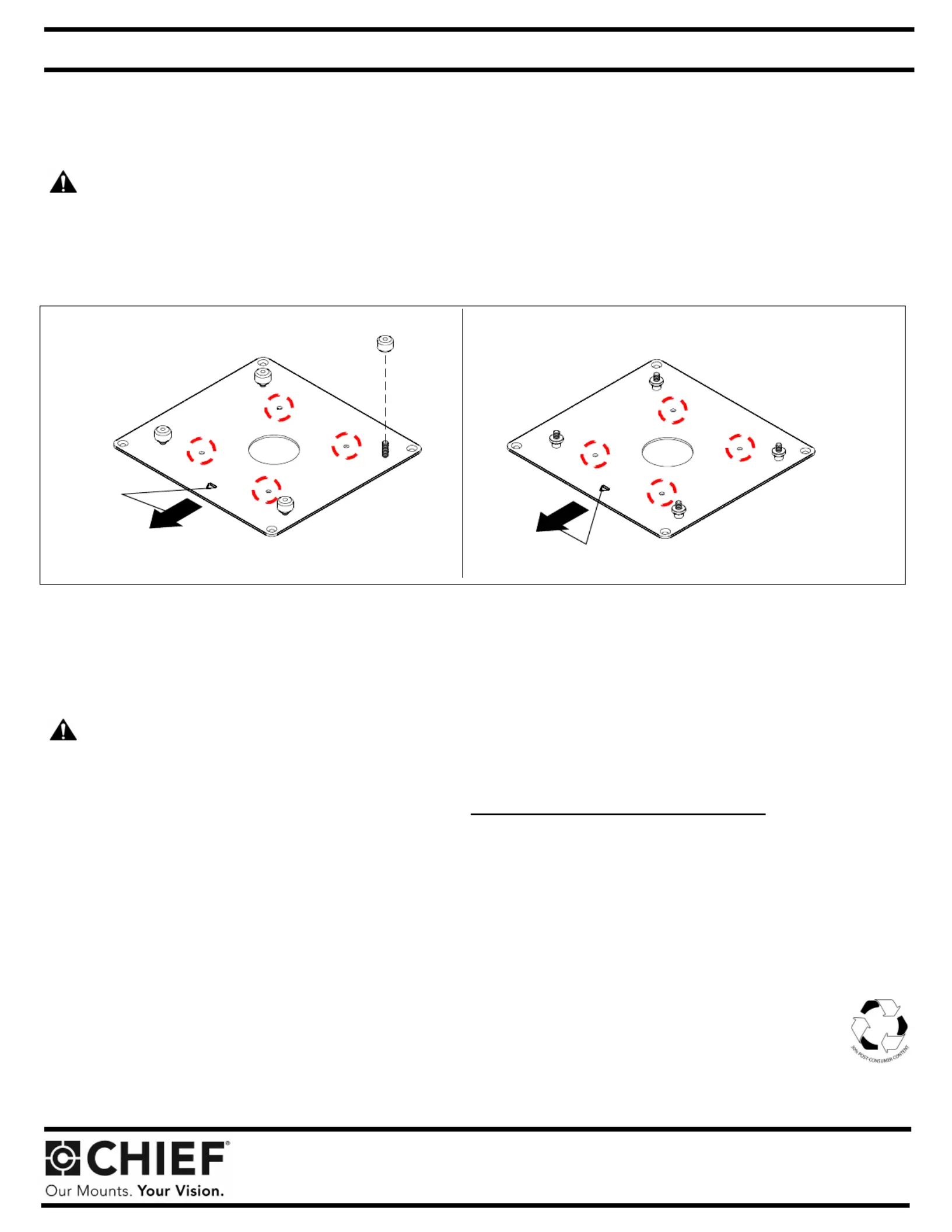

I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8802-002052 Rev00
©2010 Milestone AV Technologies,
a Duchossois Group Company
01/10
SSB-258, SSM-258, SLB-258 and SLM-258 Interface Brackets
SSB-258, SSM-258, SLB-258 and SLM-258 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation: All appropriate screws come pre-installed in the circled locations.
DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place four spacers over four threaded inserts in bottom of projector.
4. Place interface bracket onto spacers, aligning the spacers with mounting holes in bracket and with threaded inserts in bottom of projector,
and ensuring that triangle in bracket points towards front of projector.
5. Position four M4 x 20mm Phillips flat head mounting screws through the mounting holes in bracket, the spacers and into the threaded
inserts. Tighten all fasteners at this time, securing the bracket to the projector.
NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (4) Screw, Phillips Flat Head, Machine, M4 x 20mm
(4) 10-24 Thumb Nuts ** (4) Spacer, .50 x .194 x .50
(1) All-Points Security Kit (1) 5/32" Security Hex Key
Towards front
of projector
Towards front
of projector
SLB-258 SLM-258
Produkspesifikasjoner
| Merke: | Chief |
| Kategori: | prosjektor tilbehør |
| Modell: | SLM258 |
| Pakkevekt: | 2000 g |
| Antall per pakke: | 1 stykker |
| Produktfarge: | Sort |
