Riding Mower Lift
Elevación Del Cortacésped
Soulévateur À Tondeuse Autoportée
CMKGAAV45099000
1-888-331-4569 WWW.CRAFTSMAN.COM
INSTRUCTION MANUAL | GUIDE D’UTILISATION | MANUAL DE INSTRUCTIONES
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
3
ENGLISH
2
ENGLISH

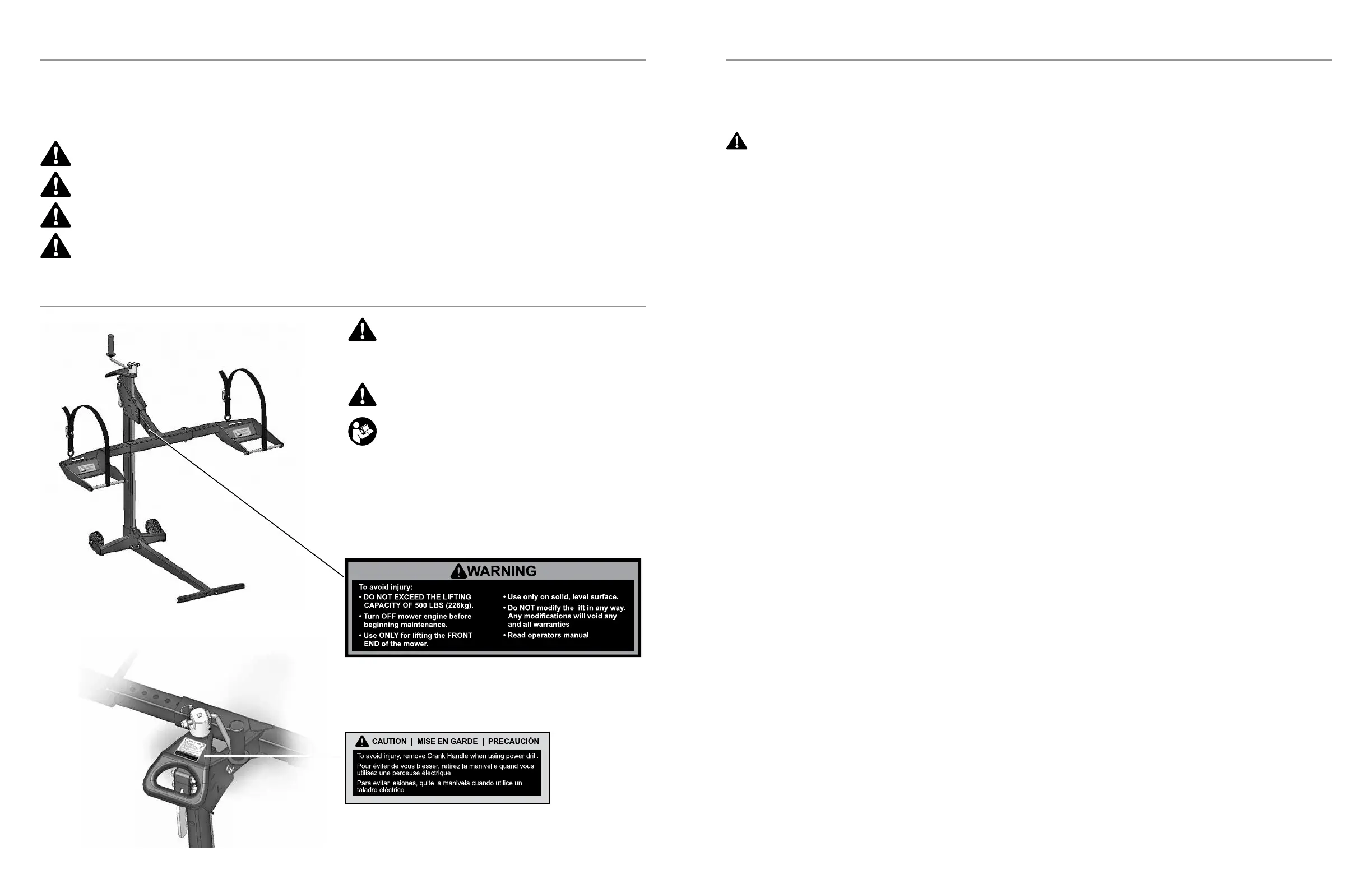

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal
injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates an potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates an potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
Denitions: Safety Alert Symbols and Words
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in serious injury and/or
death.
WARNING: Never modify the product or any part
of it.Damage or personal injury could result.
WARNING: To reduce the risk of injury, read the
instrucion manual.
FREE WARNING LABEL REPLACEMENT: If your warning
labels become illegible or are missing, call 1-888-331-4569
for a free replacement.
IMPORTANT: The mower lift is intended for use with mowers only. Do not exceed 500 lbs. (226 kg) front end weight. It should never be used to service other
types of machinery unless there is an approved accessory fitted for the type of machinery.
Warning and Safety Instructions
Riding Mower Lift
CMKGAAV45099000
WARNING: To reduce the risk of personal injury:
• Read and understand all safety and operating instructions before using the mower lift. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Never allow anyone unfamiliar with the safety or operating instructions to use the lift.
• Follow all safety and servicing instructions provided by the lawn mower’s manufacturer before using the lift.
• Do not modify the lift in any way. Any modifications will void any and all warranties and could compromise your personal safety.
• When using the lift, keep ALL bystanders at a safe distance away from the mower lift.
• The lift must be used on a solid level surface.
• Only lift the FRONT end on the mower.
• Do not lift the front end and back end of the mower at the same time.
• Only use the lift for mowers that are less than 500lbs (226 kg) front end weight and properly fits in the provided wheel pads (ie. 10” to 17”
diameter and within outside wheel measurements of 31.5” to 62.5”).
• Always stop engine and remove key before beginning any work on the mower.
• Always place mower in neutral or disengage the hydraulic drive by following the mower instruction manual.
• Never operate the engine while using the mower lift.
• Do not exceed the lifting capacity of 500 lbs. (226 kg) front end weight.
• If the lift Tower is leaning while lifting or lowering the mower, this indicates an overload condition. REMOVE THE MOWER IMMEDIATELY.
• Tower must be secured in place with the Tower Clevis Pin before using the lift.
• Carrier Locking Handle must be locked into Tower before starting any service on mower.
• Do not remove safety warnings or decals from lift.
• Before each use, always check for any worn, loose or damaged parts on the lift. If any damaged parts are present, do not use the lift.
• Do not climb on mower while it is lifted, being lifted or being lowered.
• No one should be on the mower while it is lifted, being lifted or being lowered.
• After the mower is raised to a working height, always place wheel chocks (not included) behind the back tires of the mower.
• Wheel Pads must be equal distance from the Lift Arm to maintain proper balance.
• Always secure front mower tires with enclosed safety straps.
• Remove all mower attachments before using the lift. Remove all front mower attachments (ballast, bumper or brush guard) that interferes with
handle before using the lift.
• Some mowers which are equipped with a fuel tank vent may spill fuel when lifted. If this happens, run fuel level down in the tank to
prevent spilling.
• Always use proper personal protection equipment.
• Failure to follow these warnings may result in property damage and serious bodily injury or death.
5
ENGLISH
4
ENGLISH

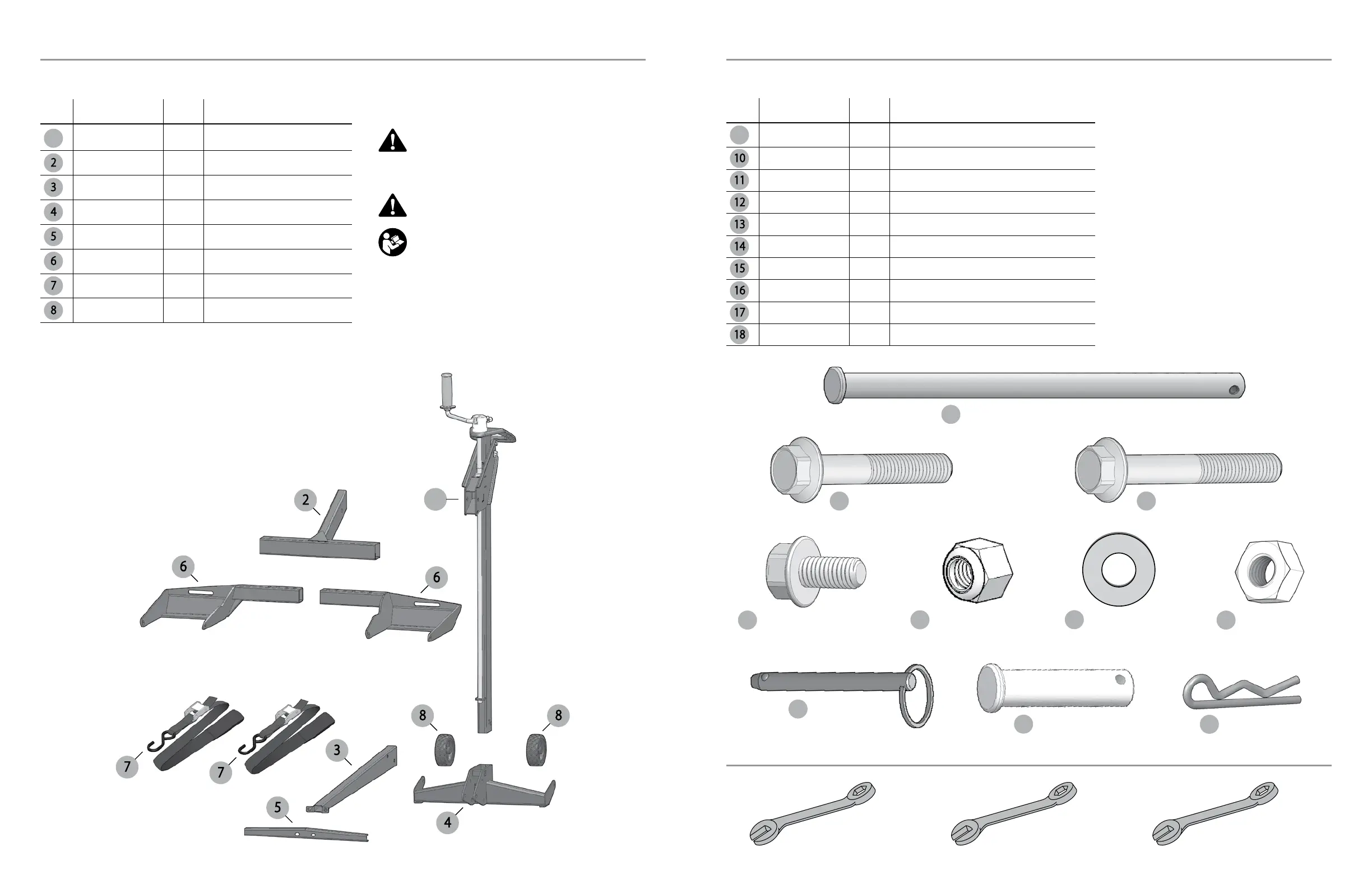

Part
No.
Qty.
Description
Tower Assembly
Lift Arm
Base Floor Tube
Base
Base Support Channel
Wheel Pad
Safety Strap
Wheels
509-0014
509-0026
509-0033
509-0048
509-0036
509-0039
009-0007
010-0013
1
1
1
1
1
2
2
2
Item
No.
1
1
9
Wheel Pad Support Rod
Tools Needed for Assembly (not included)
13mm Wrench
Part
No.
Qty.
Description
2
2
2
2
4
4
2
2
2
4
Item
No.
9
17
Clevis Pin
16
Push Pin
12
Flange Head Bolt
M8-1.25 X 16
13
Nylon Lock Nut
M10-1.5
10
Flange Head Bolt
M10-1.5 X 60
18
Hair Pin
14
Washer M10
15
Nut M10
11
Flange Head Bolt
M10-1.5 X 65
Wheel Pad Support Rod
Flange Head Bolt M10-1.5 X 60
Flange Head Bolt M10-1.5 X 65
Flange Head Bolt M8-1.25 X 16
Nylon Lock Nut – M10-1.5
Washer – M10
Nut – M10
Push Pin
Clevis Pin
Hair Pin
509-0040
003-0005
003-0016
003-0007
002-0001
001-0014
002-0008
001-0013
001-0012
001-0010
Hardware ListParts List
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in serious injury and/or
death.
WARNING: Never modify the product or any part
of it.Damage or personal injury could result.
WARNING: To reduce the risk of injury, read the
instrucion manual.
If you have any questions or comments about this
or any product, call CRAFTSMAN toll free at:
1-888-331-4569.
12mm Wrench17mm Wrench
