AVR UPS SERIES

CPS1500AVR

USER MANUAL

YOUR ULTIMATE ALLY IN POWER

Cyber Power Systems (USA), Inc.

4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com

Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed

power protection, operation, and performance during the lifetime of the product. Please take a

few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration

certiﬁes your product’s warranty, conﬁrms your ownership in the event of a product loss or theft,

and entitles you to free technical support. Register your product now to receive the beneﬁts of

CyberPower ownership.

CAUTION! To prevent the risk of ﬁre or

electric shock, install in a temperature and

humidity controlled indoor area free of

conductive contaminants. (Please see

speciﬁcations for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock,

do not remove the cover except to service the

battery. Turn o and unplug the unit before

servicing the batteries. There are no user ser-

viceable parts inside except for the battery.

CAUTION! Hazardous live parts inside can be

energized by the battery even when the AC

input power is disconnected.

CAUTION! The UPS must be connected to an

AC power outlet with fuse or circuit breaker

protection. Do not plug into

an outlet that is not grounded. If you need

to de-energize this equipment, turn o and

unplug the unit.

CAUTION! To avoid electric shock, turn o the

unit and unplug it from the AC power source

before installing a computer component.

CAUTION! To reduce the risk of ﬁre, connect

only to a circuit provided with 20 amperes

maximum branch circuit over current protec-

tion in accordance with the National Electric

Code, ANSI/NFPA 70.

CAUTION! Not for use in a computer room as

deﬁned in the Standard for the Protection of

Electronic Computer / Data Processing Equip-

ment, ANSI/NFPA 75.

CAUTION! Do not dispose of batteries in a ﬁre.

The batteries may explode.

CAUTION! Do not open or mutilate batteries.

Released electrolyte is harmful to the skin and

eyes. It may be toxic.

DO NOT USE FOR MEDICAL

OR LIFE SUPPORT EQUIPMENT!

CyberPower Systems does not sell products

for life support or medical applications. DO

NOT use in any circumstance that would aect

operation and safety of life support equipment,

any medical applications or patient care.

DO NOT USE WITH OR NEAR AQUARIUMS!

To reduce the risk of ﬁre or electric shock, do

not use with or near an aquarium. Condensa-

tion from the aquarium can cause the unit to

short out.

DO NOT USE THE UPS

ON ANY TRANSPORTATION!

To reduce the risk of ﬁre or electric shock, do

not use the unit on any transportation such

as airplanes or ships. The eect of shock or

vibration caused during transit and the damp

environment can cause the unit to short out.

PRODUCT REGISTRATION

FEATURES

IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS)

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to

unpack, install, or operate your UPS.

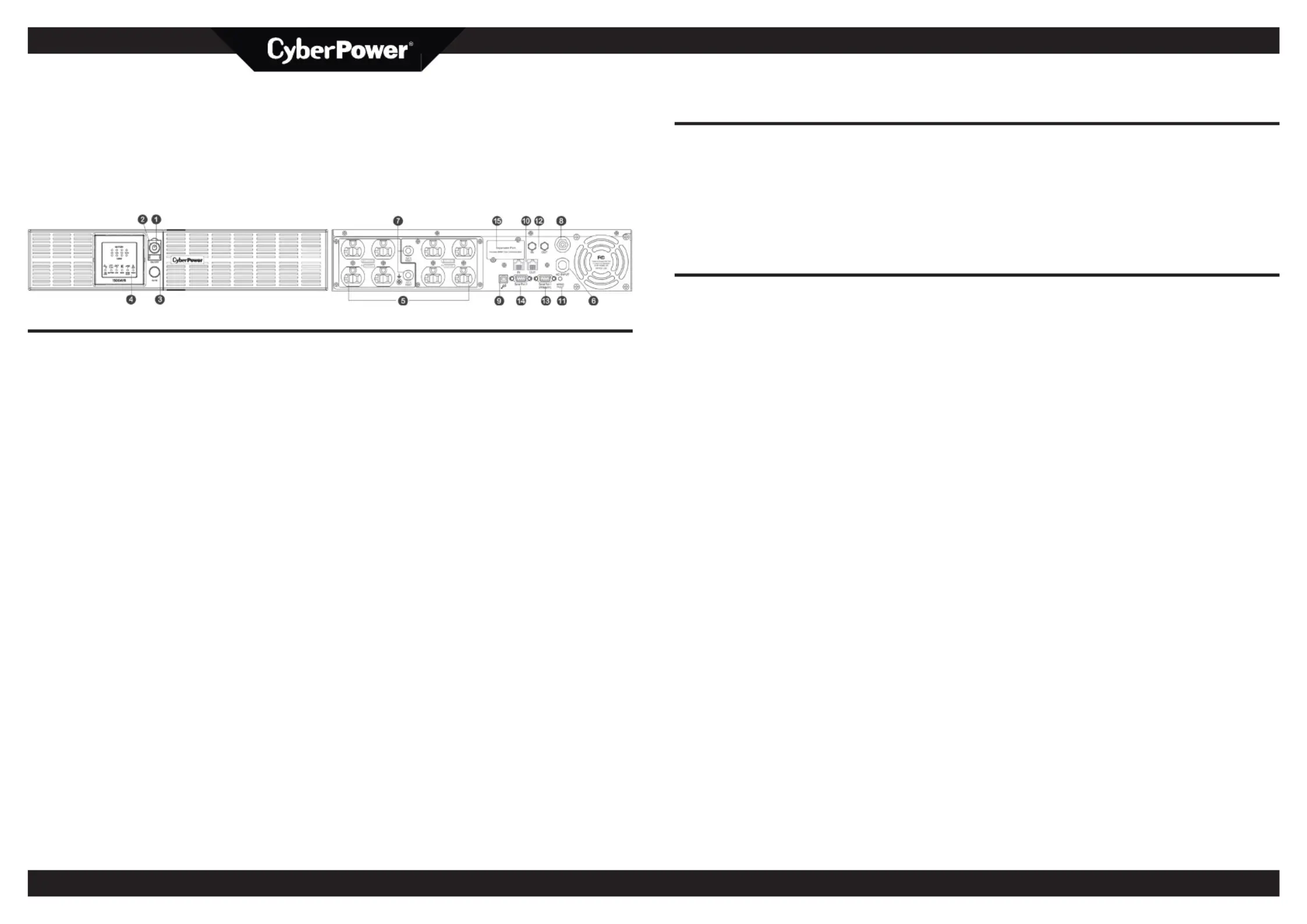

1. Power Switch

Used as the master on/o switch for equipment

connected to the battery power supplied outlets.

2. Power On Indicator

This LED is illuminated when the utility power is

normal and the UPS outlets are providing power,

free of surges and spikes.

3. MUTE Button

Press the button for 3 seconds to disable the audi-

ble alarm (beeps once) or enable (beeps twice) the

audible alarm.

4. LED status Indicators

The LED indicators shows the status of the UPS,

including Battery capacity, Load capacity, On Line,

On Battery, AVR mode, Silent mode, Overload

and Fault. For more information please review the

“Deﬁnitions for Illuminated LED Indicators” section

below.

5. Battery and Surge Protected Outlets

The unit has eight battery powered/surge sup-

pression outlets for connected equipment to

ensure temporary uninterrupted operation of your

equipment during a power failure. (DO NOT plug a

laser printer, paper shredder, copier, space heater,

vacuum, sump pump or other large electrical devic-

es into the “Battery and Surge Protected Outlets”.

The power demands of these devices may overload

and damage the unit.)

6. AC Input Power Cord

Heavy-duty, extra long power cord.

7. Output Circuit Breaker

Resettable circuit breakers provide output optimal

overload protection.

8. Input Circuit Breaker

Resettable circuit breakers provide input optimal

overload protection.

9. USB Port

The USB port allows connection and communica-

tion between the USB port on the computer and

the UPS unit.

10. Communication Protection Ports

Communication protection ports will protect any

standard modem, fax, telephone line, network or

Ethernet connection (RJ11/RJ45).

11. Wiring Fault Indicator (red)

This LED indicator will illuminate to warn the user

that a wiring problem exists, such as bad ground,

missing ground or reversed wiring. If this is illu-

minated, disconnect all electrical equipment from

the outlet and have an electrician verify the outlet

is properly wired. The unit will not provide surge

protection without being plugged into a grounded

and properly wired wall outlet.

12. Coax/Cable/DSS Surge Protection

The Coax/Cable/DSS surge protection ports will

protect any cable modem, CATV converter, or DSS

receiver.

13. Serial Port I (Primary)

The serial port allows connection and communica-

tion between the UPS and the computer.

14. Serial Port II (Dry Contact)

Dry contact produces information for equipment

that can utilize dry contact signals.

15. Expansion Port

Remove the cover panel to install an optional RM-

CARD provides remote monitoring and manage-

ment of your UPS over a network.

INSTALLING YOUR UPS SYSTEM INSTALLING YOUR UPS SYSTEM - continued

INTRODUCTION

Thank you for selecting a CyberPower Systems

UPS product. This UPS is designed to provide

unsurpassed power protection, operation and

performance during the lifetime of the product.

UNPACKING

Inspect the UPS upon receipt. The box should

contain the following:

(a) UPS unit (b) User’s manual (c) Rack mount

brackets (d)Telephone cable (e) PowerPanel®

Business software Download Card (f) Serial in-

terface cable (DB-9) (g) USB A+B type cable (h)

Warranty registration card

*PowerPanel® Business software is available as

a free download at: www.CyberPowerSystems.

com/products/software.

OVERVIEW

The CPS1500AVR UPS provides complete power

protection from utility power that isn’t always

consistent. The CPS1500AVR features surge pro-

tection against power surges and maintenance

free batteries for long lasting battery backup

during power outages. In addition to ensuring

consistent power to your connected devices,

the CPS1500AVR also includes software that will

automatically shutdown your computer system

during a utility power loss.

AUTOMATIC VOLTAGE REGULATOR

The CPS1500AVR stabilizes inconsistent utility

power voltage to nomi-

nal levels that are safe for

equipment. Inconsistent util-

ity power may be damaging

to important data ﬁles and

hardware, but with Auto-

matic Voltage Regulation

(AVR), damaging voltage

levels are corrected to safe levels. AVR automat-

ically increases low utility power to a consistent

and safe 110/120 volts.

DETERMINE THE POWER REQUIREMENTS OF

YOUR EQUIPMENT

1. Ensure that the equipment plugged into the

outlets does not exceed the UPS unit’s rated

capacity (1500VA/900W for CPS1500AVR).

If the rated capacities of the unit are ex-

ceeded, an overload condition may occur

and cause the UPS unit to shut down or the

circuit breaker to trip.

2. There are many factors that can aect the

amount of power that your connected

equipment will require. It is suggested that

the load placed on the battery outlets does

not exceed 80% of the unit’s capacity.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may

be used immediately

upon receipt. How-

ever, to ensure the

battery’s maximum

charge capacity, it

is recommended

that you charge the

battery for at least

8 hours. Your UPS

is equipped with an auto-charge feature.

When the UPS is plugged into an AC outlet,

the battery will automatically charge wheth-

er the UPS is turned on or o.

2. With the UPS unit turned o and un-

plugged, connect your computer, monitor,

and any other peripherals requiring battery

backup into the battery power supplied

outlets. DO NOT plug a laser printer, paper

shredder, copier, space heater, vacuum,

sump pump or other large electrical devic-

es into the “Battery and Surge Protected

Outlets”. The power demands of these de-

vices may overload and damage the unit.

3. To protect a fax, phone

or modem, connect

a telephone cable or

network cable from the

wall jack outlet to the IN

jack of the UPS. Connect a telephone cable

or network cable from the OUT jack of the

UPS to a fax machine, telephone, modem, or

network device.

4. Plug the UPS into a 2

pole, 3 wire grounded

receptacle (wall out-

let). Make sure the wall

branch outlet is pro-

tected by a fuse or circuit breaker and does

not service equipment with large electrical

demands (e.g. air conditioner, copier, etc…).

The warranty prohibits the use of extension

cords, outlet strips, and surge strips.

5. Press the power switch to turn the unit on.

The Power On indicator light will illuminate

and the unit will “beep”. If an overload is

detected, an audible alarm will sound and

the unit will emit one long beep. To correct

this, turn the UPS o and unplug at least

one piece of equipment from the battery

power supplied outlets. Make sure the cir-

cuit breaker is depressed and then turn the

UPS on.

6. To maintain optimal battery charge, leave

the UPS plugged into an AC outlet at all

times.

7. To store the UPS for an extended period,

cover it and store with the battery fully

charged. While in storage, recharge the bat-

tery every three months to ensure battery

life.

8. Ensure the wall outlet and UPS are locat-

ed near the equipment being attached for

proper accessibility.

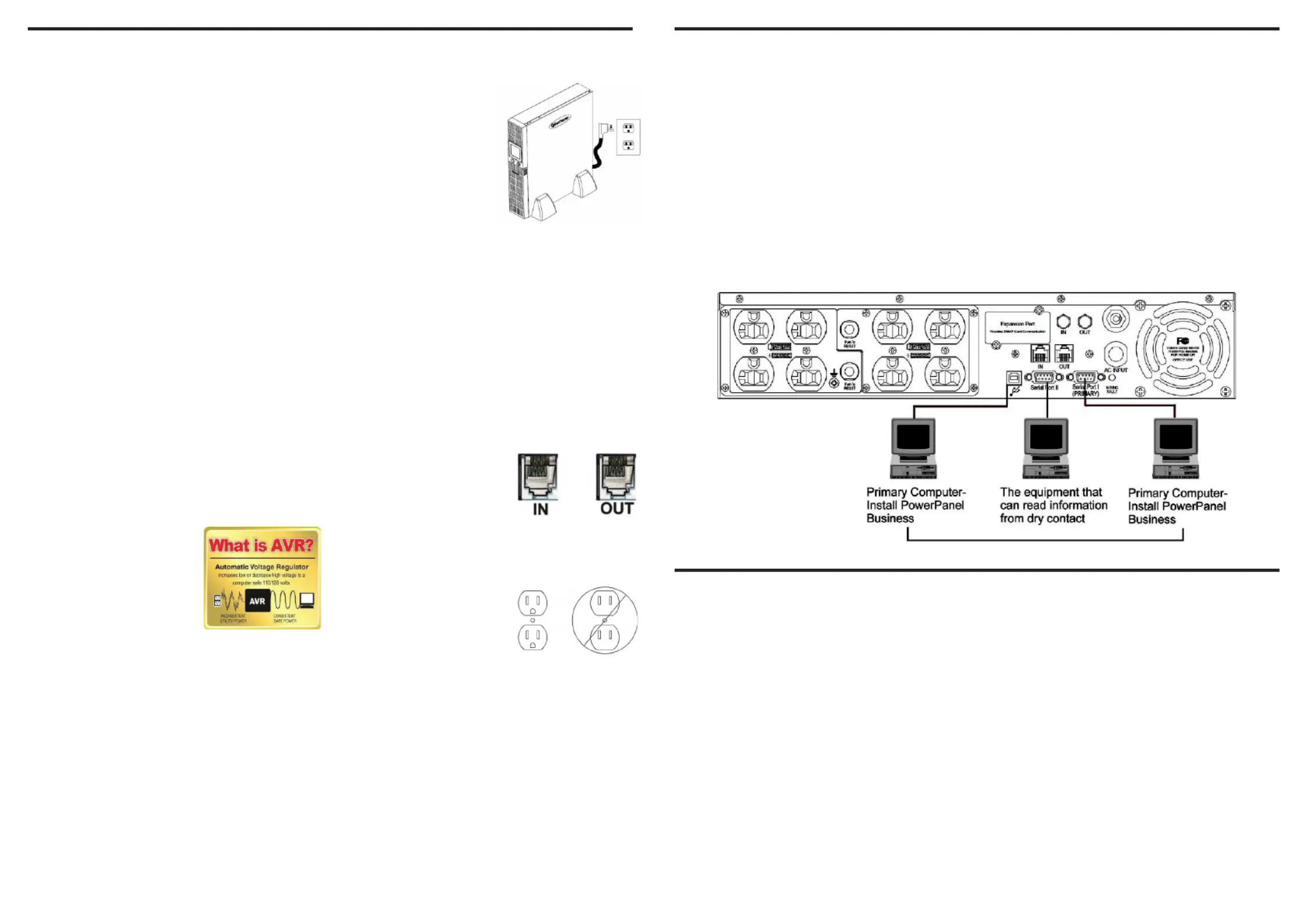

9. The UPS provides one serial port, one dry

contact port and one USB port to allow con-

nection and communication between the

UPS and computers or equipment. The USB

port and Serial Port l (Primary) allow the

shutdown of computer systems which are

running PowerPanel® Business but only one

of these ports should be used at a time with

the USB port taking priority. When there is

a power failure, the computer connected to

either Serial Port I or the USB port will start

to shut down after a user controlled delay

based on the settings given to the software.

Serial port ll can be used to provide some

basic information via a dry contact setup for

equipment with that option.

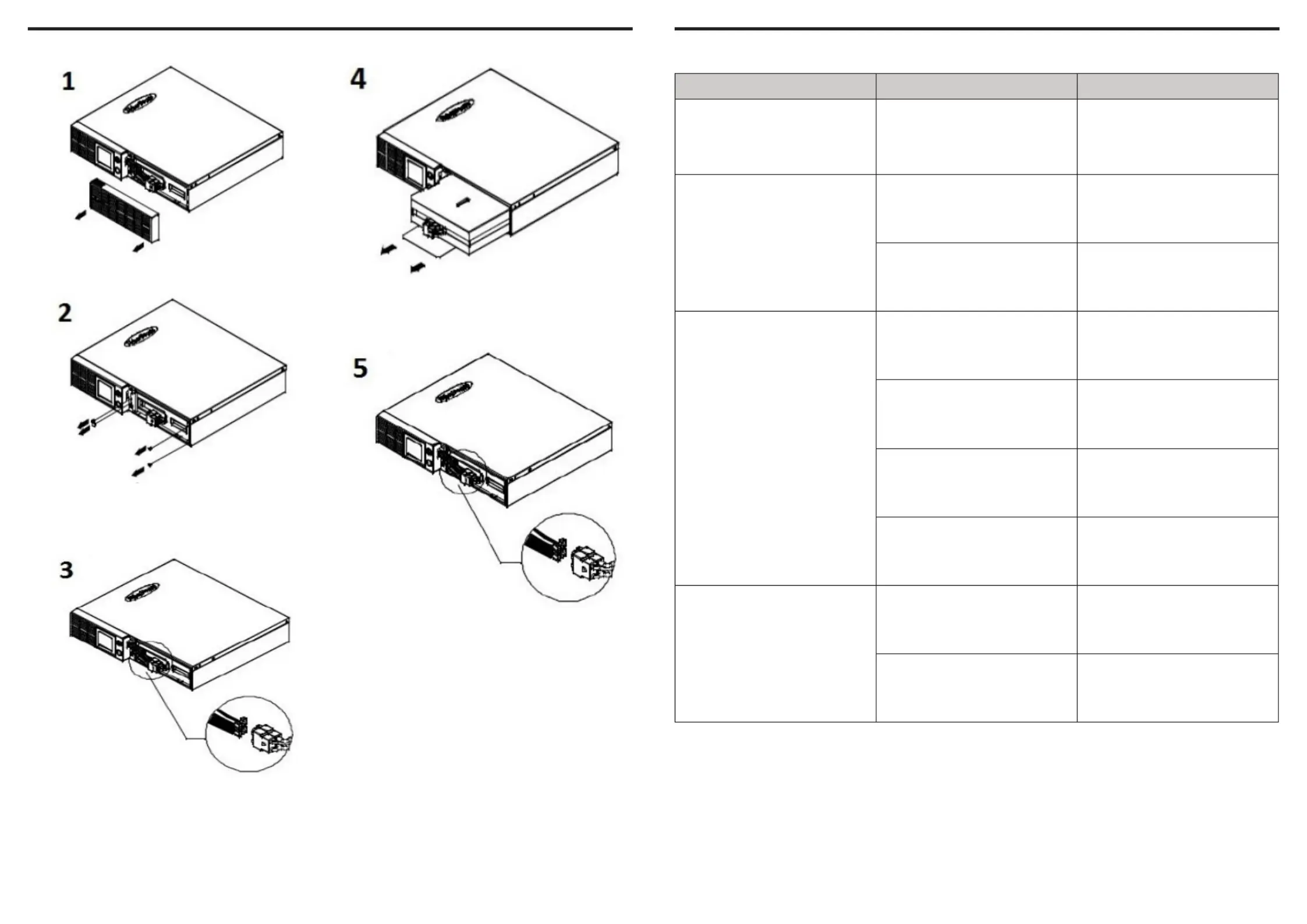

REPLACING THE BATTERY

Replacement of batteries located in an OPERA-

TOR ACCESS AREA.

1. When replacing batteries, replace with

the same number of the following bat-

tery: CyberPower / RB1270X4F for the

CPS1500AVR. Contact CyberPower Systems

about replacement batteries.

2. Risk of Energy Hazard, 24 V, CAUTION!

maximum 18 Ampere-hour battery. Before

replacing batteries, remove conductive

jewelry such as chains, wrist watches, and

rings. High energy conducted through these

materials could cause severe burns.

3. CAUTION! Do not dispose of batteries in a

ﬁre. The batteries may explode.

4. CAUTION! Do not open or mutilate batter-

ies. Released material is harmful to the skin

and eyes. It may be toxic.

5. CAUTION! Risk of electrical shock, refer

to instruction manual before replacing the

battery.

6. A battery can present a risk of CAUTION!

electrical shock and high short circuit cur-

rent. The following precautions should be

observed when working on batteries: (1) Re-

move watches rings, or other metal objects.

(2) Use tools with insulated handles

CAUTION - RISK OF EXPLOSION IF BATTERY

IS REPLACED BY AN INCORRECT TYPE. DIS-

POSE OF USED BATTERIES ACCORDING

TO LOCAL REGULATIONS.

1. Remove the right side front panel.

2. Remove four screws from battery compart-

ment cover and remove the cover complete-

ly o the unit.

3. Disconnect the black and red cable

4. Insert the new battery pack. Assemble the

screws, cover, cable and front panel in the

reverse sequence of above steps.

5. Install the replacement batteries by con-

necting the black wire to the same color

wires from the battery pack. Recharge the

unit for at least 8 hours to ensure the UPS

performs expected runtime.

REMINDER: Batteries are considered HAZARD-

OUS WASTE and must be disposed of prop-

erly. Most retailers that sell lead-acid batteries

collect used batteries for recycling, as required

by local regulations.

Additional troubleshooting information can be found at “Support” at www.CyberPowerSystems.com

TROUBLESHOOTING

REPLACING THE BATTERY - continued

Problem Possible Cause Solution

Full-time surge protection outlets

stop providing power to equip-

ment.

Circuit breaker has tripped due to

an overload.

Turn the UPS off and unplug at

least one piece of equipment.

Wait 10 seconds, reset the circuit

breaker by depressing the button,

and then turn the UPS on.

The UPS does not perform

expected runtime.

Battery not fully charged.

Recharge the battery by leaving

the UPS plugged in.

Battery is worn out.

Contact CyberPower Systems

about replacement batteries.

The UPS will not turn on.

The on/off switch is designed to

prevent damage by rapidly turn-

ing it off and on.

Turn the UPS off. Wait 10 seconds

and then turn the UPS on.

The unit is not connected to an

AC outlet.

The unit must be connected to a

120V 60Hz outlet.

The battery is worn out.

Contact CyberPower Systems

about replacement batteries.

Mechanical problem.

Please contact CyberPower

Systems.

PowerPanel® Business is inactive.

The USB cable is not connected.

Connect the USB cable to the UPS

unit and an open USB port on the

back of the computer.

The unit is not providing battery

power.

Shutdown your computer and

turn the UPS off. Wait 10 seconds

and turn the UPS on. This should

reset the unit.

Produkspesifikasjoner

Merke:	CyberPower
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	CPS1500AVR
Vekt:	26308 g
Antall USB 2.0-porter:	1
Sertifisering:	UL1778, cUL, FCC DOC Class B
Utgangseffekt:	950 W
Vekt (imperial):	58 Ibs
Dimensjoner (B x D x H):	438.15 x 400 x 89 mm
Batteriteknologi:	Forseglet blysyre (VRLA)
Batteriladetid:	8 timer
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	32 - 95 °F
Inngangsfrekvens:	50/60 Hz
Kommunikasjonsserieporter:	2
Relativ luftfuktighet under drift (H-H):	0 - 95
Oppdateringsresponstid:	4 ms
Innput-forbindelsestype:	NEMA 5-15P
Hørbare alarmer:	Ja
Dimensjoner (B x D x H) (imperisk):	17.25 x 15.75 x 3.5 "
Strømstøt energivurdering:	1.800 J
Output strømkapasitet (VA):	1.5 kVA
Modem (RJ-11)-porter:	1
Normal backuptid ved halv belastning:	18 min
Normal backuptid ved full belastning:	6 min
Utbyttbare batteripatroner:	BB - BP7-12
Output-forbindelser:	NEMA 5-15R
