System air conditioner
OPERATION MANUAL
RTSYQ10PAY1
RTSYQ14PAY1
RTSYQ16PAY1
RTSYQ20PAY1
English
Norsk
Svenska
Deutsch
Français
Operation manual
VRV
III-C
System air conditioner
Betriebsanweisung
VRV
III-C
System Klimaanlage
Manuel d’utilisation
Conditionneur d’air VRV
III-C
System
Рóêоводство по спл êэóатации
Кондиционер системы VRV
III-C
Bruksanvisning
VRV
III-C
System Klimaanlegg
Bruksanvisning
VRV
III-C
System luftkonditionerare
Thank you for purchasing this Daikin air conditioner.
Carefully read this operation manual before using the
air conditioner. It will tell you how to use the unit prop-
erly and help you if any trouble occurs. After reading
the manual, keep it in your custody for future reference.
See also the operation manual included with the indoor
unit for details on the indoor unit.
Store the operation manual included with the indoor
unit together with this operation manual in a safe place.
After receiving the warranty card from the dealer, store
it in a safe place.
Wir möchten uns bei Ihnen dafür bedanken, daß Sie
sich für ein Klimagerät von Daikin entschieden haben.
Lesen Sie sich diese Bedienungsanweisung sorgfältig
durch, bevor Sie das Klimagerät in Betrieb nehmen.
Hier erfahren Sie, wie Sie das Gerät korrekt betreiben.
Zudem hilft sie Ihnen, falls Störungen auftreten sollten.
Bewahren Sie die Anweisung gut auf, wenn Sie sie
durchgelesen haben, damit Sie auch später noch darin
nachschlagen können.
Schlagen Sie bezüglich Einzelheiten über das
Innengerät auch in der Bedienungsanleitung des
Innengerätes nach.
Bewahren Sie die Bedienungsanleitung des
Innengerätes zusammen mit dieser Bedienungsanlei-
tung an einem sicheren Ort auf.
Nachdem Sie die Garantiekarte von Ihrem Händler erh-
alten haben, bewahren Sie sie an einem sicheren Ort
auf.
Nous vous remercions d’avoir acheté ce climatiseur
Daikin. Lisez soigneusement ce manuel d’utilisation
avant d’utiliser le climatiseur. Il vous enseignera à uti-
liser correctement l’unité et vous aidera en cas de
panne. Après avoir lu le manuel, rangez-le en vue
d’une utilisation ultérieure.
Pour plus de détails concernant l’unité intérieure,
reportez-vous également au manuel d’utilisation
accompagnant l’unité intérieure.
Conservez le manuel d’utilisation accompagnant l’unité
intérieure avec ce manuel d’utilisation dans un endroit
sûr.
Après avoir reçu la carte de garantie du revendeur, con-
servez-la dans un endroit sûr.
Спасибо за поêóп оêó данноã êондиционера
фирмы Daikin. До начала работы с
ê ó ондиционером внимательно из чите данное
р эóêоводство по êсплóатации. В нем излаãаются
правила надлежащеã о пользования óстройством
и приводятся реêомендации пользователю по
поисêó и óстранению неисправностей. После
изóчения рóêоводства сохраните ã е о для
обращений ó óв б д щем.
Подробная информация по внóтреннемó блоêó
приведена в рóêоводстве по êэ сплóатации,
прилаãаемомó ê внóтреннемó блоêó.
Храните рóêоводство по êэ сплóатации,
прилаãаемое ê внóтреннемó блоêó, вместе с
данным рóêоводством по êэ сплóатации в
надежном месте.
Полóчив талон ãарантийный от дилера спрячьте,
е о вã надежное место.
Takk for at du kjøpte dette Daikin-klimaanlegget. Les
denne bruksanvisningen nøye før du tar klimaanlegget i
bruk. Den beskriver hvordan du skal bruke denne
enheten på riktig måte, og vil være til hjelp hvis det
skulle oppstå noen problemer senere. Etter å ha lest
bruksanvisningen, ta vare på den for eventuell fremtidig
bruk. Les også bruksanvisningen som følger med
innendørsenheten for detaljer angående innendørsen-
heten.
Ta vare på bruksanvisningen som følger med
innendørsenheten sammen med denne bruksanvisnin-
gen på et trygt sted. Etter å ha fått et garantikort fra
butikken, oppbevar det på et trygt sted.
Tack för inköpet av denna Daikin luftkonditionerare. Läs
denna bruksanvisning noggrant innan luftkonditioner-
aren tas i bruk. Däri finns anvisningar för hur enheten
används på rätt sätt och hjälp om något problem skulle
uppstå.
Efter att ha läst igenom bruksanvisningen, spara den
som referens för framtiden.
Se även bruksanvisningen som medföljde inomhusen-
heten angående detaljer om inomhusenheten.
Förvara bruksanvisningen som medföljde inomhusen-
heten tillsammans med denna bruksanvisning på ett
säkert ställe.
Efter att ha mottagit garantikortet från återförsäljaren,
ska det förvaras på ett säkert ställe.

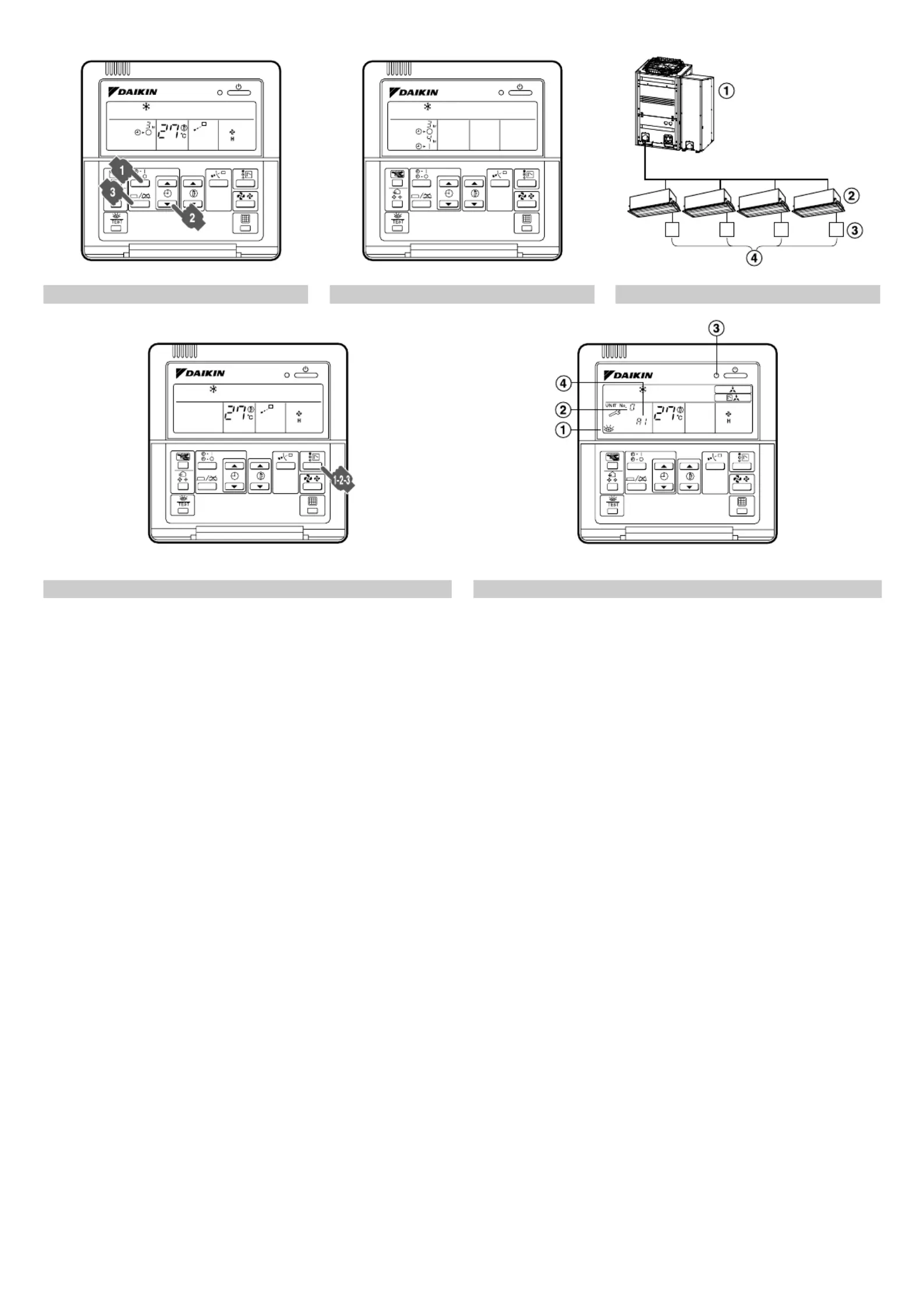

2
1
3 4 5
6-1 6-2
Ceiling Suspended
Wall Mounted
Double-flow Multi-flow Corner
Ceiling Suspended
Wall Mounted
Double-flow Multi-flow Corner
7 8 9
10 11
English 1
RTSYQ10PAY1
RTSYQ14PAY1
RTSYQ16PAY1
RTSYQ20PAY1
VRV
III
-C
System air conditioner
Operation manual
CONTENTS
1. SAFETY PRECAUTIONS ............................... 1
2. SPECIFICATIONS........................................... 4
3. WHAT TO DO BEFORE OPERATION ............ 4
4. REMOTE CONTROLLER: NAME AND
FUNCTION OF EACH SWITCH AND
DISPLAY ......................................................... 4
5. OPERATION RANGE...................................... 5
6. OPERATION PROCEDURE ........................... 6
7. OPTIMUM OPERATION ................................. 9
8. SEASONAL MAINTENANCE.......................... 9
9. FOLLOWING SYMPTOMS ARE NOT AIR
CONDITIONER TROUBLES......................... 10
10. TROUBLE SHOOTING ................................. 11
The English text is the original instruction. Other lan-
guages are translations of the original instructions.
1. SAFETY PRECAUTIONS
To gain full advantage of the air conditioner’s func-
tions and to avoid malfunction due to mishandling,
please read this operation manual carefully before
use.
This air conditioner is classified under “appliances
not accessible to the general public”.
The precautions described herein are classified
as WARNING and CAUTION. They both contain
important information regarding safety. Be sure
to observe all precautions without fail.
WARNING ....... Failure to follow these instruc-
tions properly may result in per-
sonal injury or loss of life.
CAUTION ........Failure to observe these
instructions properly may result
in property damage or personal
injury, which may be serious
depending on the circum-
stances.
After reading, keep this manual in a convenient
place so that you can refer to it whenever neces-
sary. If the equipment is transferred to a new
user, be sure also to hand over the manual.
WARNING
Be aware that prolonged, direct exposure to
cool or warm air from the air conditioner, or
to air that is too cool or too warm can be
harmful to your physical condition and
health.
When the air conditioner is malfunctioning
(giving off a burning odour, etc.) turn off the
power to the unit and contact your local dealer.
Continued operation under such circumstances
may result in a failure, electric shocks or fire haz-
ards.
Consult your local dealer about installation work.
Doing the work yourself may result in water leak-
age, electric shocks or fire hazards.
Consult your local dealer regarding modifica-
tion, repair and maintenance of the air condi-
tioner.
Improper workmanship may result in water leak-
age, electric shocks or fire hazards.
Do not place objects, including rods, your fin-
gers, etc., in the air inlet or outlet.
Injury may result due to contact with the air condi-
tioner’s highspeed fan blades.
Beware of fire in case of refrigerant leakage.
If the air conditioner is not operating correctly, i.e.
not generating cool or warm air, refrigerant leak-
age could be the cause. Consult your dealer for
assistance. The refrigerant used for the air condi-
tioner is safe and normally does not leak.
However, if the refrigerant leaks and gets in con-
tact with a naked burner, heater or cooker, it may
generate hazardous compounds. Turn off the air
conditioner and call the dealer. Make sure to turn
on the air conditioner after the qualified service
person confirms that the leakage is repaired.
Consult your local dealer regarding what to do
in case of refrigerant leakage.
When the air conditioner is to be installed in a
small room, it is necessary to take proper mea-
sures so that the amount of any leaked refrigerant
does not exceed the concentration limit in the
event of a leakage. Otherwise, this may lead to an
accident due to oxygen depletion.
Contact professional personnel about attach-
ment of accessories and be sure to use only
accessories specified by the manufacturer.
If a defect results from your own workmanship, it
may result in water leaks, electric shock or fire.
Consult your local dealer regarding relocation
and reinstallation of the air conditioner.
Improper installation work may result in leakage,
electric shocks or fire hazards.
2 English
Be sure to use fuses with the correct ampere
reading.
Do not use improper fuses, copper or other wires
as a substitute, as this may result in electric shock,
fire, injury or damage to the unit.
Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may
result in electric shocks or fire.
Be sure to earth the unit.
Do not earth the unit to a utility pipe, lightning con-
ductor or telephone earth lead. Imperfect earthing
may result in electric shocks or fire.
A high surge current from lightning or other
sources may cause damage to the air conditioner.
Consult the dealer if the air conditioner sub-
merges owing to a natural disaster, such as a
flood or typhoon.
Do not operate the air conditioner in that case, or
otherwise a malfunction, electric shock, or fire may
result.
Start or stop the air conditioner with the
remote controller. Never use the power circuit
breaker for this purpose.
Otherwise, it may cause fire or water leakage.
Furthermore, if an automatic reset control is pro-
vided against power failure and the power is recov-
ered, the fan will rotate suddenly and may cause
injury.
Do not use the product in the atmosphere con-
taminated with oil vapor, such as cooking oil or
machine oil vapor.
Oil vapor may cause crack damage, electric
shocks, or fire.
Do not use the product in places with exces-
sive oily smoke, such as cooking rooms, or in
places with flammable gas, corrosive gas, or
metal dust.
Using the product in such places may cause fire or
product failures.
Do not use flammable materials (e.g., hair-
spray or insecticide) near the product.
Do not clean the product with organic solvents
such as paint thinner.
The use of organic solvents may cause crack dam-
age to the product, electric shocks, or fire.
Be sure to use a dedicated power supply for
the air conditioner.
The use of any other power supply may cause
heat generation, fire, or product failures.
Consult your dealer regarding cleaning the
inside of the air conditioner.
Improper cleaning may cause breakage of plastic
parts, water leakage and other damage as well as
electric shocks.
Do not operate the air conditioner when using
a room fumigation - type insecticide.
Failure to observe could cause the chemicals to
become deposited in the unit, which could endan-
ger the health of those who are hypersensitive to
chemicals.
CAUTION
Do not use the air conditioner for purposes
other than those for which it is intended.
Do not use the air conditioner for cooling precision
instruments, food, plants, animals or works of art
as this may adversely affect the performance,
quality and/or longevity of the object concerned.
Do not remove the outdoor unit’s fan guard.
The guard protects against the unit’s high speed
fan, which may cause injury.
To avoid oxygen deficiency, ensure that the
room is adequately ventilated if equipment
such as a burner is used together with the air
conditioner.
After prolonged use, check the unit stand and
its mounts for damage.
If left in a damaged condition, the unit may fall and
cause injury.
Do not place flammable sprays or operate
spray containers near the unit as this may
result in fire.
Do not put flammable containers, such as
spray cans, within 1 m from the air outlet.
The containers may explode because the warm air
output of the indoor or outdoor unit will affect them.
Before cleaning, be sure to stop unit operation,
turn the power circuit breaker off or remove
the power cord.
Otherwise, an electric shock and injury may result.
Do not wipe the controller operation panel with
benzine, thinner, chemical dustcloth, etc.
The panel may get discolored or the coating
peeled off. If it is heavily dirty, soak a cloth in
water-diluted neutral detergent, squeeze it well
and wipe the panel clean. And wipe it with another
dry cloth.
To avoid electric shocks, do not operate with
wet hands.
Do not place objects that are susceptible to
moisture directly beneath the indoor or out-
door units.
Under certain conditions, condensation on the
main unit or refrigerant pipes, air filter dirt or drain
blockage may cause dripping, resulting in fouling
or failure of the object concerned.
Do not place appliances that produce naked
flames in places exposed to the air flow from
the unit as this may impair combustion of the
burner.
Do not place heaters directly below the unit, as
resulting heat can cause deformation.
Do not allow a child to mount on the outdoor
unit or avoid placing any object on it.
Falling or tumbling may result in injury.
English 3
Be sure that children, plants or animals are not
exposed directly to airflow from the unit, as
adverse effects may ensue.
Do not wash the air conditioner or the remote
controller with water, as this may result in elec-
tric shocks or fire.
Do not place water containers (flower vases,
etc.) on the unit, as this may result in electric
shocks or fire.
Do not install the air conditioner at any place
where there is a danger of flammable gas leak-
age.
In the event of a gas leakage, build-up of gas near
the air conditioner may result in fire hazards.
Carry out drain piping properly to ensure com-
plete drainage.
If drain piping is not carried out properly, drain will
not flow out. Then, dirt and debris may be accumu-
lated in the drain pipe and may cause water leak-
age. If it occurs, stop the air conditioner and call
your dealer for assistance.
The appliance is not intended for use by unat-
tended young children or persons who are
incompetent to operate air conditioners.
It may result in injury or electric shock.
Children should be watched so that they do
not play with the unit or its remote controller.
Accidental operation by a child may result in injury
or electric shock.
To avoid injury, do not touch the air inlet or alu-
minium fins of the unit.
Do not place objects in direct proximity of the
outdoor unit and do not let leaves and other
debris accumulate around the unit.
Leaves are a hotbed for small animals which can
enter the unit. Once in the unit, such animals can
cause malfunctions, smoke or fire when making
contact with electrical parts.
Do not block air inlets nor outlets.
Impaired airflow may result in insufficient perfor-
mance or trouble.
Do not let children play on or around the out-
door unit.
If they touch the unit carelessly, injury may be
caused.
Turn off the power when the unit is not to be
used for long periods of time.
Otherwise, the unit may get hot or catch on fire
due to dust accumulation.
Never touch the internal parts of the remote
controller.
Do not remove the front panel. Touching certain
internal parts will cause electric shocks and dam-
age to the unit. Please consult your dealer about
checking and adjustment of internal parts.
Do not leave the remote controller wherever
there is a risk of wetting.
If water gets into the remote controller there is a
risk of electrical leakage and damage to electronic
components.
Never press the button of the remote controller
with a hard, pointed object.
The remote controller may be damaged.
Watch your steps at the time of air filter clean-
ing or inspection.
High-place work is required, to which utmost
attention must be paid.
If the scaffold is unstable, you may fall or topple
down, thus causing injury.
[Place of Installation]
• Make sure that the air conditioner is located in
a sufficiently ventilated place not surrounded
by obstacles.
• Do not use the air conditioner in the following
places.
a. Places with a mist of mineral oil, such as cutting
oil.
b. Locations such as coastal areas where there is
a lot of salt in the air.
c. Locations such as hot springs resorts where
there is a lot of sulfur in the air.
d. Locations such as factories where the power
voltage varies a lot.
e. In cars, boats, and other vehicles.
f. Locations such as kitchens where oil may splat-
ter or there is steam in the air.
g. Locations where equipment that produces elec-
tromagnetic waves is found.
h. Places with an acid or alkaline mist.
i. Places where fallen leaves are accumulated or
weeds grow close together.
• Take snow protection measures.
Contact your dealer for the details of snow protec-
tion measures, such as the use of a snow protec-
tion hood.
[Electrical Work]
• Do not attempt to conduct electrical work or
grounding work unless you are licensed to do so.
Consult with your dealer for electrical work and
grounding work.
• Use a dedicated circuit for the air conditioner.
[Pay Attention to Operating Sound]
• Be sure to use the following places.
a. Places that can sufficiently withstand the weight
of the air conditioner and suppress the operat-
ing sound and vibration of the air conditioner.
b. Places where warm air from the air outlet of the
outdoor unit or the operating sound of the out-
door unit does not annoy neighbors.
English 5
6.
Display
“ ”
(set temperature)
This display shows the temperature you have set.
7.
Display “ ” “ ” “ ” “ ” (operation
mode)
This display shows the current operation mode.
8.
Display
“ ”
(programmed time)
This display shows the programmed time of the
system start or stop.
9.
Display
“ ”
(inspection/test operation)
When the inspection/test operation button is
pressed, the display shows the mode in which
the system actually is.
10.
Display
“ ”
(under centralized control)
When this display shows, the system is under
centralized control. (This is not a standard spec-
ification.)
11.
Display
“ ”
(fan speed)
This display shows the fan speed you have
selected.
12.
Display
“ ”
(time to clean air filter)
Refer to the operation manual of indoor unit.
13.
Display
“ ”
(defrost/hot start)
Refer to the “EXPLANATION OF HEATING
OPERATION” in chapter 6-1.
14.
Timer mode start/stop button
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
15.
Timer on/off button
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
16.
Inspection/test operation button
This button is only used by qualified service
persons for maintenance purposes.
17.
Programming time button
Use this button for setting the programming start
and/or stop time.
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
18.
Temperature setting button
Use this button for setting the desired temperature.
Refer to the chapter “6-1 COOLING, HEATING
AND FAN ONLY OPERATION”.
19.
Filter sign reset button
Refer to the operation manual of indoor unit.
20.
Fan speed control button
Press this button to select the fan speed of your
preference.
21.
Operation mode selector button
• Press this button to select the operation mode of
your preference.
• Press this button to designate the master remote
controller.
Refer to the chapter “6-5 SETTING THE MAS-
TER REMOTE CONTROLLER”.
22.
Airflow direction adjust button
Refer to the chapter “6-3 ADJUSTING THE AIR-
FLOW DIRECTION”.
23.
Thermistor
It sense the room temperature around the
remote controller.
24.
These button are used when the ventilation unit
are installed (These are optional accessories)
Refer to the operation manual of the ventilation unit.
NOTE
•
Do not place the controller exposed to direct sunlight.
The LCD display may get discolored, failing to dis-
play the data.
• Never pull or twist the electric wire of a remote
controller.
It may cause the unit to malfunction.
• Do not allow sharp or hard items to touch the but-
tons of the remote controller.
The remote controller may be damaged or break-
down may occur.
• In contradistinction to actual operating situations,
the display on figure 2 shows all possible indica-
tions.
• Figure 2 shows the remote controller which is
opened the cover.
• For FXS, FXM, FXL and FXN, the airflow direction
ajust button (22) is not available and the display
(4) shows “NOT AVAILABLE” when pressed.
5. OPERATION RANGE
Use the system in the following temperature and
humidity ranges for safe and effective operation.
NOTE
• Cooling operation:
If the air conditioner is operated continuously
while the indoor temperature is 21°C or below and
the humidity is 80% or over, the interiors of the
indoor units may cause icing and water leakage
may result.
• Heating operation:
The air conditioner may stop operating for the pro-
tection of the machine if the outdoor temperature
is 21°C or over.
TEST
COOLING HEATING
outdoor temperature
–5°~43°CDB –25°~15.5°CWB
indoor temperature
14°~25°CWB 15°~27°CDB
indoor humidity
≤
80%
–
6 English
6. OPERATION PROCEDURE
• Operation procedure varies according to the com-
bination of outdoor unit and remote controller.
Read the chapter “What to do before operation”.
• To protect the unit, turn on the main power switch
6 hours before operation.
And do not turn off the power supply during the air
conditioning season because of smoothly start
up.
• If the main power supply is turned off during oper-
ation, operation will restart automatically after the
power turns back on again.
6-1 COOLING, HEATING AND FAN ONLY
OPERATION
OPERATING THE SYSTEM (Refer to figure 3)
Press the operation mode selector button sev-
eral times and select the operation mode of
your choice;
“ ”
Cooling operation
“ ”
Heating operation
“ ”
Fan only operation
NOTE
•
The operation mode cannot be changed with
the remote controller whose display shows
“ ” (changeover under control).
Change the operation mode with the remote
controller whose display does not show
“ ”.
• When the display
“ ”
(changeover
under control) flashes, refer to the chapter
“6-5 SETTING THE MASTER REMOTE
CONTROLLER”.
Press the on/off button.
The operation lamp lights up and the system
starts operation.
ADJUSTMENT (Refer to figure 3)
For adjustment the desired temperature, fan
speed and airflow direction (only for the remote
controller BRC1A51: FXC, FXF, FXH, FXK,
FXA), follow the procedure shown below.
Press the temperature setting button and set
the desired temperature.
Each time this button is pressed, the tem-
perature setting rises or lowers 1°C.
NOTE
•
Set the temperature within the operation range.
• The temperature setting is impossible for fan
only operation.
Press the fan speed control button and select
the fan speed of your preference.
NOTE
• For machine protection the system may con-
trol the airflow rate automatically.
• The airflow rate may be adjusted automati-
cally depending on the room temperature or
the fan may stop immediately. This is not a
malfunction.
• It may take sometime for finishing to change
the airflow rate.
This is normal operation.
Press airflow direction adjust button.
Refer to the chapter “6-3 ADJUSTING THE
AIRFLOW DIRECTION” for details.
STOPPING THE SYSTEM (Refer to figure 3)
Press the on/off button once again.
The operation lamp goes off and the system
stops operation.
NOTE
• The fan may keep on running for about
1 minute after the heating operation stops
for removing the heat in the indoor unit.
• Do not turn off the power immediately after
the unit stops.
The system need at least 5 minutes for
residual operation of drain pump device.
Turning off the power immediately will cause
water leak or trouble.
EXPLANATION OF HEATING OPERATION
•
In general, heating operation may take longer to
reach the set temperature than in cooling operation.
We recommend starting the operation which was
used before using timer operation.
• The following operation is performed in order to
prevent the heating capacity from dropping or
cold air from blowing.
Defrost operation
• In heating operation, freezing of the outdoor
unit heat exchanger increases. Heating
capability decreases and the system goes
into defrost operation.
• The airflow will be set to breeze or stop.
• If stopped, the display of the remote control-
ler shows “
”
.
• Once the airflow is set to breeze or stop, the
air conditioner will return to the previous
state in approximately 10 to 15 minutes.
Hot start
• In order to prevent cold air from blowing out
of an indoor unit at the start of heating oper-
ation, the indoor fan is automatically
stopped. The display of the remote controller
shows
“ ”
.
1
2
3
4
5
6
English 7
• The heating capacity drops as the outside tem-
perature falls. If this happens, use another heat-
ing device together with the unit. (When using the
appliances which produce open fire together, ven-
tilate a room constantly.)
Do not place appliances which produce open fire
in places exposed to the airflow from the unit or
under the unit.
•
It takes some time for the room to warm up from
the time the unit is started since the unit is a hot-air
circulatory system to warm the entire room.
• If the hot air rises to the ceiling, leaving the area
above the floor cold, we recommend using the cir-
culator (the indoor fan for circulating air). Contact
your dealer for details.
6-2 PROGRAM DRY OPERATION
(Refer to figure 4)
•
The program dry function deprives the room
of moisture while the air conditioner is in inter-
mittent weak cooling operation so that the
room temperature will not become too low.
• The microcomputer automatically controls
the temperature and fan speed, so these
cannot be set using the remote controller.
• This function is not available if the room tem-
perature is 20°C or lower.
• This function does not controls the humidity.
• FXL and FXN type indoor unit can not oper-
ate program dry operation.
NOTE
• If
“ ”
(Cooling operation) is not displayed, refer
to “6-1 COOLING, HEATING AND FAN ONLY
OPERATION”, and set
“ ”
(Cooling operation).
Unless the air conditioner is set to
“ ”
(Cooling
operation), the air conditioner cannot be switched
over to
“ ”
(program dry operation).
Press the operation mode selector button sev-
eral times and select
“ ”
(program dry oper-
ation).
Press the on/off button.
The operation lamp lights up and the system
starts operation.
Press the airflow direction adjust button (only
for FXC, FXF, FXH, FXK, FXA). Refer to the
chapter “6-3 ADJUSTING THE AIRFLOW
DIRECTION” for details.
Press the on/off button once again.
The operation lamp goes off and the system
stops operation.
NOTE
• Do not turn off the power immediately after
the unit stops.
The system need at least 5 minutes for
residual operation of drain pump device.
Turning off the power immediately will cause
water leak or trouble.
6-3 ADJUSTING THE AIRFLOW DIRECTION
(Refer to figure 5) (only for Double-flow,
Multi-flow, Corner, Ceiling-suspended
and Wall-mounted)
Press the airflow direction adjust but-
ton to select the air direction.
The airflow flap display swings as
shown right and the airflow direction
continuously varies. (Automatic swing
setting)
Press the airflow direction adjust button to
select the air direction of your choice.
The airflow flap display stops swing-
ing and the airflow direction is fixed.
(Fixed airflow direction setting)
MOVEMENT OF THE AIRFLOW FLAP
For the following conditions, a micro computer con-
trols the airflow direction which may be different
from the display.
The airflow direction can be adjusted in one of the
following ways.
Automatic “ ”: The airflow direction will very con-
tinuously. (Refer to figure 6-1)
Desired position “ ”: The airflow direction can be
fixed by the user.
(Refer to figure 6-2)
NOTE
• The movable limit of the flap is changeable.
Contact your Daikin dealer for details. (Only
for Double-flow, Multi-flow, Corner, Ceiling-
suspended and Wall-mounted.)
•
Avoid operating in the horizontal direction
“ ”
. It may cause dew or dust to settle on
the ceiling.
1
2
3
4
COOLING HEATING
•
When starting operation.
•
When the room temperature is
higher than the set temperature.
•
At defrost operation.
•
When operating continuously at horizontal airflow direction.
•
When continuous operation with downward airflow is performed at the
time of cooling with a ceiling-suspended or a wall-mounted unit, the
microcomputer may control the flow direction, and then the remote control
indication also will change.
1
2
8 English
6-4 PROGRAMMING START AND STOP OF
THE SYSTEM WITH TIMER
(Refer to figure 7)
•
The timer is operated in the following two ways.
Programming the stop time “ ”
The system stops operating after the set
time has elapsed.
Programming the start time “ ”
The system starts operating after the set
time has elapsed.
• The timer can be programmed for a maxi-
mum of 72 hours.
• The start and the stop time can be simulta-
neously programmed.
Press the timer mode start/stop button several
times and select the mode on the display.
The display flashes.
• For setting the timer stop
“ ”
• For setting the timer start
“ ”
Press the programming time button and set
the time for stopping or starting the system.
Each time this button is pressed, the
time advances or goes backward by
1 hour.
Press the timer on/off button.
The timer setting procedure ends. The display
“ ”
or
“ ”
changes from flashing
light to constant light.
NOTE
• When setting the timer off and on at the
same time, repeat the above procedure
(from
“ ”
to
“ ”
) once again.
• After the timer is programmed, the display
shows the remaining time.
• Press the timer on/off button once again to
cancel programming. The display vanishes.
For example: (Refer to figure 8)
When the timer is programmed to stop the sys-
tem after 3 hours and start the system after 4
hours, the system will stop after 3 hours and
start 1 hour later.
6-5 SETTING THE MASTER REMOTE CON-
TROLLER
• In the case of the system as shown in figure 9,
only the master remote controller can select oper-
ation mode.
(Refer to figure 9)
1. Outdoor unit
2. Indoor unit
3. Remote controller
4. One of these remote controller is master
remote controller.
• Only the master remote controller can select
heating, cooling operation.
• The displays of slave remote controllers show
“ ”
(changeover under control) and they
automatically follow the operation mode directed
by the master remote controller.
However, it is possible to changeover to program
dry with slave remote controllers if the system is in
cooling operation by setting on the master remote
controller and to changeover to fan only opera-
tion.
How to designate the master remote controller
(Refer to figure 10)
Press the operation mode selector button of
the current master remote controller for 4 sec-
onds.
The display showing
“ ”
(changeover
under control) of all remote controllers con-
nected to the same outdoor unit flashes.
Press the operation mode selector button of
the controller that you wish to designate as the
master remote controller. Then designation is
completed. This remote controller is desig-
nated as the master remote controller and the
display showing
“ ”
(changeover
under control) vanishes.
The displays of other remote controllers show
“ ”
(changeover under control).
How to change the operation mode
(Refer to figure 10)
Press the operation mode selection button of
the master remote controller, which does not
show “ ” (changeover under control)
repeatedly until the air conditioner is set to the
desired operation mode.
The display will change to “ ”, “ ”, “ ”,
or “ ” each time the button is pressed.
The other remote controllers with no option
rights will follow suit and change their displays
automatically.
6-6 PRECAUTIONS FOR GROUP CON-
TROL SYSTEM OR TWO REMOTE CON-
TROLLER CONTROL SYSTEM
This system provides two other control systems
beside individual control (one remote controller con-
trols one indoor unit) system. Confirm about your sys-
tem to Daikin dealer.
•Group control system
One remote controller controls up to 16 indoor
units. All indoor units are equally set.
1
2
3
1 3
1
2
3
English 9
•Two remote controller control system
Two remote controllers control one indoor unit (in
case of group control system, one group of indoor
units). The unit is individually operated.
NOTE
• Contact your Daikin dealer in case of chang-
ing the combination or setting of group con-
trol and two remote controller control
systems.
7. OPTIMUM OPERATION
Observe the following precautions to ensure the
system operates properly.
• Prevent direct sunlight from entering a room dur-
ing cooling operation by using curtains or blinds.
• Do not keep doors and windows opened. If the
doors and windows remain open, air will flow out
of your room causing a decrease in the cooling or
heating effect.
• Do not use other heating devices directly beneath
the indoor unit.
If you do, they might get deformed by the heat.
• Never place objects near the air inlet or the air
outlet of the unit. It may cause deterioration in the
effect or stop the operation.
• Adjust the room temperature properly for a com-
fortable environment. Avoid excessive heating or
cooling.
• Ventilate often.
Extended use requires special attention to venti-
lation.
• When the display shows
“ ”
(time to clean the
air filter), ask a qualified service person to clean
the filters. (Refer to the chapter “Maintenance” in
the indoor unit manual.)
• Keep the indoor unit and remote control at least
1 m away from televisions, radios, stereos, and
other similar equipment.
Failing to do so may cause static or distorted pic-
tures.
• Turn off the main power supply switch to the unit
when the unit is not used for longer periods of
time. If the switch is on, it uses electricity. Before
restarting the unit, turn on the main power supply
switch 6 hours before operation to ensure smooth
running. (Refer to the chapter “Maintenance” in
the indoor unit manual.)
• Fully use the function of airflow direction adjust.
Cold air gathers on the floor, and warm air gathers
in the ceiling.
Set the airflow direction parallel during cooling or
dry operation, and set it downwards during heat-
ing operation.
Do not let the air blow directly to a person.
• It takes time for the room temperature to reach the
set temperature.
We recommend starting the operation in advance
using timer operation.
8. SEASONAL MAINTENANCE
CAUTION
• Do not touch the air inlets or aluminum fins
of the outdoor or indoor units.
Touching them may result in injury.
• Do not wash the outdoor or indoor units with water.
An electric shock or fire may result.
• Watch your steps at the time of air filter cleaning etc.
If the scaffold is unstable, you may fall or topple
down, thus causing injury.
• Be sure to stop the operation, and turn the
breaker off before cleaning.
This may cause electric shock and injury.
• Consult with the dealer for cleaning the interior
of the indoor units.
Incorrect cleaning may damage the plastic parts
and cause failures, such as water leakage, and an
electric shock may result.
8-1 AT THE BEGINNING OF THE SEASON
Check
• Are the indoor and outdoor unit intake and outlet
vents blocked?
Remove anything that might be blocking them.
Clean the exterior.
• See the operation manual included with the
indoor unit for details on how to clean it.
Turn the power on.
• When the power comes on, the characters in the
remote controller display appear.
(To protect the unit, turn the power on at least 6
hours before operating it. This makes operation
smoother.)
8-2 AT THE END OF THE SEASON
On a clear day, use fan operation for around half a
day to thoroughly dry out the interior of the unit.
• Refer to chapter 6 for details on fan operation.
Turn off the power.
• When the power is shut off, the characters in the
remote controller display disappear.
• When the power is on, the unit consumes up to
several dozen Watts of power.
Turn off the power to conserve energy.
Clean the exterior.
• See the operation manual included with the
indoor unit for details on how to clean it.

Produkspesifikasjoner

Merke: Daikin
Kategori: Air condition
Modell: RTSYQ20PAY1

Trenger du hjelp?

Hvis du trenger hjelp med Daikin RTSYQ20PAY1 still et spørsmål nedenfor, og andre brukere vil svare deg


Air condition Daikin Manualer

Daikin

Daikin FWP17CATN6V3 Bruksanvisning

10 April 2025
Daikin

Daikin FWP06CAFN6V3 Bruksanvisning

10 April 2025
Daikin

Daikin FXNQ63A2VEB Bruksanvisning

9 April 2025
Daikin

Daikin FXNQ20A2VEB Bruksanvisning

9 April 2025
Daikin

Daikin EWWP022KBW1N Bruksanvisning

9 April 2025
Daikin

Daikin ARXF25F5V1B Bruksanvisning

30 Mars 2025
Daikin

Daikin FTXJ42A2V1BW9 Bruksanvisning

11 Februar 2025
Daikin

Daikin UATYQ600MCY17 Bruksanvisning

10 Februar 2025
Daikin

Daikin ARXV25AV1B Bruksanvisning

7 Februar 2025
Daikin

Daikin FVXS45LV1A Bruksanvisning

7 Februar 2025

Air condition Manualer

Nyeste Air condition Manualer

Panasonic

Panasonic CS-45KA1E5 Bruksanvisning

10 April 2025
Carson

Carson PA240 Bruksanvisning

10 April 2025
Carson

Carson PA340 Bruksanvisning

10 April 2025
Frigidaire

Frigidaire GHWW125TE1 Bruksanvisning

9 April 2025
Frigidaire

Frigidaire GHWW105TE1 Bruksanvisning

9 April 2025
Frigidaire

Frigidaire FHPH142AA1 Bruksanvisning

9 April 2025
Frigidaire

Frigidaire GHPC142AA1 Bruksanvisning

9 April 2025
Frigidaire

Frigidaire GHPH142AA1 Bruksanvisning

9 April 2025
Panasonic

Panasonic CS-CU-Z21RKR Bruksanvisning

9 April 2025
Samsung

Samsung AC071BN4PKG Bruksanvisning

8 April 2025
