Dyson Gen5 Outsize Bruksanvisning

Dyson Støvsuger Gen5 Outsize

Les nedenfor 📖 manual på norsk for Dyson Gen5 Outsize (17 sider) i kategorien Støvsuger. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF
Side 1/17
User manual
SV12 JN.00000 PN.000000-00-00
00.00.00 VERSION NO.01
Contents
In the box
Getting started
The LCD screen
Alerts
Caring for your floors
Charging your machine
Changing your click-in battery
Emptying your bin
Cleaning your bin
Clearing blockages
Clearing obstructions from your
Digital Motorbar™XL cleaner head
Using your Digital Motorbar™XL
cleaner head
Clearing blockages from your
Hair screw tool
Washing your filter
Washing your Fluffy Optic™brush bar
Cleaning your tools
Looking after your machine

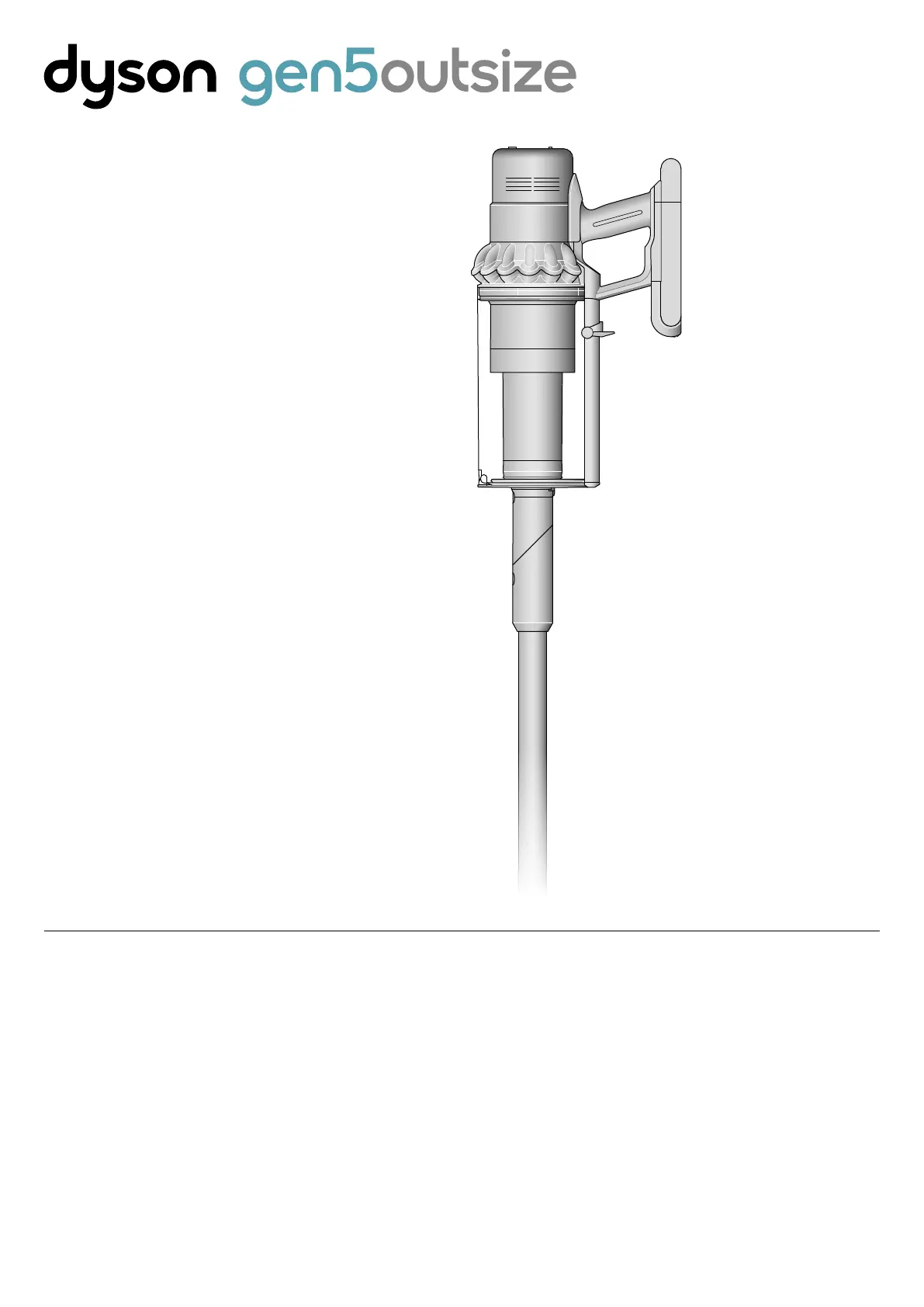

Top view of the Dyson Gen5 outsize
machine, showing main body and bin.
Dyson Gen5out ze logosi
In the box
Some tools may not be included.
You can buy additional tools at www.dyson.com.
Combination tool Soft dusting brush Stubborn dirt brush
Two tools in one –wide
nozzle and brush,
for quick switching
between cleaning and
dusting tasks around
your home or car.
Enclosed in a skirt
of soft nylon bristles
for gentle, vacuum-
assisted dusting of
delicate objects and
surfaces.
Stiff nylon bristles
dislodge ground-in dirt
from coarse carpets,
high traffic areas and
car interiors.
Charger
Charges your vacuum with
or without a dock.
Wand clip
Clips to your vacuum's
wand to hold tools.
flexible reach to any
tool at tachment,
to clean up high or
down low in your
home or car.
Hair screw tool
Anti-tangle conical
brush bar spirals hair
off and into the bin.
Motor-driven cleaning
for smaller spaces.
Fluffy Optic™
cleaner head
A precisely-angled
blade of light makes
invisible dust visible
on hard floors.
Digital Motorbar™XL cleaner head
Wider cleaner head covers more surface
in every sweep. Dyson DLS™technology
monitors brush bar resistance and
adapts power across different floor types.
Hair removal vanes prevent tangling
around the bristles.
Wand with Built-in dusting and crevice tool
Scratch-free
dusting brush
Gentle on delicate
surfaces. Self-cleaning
– a rotating cuff keeps
the sof t bristles clear
of dust.
Low-reach adaptor
Bends to comfortably
reach down low.
Engineered to clean
further under low
furniture by adjusting
the wand angle
up to 90°.
Light pipe crevice tool
Crevice tool with LED
lights lets you reach
into dark, narrow
spaces and see where
you’re cleaning.
Fabric and
mattress tool
Removes dust, dirt
and allergens from
mattresses and
upholstery.
The Dyson cordless vacuum
drops into the wall-mounted
charging dock, ready for
your next clean.
Stored inside the wand is a ready-to-
go crevice tool for on-the-spot cleans.
Vacuum cleaner with
battery and bin attached
Up-top adaptor
Bends and locks at
different angles. For
effective cleaning in
hard-to-reach high
areas of your home.
Your machine will come with one, or both, of the cleaner heads shown here.
Wall Dok™
A brush bar located inside
the cleaner head and
a suction control slider
located on the front.
A rectangular
dock that
needs to be
fixed to a wall
with screws.
The charger is a one
piece unit with the
plug, connector end
and cable.
Dyson wand, with a Built-in dusting and
crevice tool, convenient
for on-the-spot cleans.
A soft fluffy brush bar housed within
the cleaner head. There is an electrical
connecter end that can attach to the end
of the wand or directly to the machine.
The Scratch-free
dusting brush has
a head made of
soft bristles for
cleaning delicate
surfaces.
This tool has a
combination
of brush head
and crevice tool
together in one
unit. The brush
head slides down
the crevice tool
when needed.
Pliable bristles and
felt bumper strip on a
narrow, tapered tool.
A short nozzle with
stiff bristles on the
underside.
With an elbow
joint, fitted
between the
bin and the
tool.
A wide, triangular
shaped nozzle.
A plastic clip that
attaches to the wand
A flexible hose
engineered from
tough wire and
durable plastic.
A jointed
connector that
creates a flexible
joint between
the machine
and the tool. It
must be used in
conjunction with
a tool or cleaner
head.
A long tool with
an angled end.
Main body showing the bin and
battery attached.
A small cleaner head with an
angled body housing the motor
and an electrical connector to
attach to the
wand or
directly to the
machine
Ext sion hos een
Adds up to of 24 in
Getting started
Power modes
Eco mode
Auto and Med mode
Boost mode
Maximum run time for longer cleans
all around your home.
Designed for intensive spot
cleaning of ground–in dirt.
Your machine has three power
modes for dif ferent tasks. Change
power modes quickly using the silver
Selection button.
Medium mode for the optimum balance
of power and run time. Attach your
cleaner head or Hair screw tool to
activate Auto mode. Suction power
automatically adapts to dust levels.
Boost
Eco
Auto Med
00%1
Using the LCD screen
click
click
click
click
180
10
90
500
μm
38:37
Diagram
showing the
connection of
the wand onto
the main body,
with the wand
release button
aligned with
the top of the
main body.
The screen showing the machine set to
Eco mode with a full battery in green
to show that this will give the longest
battery life of the three modes.
The screen showing the machine set
to Boost mode with a red battery to
show that this will give the shortest
battery life of the three modes.
Location of the Selection
button on the screen
on the filter end of the
machine.
The screen, on the end of the
main body, showing a graph of
the sizing and counting of the
dust particles.
Arrow showing the end
of the wand connecting
to the cleaner head.
Two screens showing the
machine set to Auto mode and
Med mode with a blue battery
showing that this will give a
medium length of battery life.
Screen on the
filter end of the
machine.
Finger pressing the
selection button on
the screen to move
between power
modes.
Shows you w n your he
floor is clean
A piezo sensor co in usly nt uo
sizes and counts dust
particles at the inlet.
Your machine categorizes,
counts and displays the
amount of particles picked
up. Bars will rise and fall
depending on the amount
of bris and dust detected de
– showing you in real-time
when your area is clean.

Produkspesifikasjoner

Merke: Dyson
Kategori: Støvsuger
Modell: Gen5 Outsize
