Installation and mounting manual for EK-BAY Res D5 reservoir

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the

liquid seal is made using O-rings. The use of an algaecide and corrosion inhibitors is always recommended for any liquid cooling system.

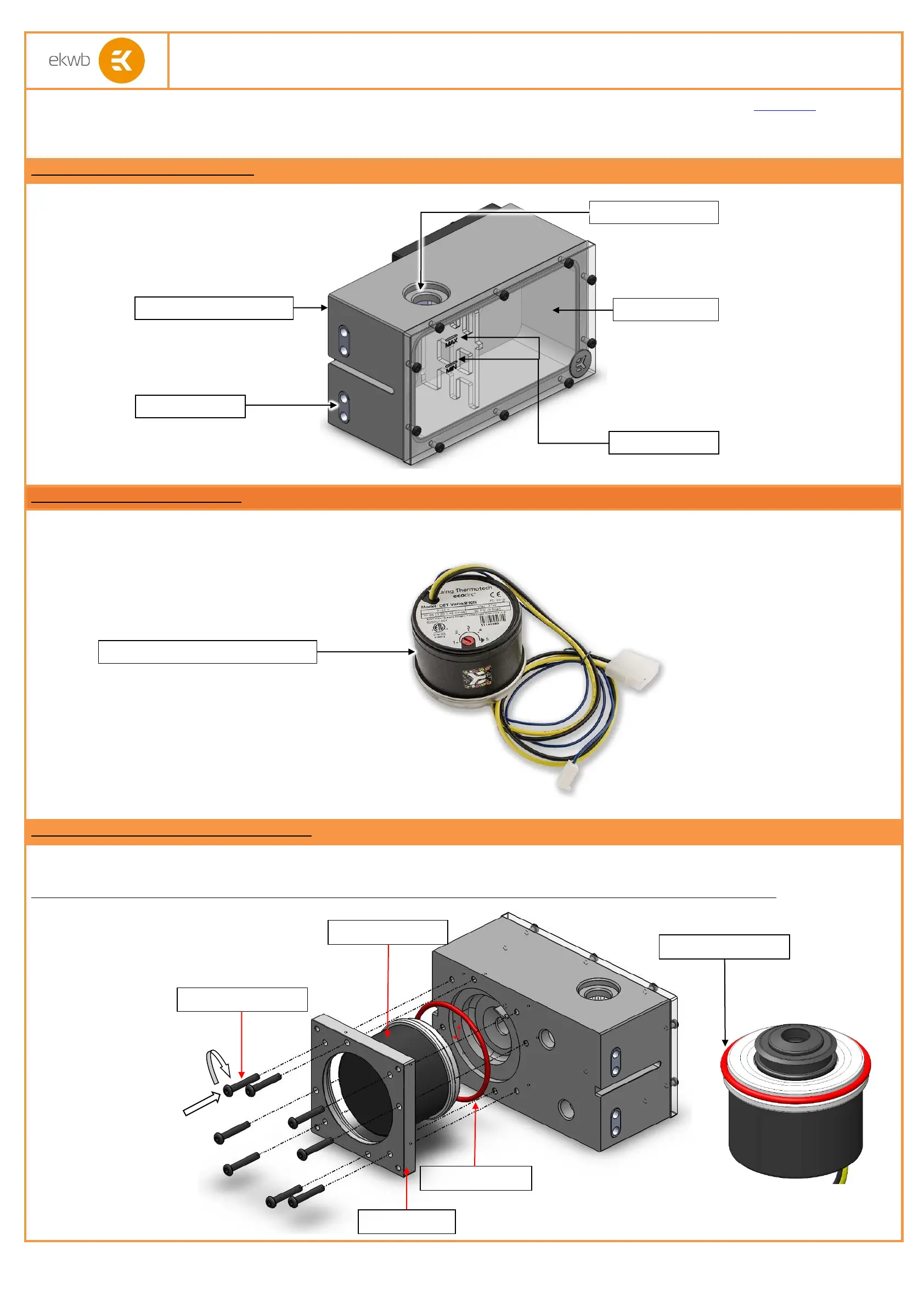

STEP 1: GENERAL INFORMATION Sample picture of EK-BAY Res D5 reservoir.

STEP 2: PREPARING THE PUMP

EK-BAY Res D5 reservoir is only compatible with the Xylem/Laing D5 pump. Before installation remove main pump motor/body from the stock or any other third

party pump top.

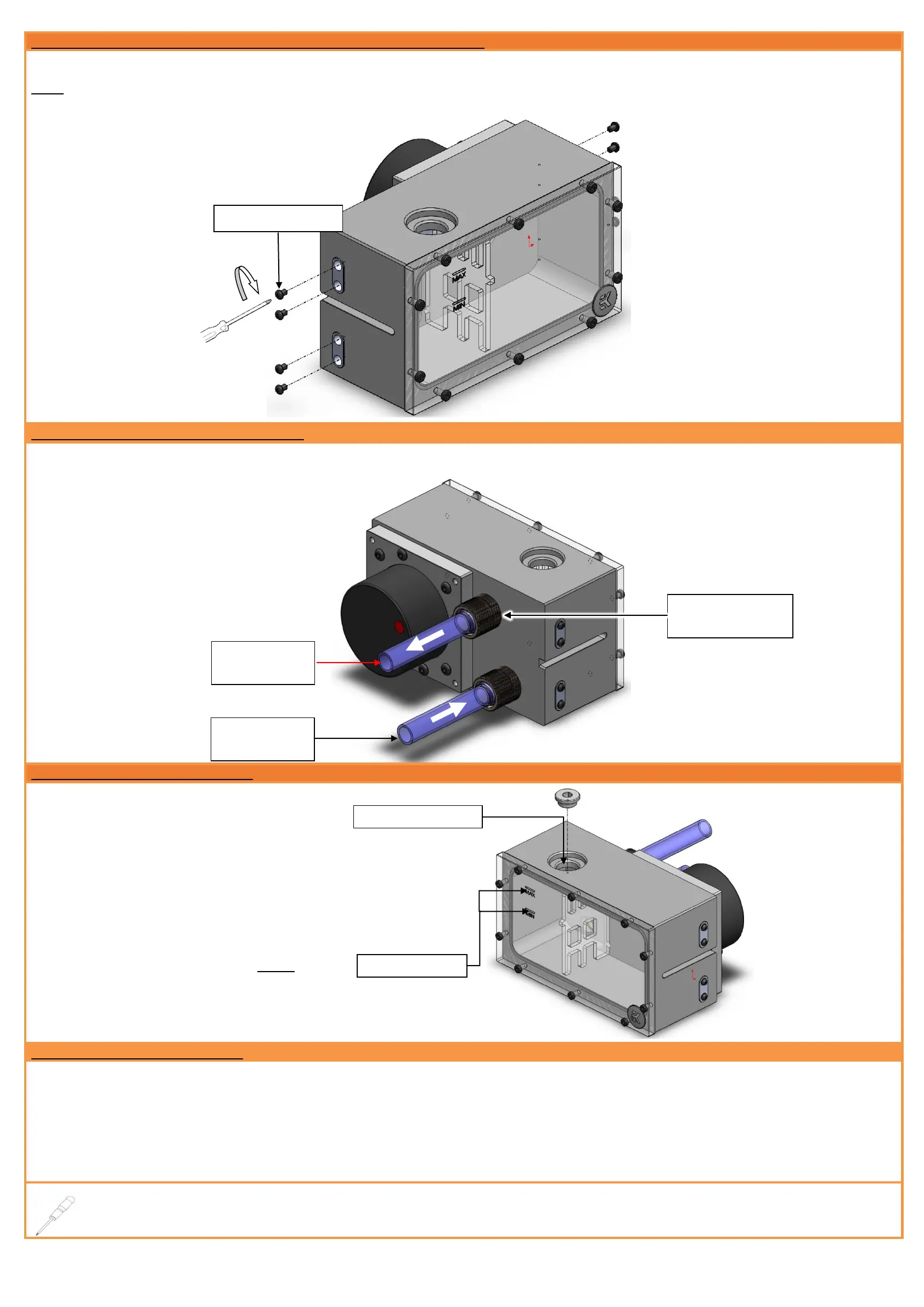

STEP 3: ASSEMBLING THE EK-BAY Res D5

Take your Xylem/Laing D5 pump. Place it according to the picture. Do not forget to place the O-ring accordingly. Use enclosed Allen key to secure the pump with

eight (8) M4×16 DIN7380 screws.

Do not use excessive force when tightening the screws! Overtightening the screws will stripp the M4 threads rendering the product useless.

Acrylic front plate

POM Acetal reservoir body

G 3/8 threaded fill port

Gasket (OR 60x3)

M4×16 DIN7380 screw

D5 X-TOP RING

D5 Pump motor

EK-D5 Vario Motor (12V DC Pump Motor)

MIN, MAX indicator

Vibration Damper
