All disclosures, notices and warranty conditions are being written on the back of the box. Revision 1.0. Released on 9

of July 2012.

Installation and mounting manual for EK-FC Titan Z Backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwaterblocks.com for updates.

Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce Titan Z

STEP 2: PREPARING YOUR GRAPHICS CARD

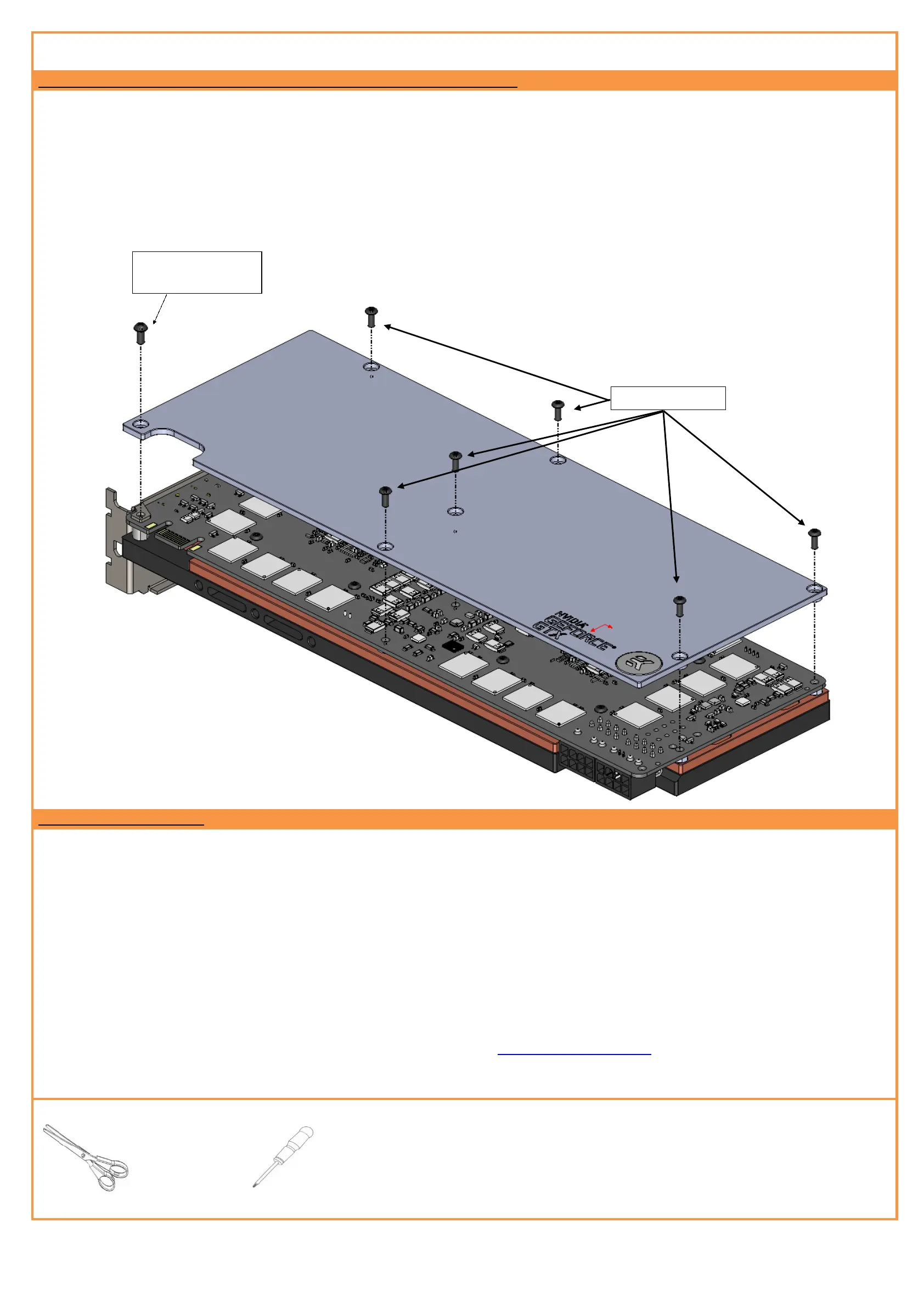

EK-FC Titan Z Backplate is very easy to install. First install EK-Titan Z water block according to its manual. If you have it already installed the water

block please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the

six (6) screws marked with arrow. Apply thermal pads on RAMs 3x Thermal Pad D – 0.5mm (8xRAM).

STEP 3: APPLYING THE THERMAL PADS

EK-FC Titan Z Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed

thermal pad. Please install enclosed 0,5mm thick thermal pad (Thermal Pad A – 0,5mm (100x16)) and 1,5mm thick thermal pad (Thermal Pad C –

1,5mm (50x25)) directly on the large extruded stub on the back plate itself as shown on the picture below. You need to trim the excess thermal

pad.

EK-FC Titan Z Backplate

2x Thermal pad

A-0,5mm (100x16)

Thermal pad C -1,5mm (50x25)
