All disclosures, notices and warranty conditions are being written on the back of the box. Revision 1.0. Released on 12

of August, 2013.

Installation and mounting manual for EK-FC780 GTX Jetstream Backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

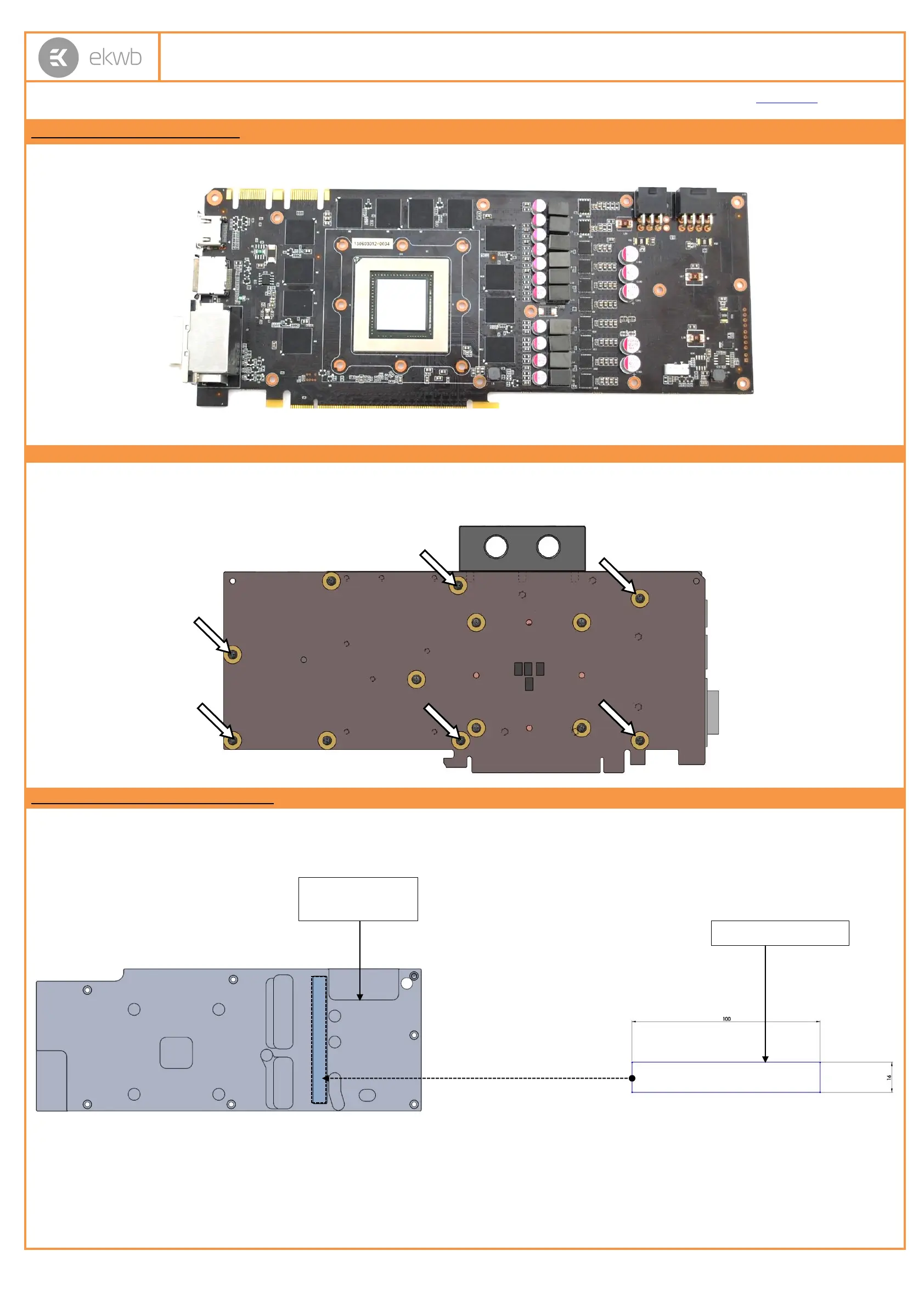

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce 780 GTX Jetstream graphics card.

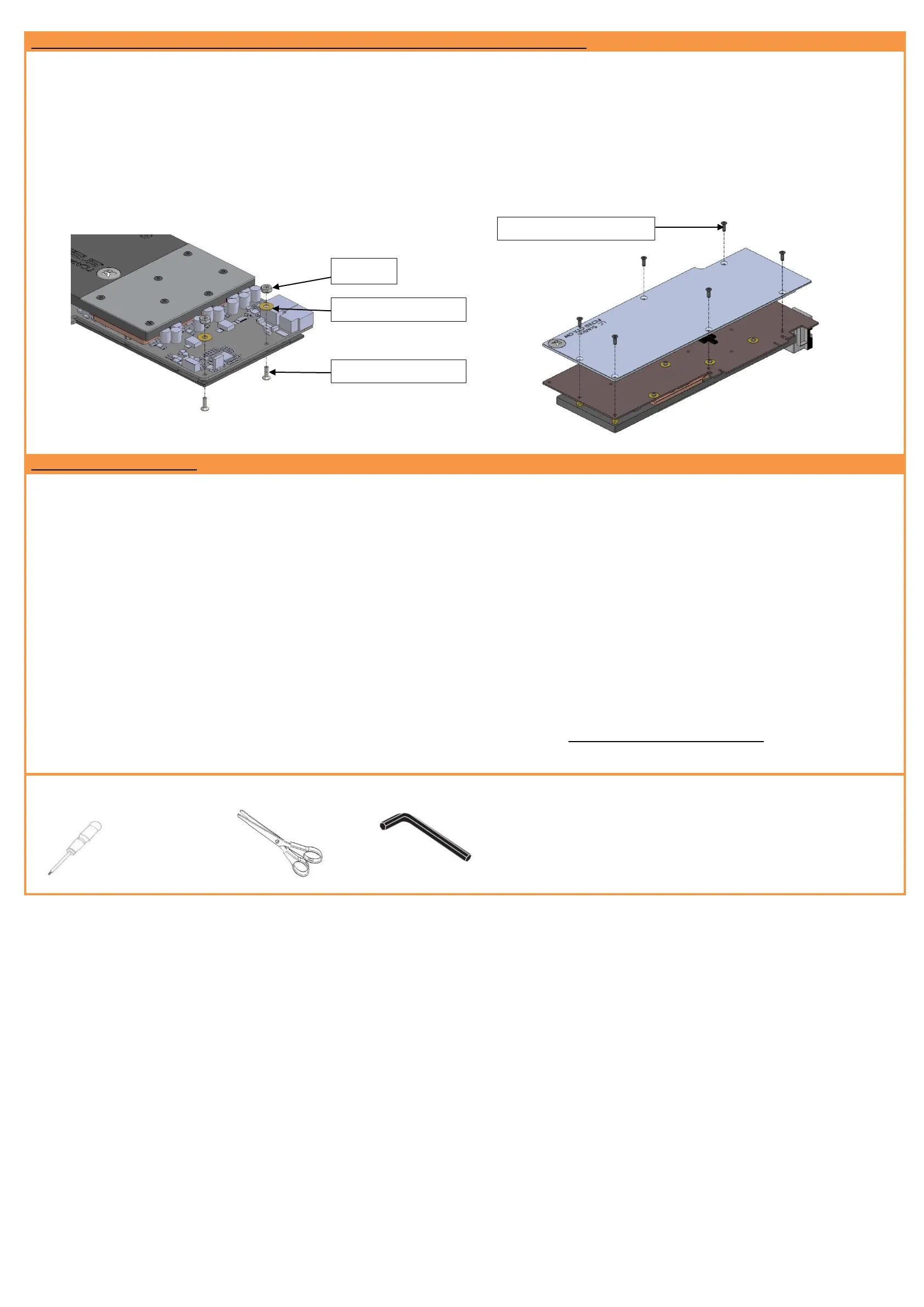

STEP 2: PREPARING YOUR GRAPHICS CARD

EK-FC780 GTX Jetstream Backplate is very easy to install. First install EK-FC780 GTX Jetstream series water block according to its installation

manual. If you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are

to be removed. Please remove the six (6) M3x4 DIN7985 screws and their washers (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK-FC780 GTX Jetstream Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the

enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad A – 1mm (100x16)) as shown on the picture below. You may

need to trim the excess thermal pad.

Thermal PAD A 1mm

EK-FC780 GTX

Jetstream Backplate
