ACL CURTAIN™
SKU# ACL035
The new ACL CURTAIN™ is a versatile batten luminaire
featuring (14) individual 15W RGBW 4-in-1 LEDs and the
new advanced collimator optic lens producing a laser-
like homogenized 4° color-changing beam from each
lens which combined produce a 53° beam angle.
Features include full individual pixel control, strobe,
and selectable dimming curve effects, DMX, RDM
(Remote Device Management), KlingNET™ and Art-NET
support, 3/5pin XLR, powerCON, and RJ45 ethernet
in/out connections, (4) button control full color 180°
reversible menu display, 135W max power consumption,
a multi-voltage universal auto switching power supply
(100-240v), and included glare shield and frost filter.
FEATURES
Versatile 53° Beam Bar Luminaire
New Advanced Collimator Optic Lens
(14) Pixel Controlled 15W RGBW 4-in-1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curve Effects
DMX, KlingNET™ and Art-NET (DMX Over Ethernet)
Flicker Free Operation for Broadcast TV and FILM
Glare Shield and Frost Filter Included
Specifications are subject to change without notice ©Elation Professional 09/30/15
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I ACL CURTAIN™ I Product Specification Sheet
Glare Shield + Frost Filter Installed
SOURCE
(14) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental
Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA ( Full ON)53°
46,740 LUX 4,342 FC @3.3’ (1m)
20,890 LUX 1,941 FC @6.6’ (2m)
13,520 LUX 1,256 FC @9.8’ (3m)
9,717 LUX 903 FC @13.1’ (4m)
7,664 LUX 712 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(11) DMX Channel Modes:
(1CH:04 / 2CH:04 / 6 /1CH:08 / 2CH:08 / 10 / / 12 56 / 58 / 60 / 63)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out
SIZE / WEIGHT
Length: 43.3” (1100mm)
Width: 9.5” (241.2mm) (Glare Shield Installed)
Vertical Height: 6.8” (172.5mm)
Weight: 24.0 lbs. (10.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
240W Max Power Consumption
Power Linking: 4pcs Max @110V / 9pcs Max @240V
5F to 113°F (-15°C to 45°C)
APPR ALS / RATINGSOV
CE | IP30
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any (360°)
INCLUDED ITEMS
powerCON Cable
Glare Shiled
Frost Filter
sp atecific ions
I
ELA A CURTAI TION CL N™
I
www.elationlighting.com
Specifications are subject to change without notice ©Elation Professional 09/30/15
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

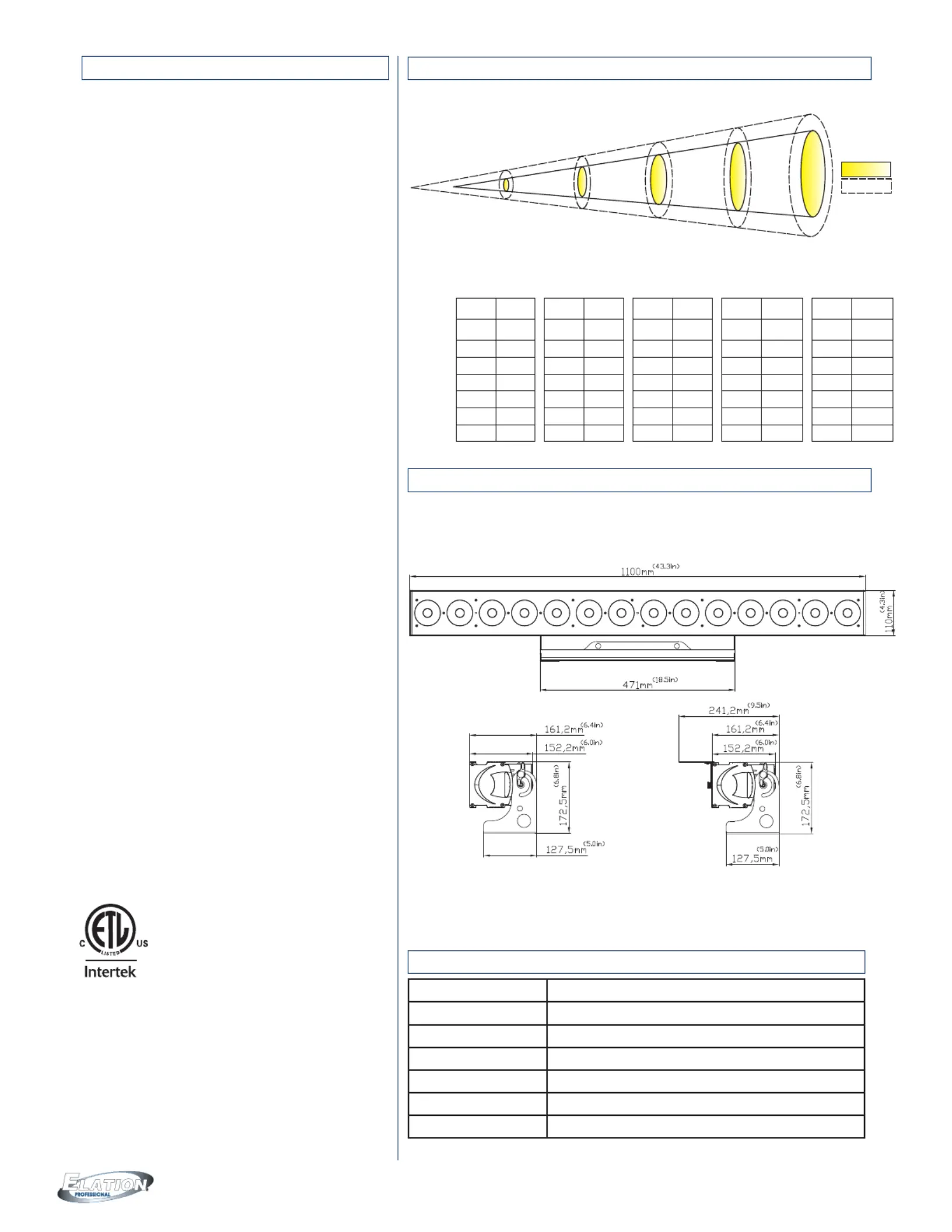

DI L IAGR SMEN ONASI D AM
PR A SODUCT SPECIFIC TION
PHOT D AOMETRIC AT
OP ONA ESSOTI L ACC RIES
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
PLC3 3’ (1m) PowerCON PRO Link Cable
CAT6PRO5 5’ (1.5m) CAT6 EtherCON Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional cable lengths available
1m
2m
3m
4m
5m
62° Field
53° Beam
1 m 3.3 ft 2 m 6.6 ft 3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft
53° Beam
Diameter
0.98 3.2 1.94 6.4 2.95 9.7 3.95 13.0 4.91 16.1
62° Field
Diameter
1.17 3.8 2.39 7.8 3.58 11.7 4.7 15.4 5.85 19.2
lux fc lux fc lux fc lux fc lux fc
RED LEDs
7,902 734 3,652 339 2,440 227 1,757 163 1,313 122
GREEN LEDs
18,770 1,744 9,134 849 5,740 533 4,040 375 2,971 276
BLUE LEDs
4,537 421 1,924 179 1,337 124 951 88 761 71
WHITE LEDs
19,590 1,820 11,330 1,053 6,714 624 5,064 470 3,855 358
FULL ON
46,740 4,342 20,890 1,941 13,520 1,256 9,717 903 7,664 712
No Glare Shield Glare Shield Installed
