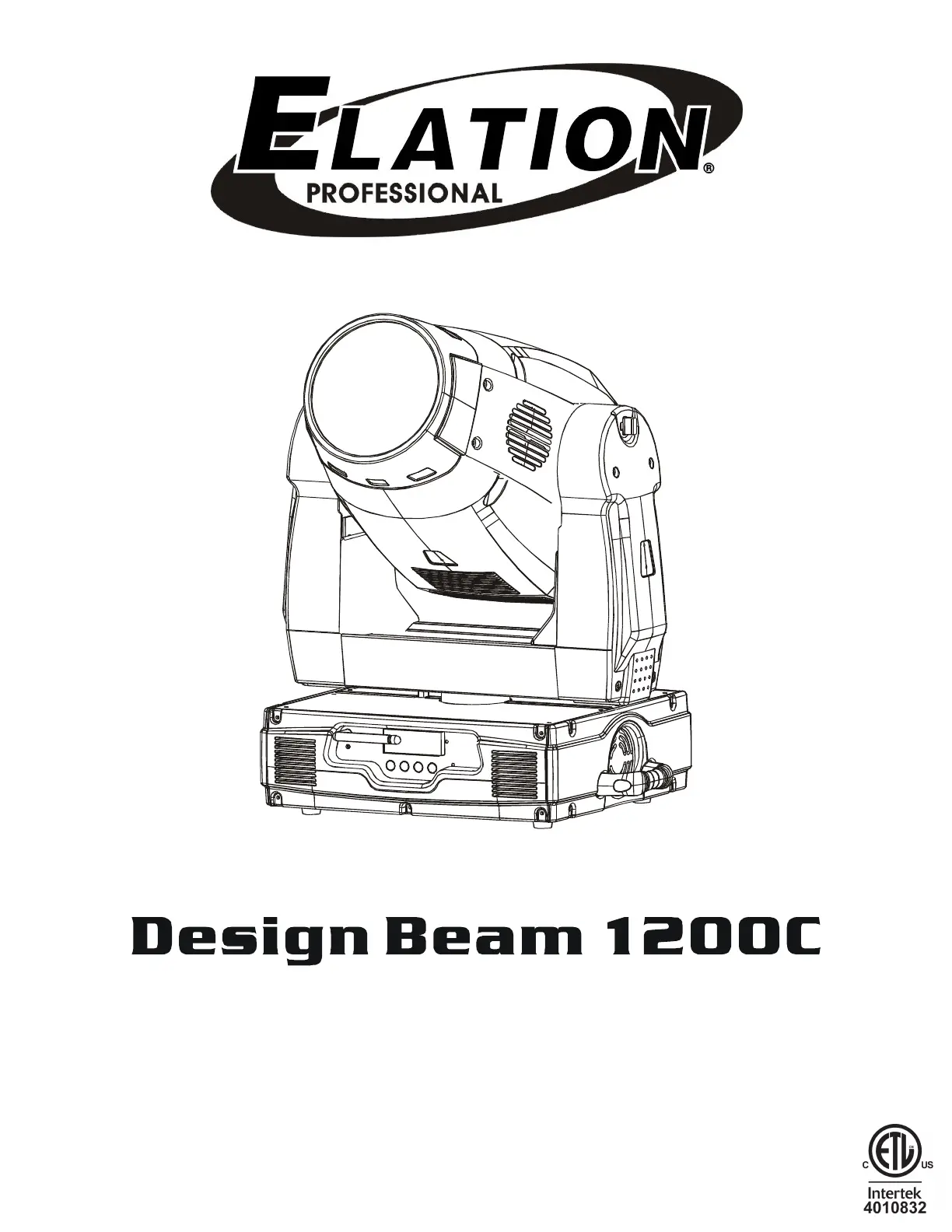

Elation Design Beam 1200C Bruksanvisning
Les nedenfor 📖 manual på norsk for Elation Design Beam 1200C (64 sider) i kategorien belysning. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/64
Rev. 12/30/2008-visage
Version v1.1
Elation Professional
6122 S Eastern Ave
Los Angeles, Ca 90040
www.elationlighting.com
Design Beam 1200C™
©Elation Professional® 2 Design Beam 1200C™
Design Beam 1200C™
©Elation Professional® 3 Design Beam 1200C™
CONTENTS
1. General Information……………………………………………………………………… 4
a. Introduction………………………………………………………………………. 4
b. Customer Support…………………………………………….………………… 3
c. Warranty Registration……………………………………………………..……. 5
d. Discharge Lamp Warning………………………………………………………. 5
2. Safety Instructions………………………………………………………........…………. 7
3. Features…………………………………………………………………………………… 9
4. General Guidelines………………………………………………………………………. 10
5. Fixture Overview…………………………………………………………………………. 11
6. Lamp Installation…………………………………………………………………………. 12
a. Lamp installation…………………………………………………….………….. 12
b. Lamp optimization……………………………………………………..………… 13
7. Mounting and Installation………………………………………………………….……. 15
a. Mounting Positions……………………………………………………………… 15
b. Mounting Points…………………………………………………………………. 16
c. Securing………………………………………………………………………….. 17
8. Understanding DMX……………………………………………………………………... 18
a. DMX Linking……..………………………………………………………………. 18
b. DMX Cable Requirements..……………………………………………………. 18
c. DMX Termination………..………………………………………………………. 20
d. DMX Addressing………………………………………………………………… 20
9. Fixture Menu……………………………………………………………………………… 22
a. Menu functions………………………………………………………………….. 23
10. Menu Functions.…………………………………………………………………………. 25
11. DMX Addressing…………………………………………………………………………. 33
12. Operation…………………………………………………………………………………. 35
13. Using the Built-In Wireless DMX Receiver……………………………………………. 37
14. Working with Built-In Programs…………………………………………………………. 39
15. DMX Channel Traits……………………………………………………………………… 45
16. Fuse Replacement……………………………………………………………………….. 51
17. Error Codes……………………………………………………………………………….. 52
18. Cleaning and Maintenance……………………………………………………………… 56
19. Warranty…………………………………………………………………………………... 57
20. Photometric Data………………………………………………………………………… 59
21. Dimensional Drawings………………………………………………….……………….. 60
22. Circuit Schematic………...………………………………………………………………. 61
23. Technical Specifications…………………………………………...………….………… 62
