Elation Design Par 575H Bruksanvisning
Les nedenfor 📖 manual på norsk for Elation Design Par 575H (56 sider) i kategorien belysning. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/56
Rev. 3/09/2007
Design Par 575H
Elation Professional
4295 Charter Street
Los Angeles, Ca 90058
www.elationlighting.com

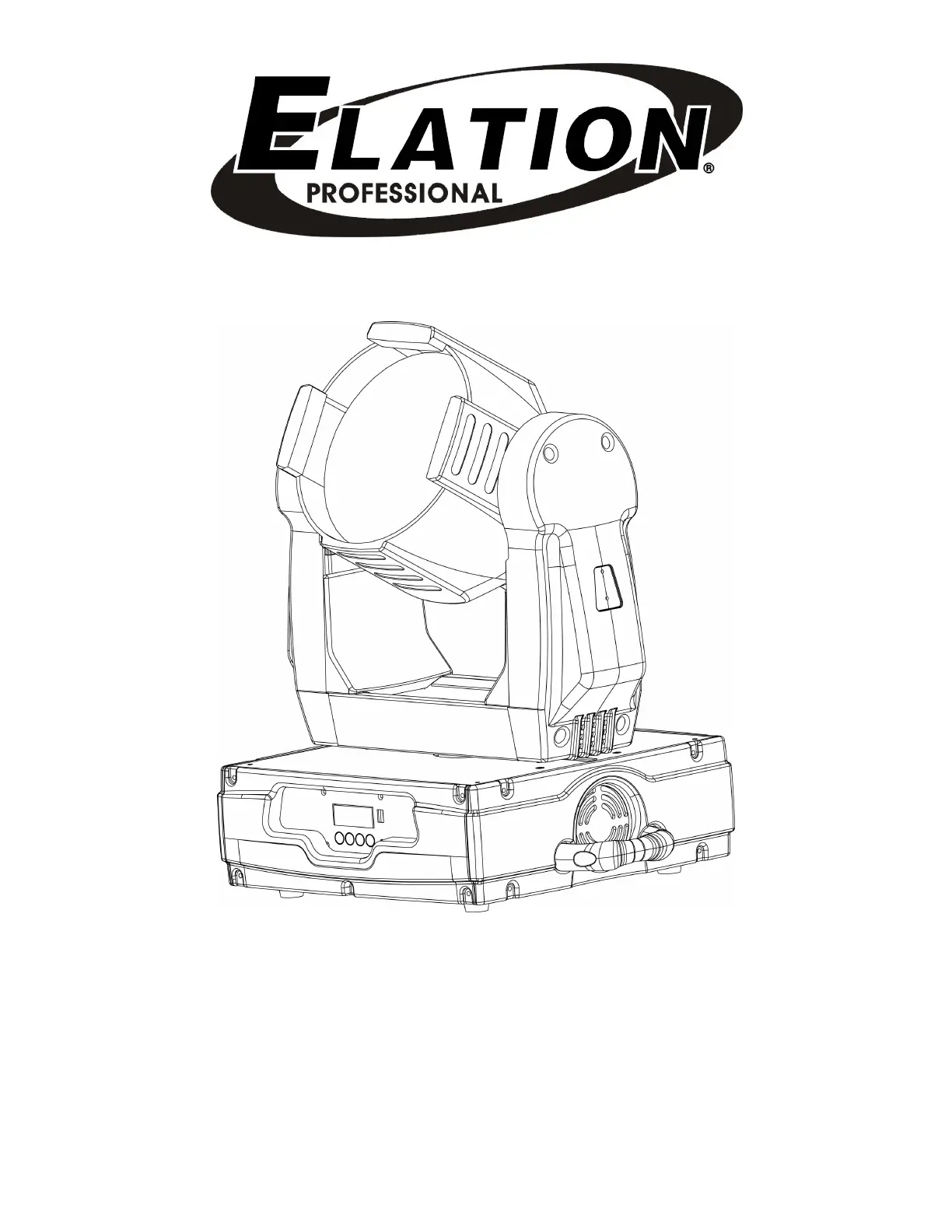

Design Par 575H™
©Elation Professional® 2 Design Par 575H™
Contents
1. General Information……………………………………………………………………… 3
a. Introduction………………………………………………………………………. 3
a. Unpacking………………………………………………………..…………..… 3
a. Customer Support…………………………………………….………………… 3
a. Warranty Registration……………………………………………………..…… 4
a. Discharge Lamp Warning……………………………………………………… 4
1. Safety Instructions………………………………………………………........…………. 6
1. Features…………………………………………………………………………………… 8
1. General Guidelines………………………………………………………………………. 9
1. Fixture Overview ………………………………………………………………………. 10
1. Lamp Installation…………………………………………………………………………. 13
a. Lamp installation…………………………………………………….………….. 13
a. Lamp optimization……………………………………………………..………… 14
1. Mounting and Installation………………………………………………………….……. 16
a. Mounting Positions……………………………………………………………… 17
a. Mounting Points…………………………………………………………………. 18
a. Securing………………………………………………………………………….. 19
1. Understanding DMX……………………………………………………………………... 20
a. DMX Connections………………………………………………………………. 20
a. DMX Terminator…………………………………………………………………. 21
a. 3-Pin to 5-Pin Conversion………………………………………………………. 22
a. DMX Addressing………………………………………………………………… 22
1. Display Indicators……………………………………………………………………….. 24
1. Fixture Menu……………………………………………………………………………… 25
a. Menu functions………………………………………………………………….. 27
1. DMX Channel Traits…………………………………………………………………….. 43
a. DMX Channel Values…………………………………………………………… 44
1. Error Codes………………………………………………………………………………. 45
1. Cleaning and Maintenance……………………………………………………………… 47
1. Warranty…………………………………………………………………………………... 48
1. Photometric Data………………………………………………………………………… 50
1. Dimensional Drawings………………………………………………….……………….. 51
1. Circuit Schematic………...………………………………………………………………. 52
1. Technical Specifications…………………………………………...………….………… 53
Design Par 575H™
©Elation Professional® 3 Design Par 575H™
1. General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! The Design Par 575H,™ has been designed to
perform reliably for years when the guidelines in this booklet are followed. Please read and
understand the instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information regarding safety during
use and maintenance.
UNPACKING: Thank you for purchasing the Design Par 575H™ by Elation Professional®.
Every Design Par 575H™ has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your unit
for damage and be sure all accessories necessary to operate the unit have arrived intact. In
the event damage has been found or parts are missing, please contact our customer
support team for further instructions. Please do not return this unit to your dealer without
first contacting customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@elationlighting.com
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
