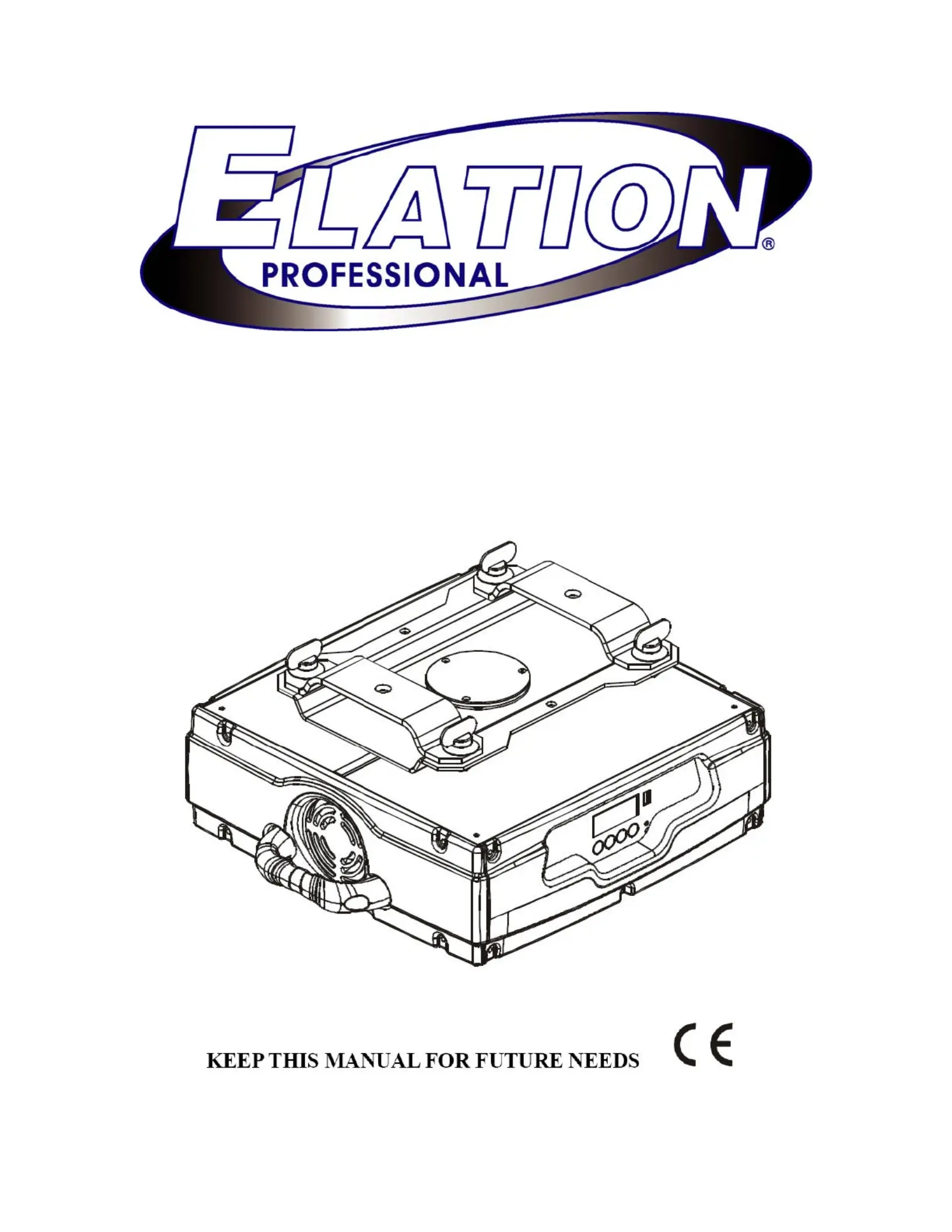

DESIGN PROMO 360
USER MANUAL
For your own safety, please read this user manual carefully before installing the device.
Keep this device away from rain and moisture !
Unplug mains lead before opening the housing.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional advertisement lighting.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. The fixture device
2. A power cable
3. An XLR connection cable
4. A safety cable and this manual
Please check carefully that there is no damage caused by transportation. Should there be any, consult your dealer
and don’t install this device.
Features:
·16 bit resolution
·Movement: 540°/630° optional
·For smooth and precise resolution
·Can rotate continuously
·While Channel 4 on DMX value 0-63 , channel 1,2,3 can do 16 bit high resolution movement
·While Channel 4 on DMX value 64-127, the base rotates continuously in clockwise direction
·While Channel 4 on DMX value 128-191, the base rotated continuously in counterclockwise direction
·While Channel 4 on DMX value 236-245 , reset after 8 seconds
SAFETY INSTRUCTIONS
Be careful with your operations.With a dangerous voltage you can
Suffer a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and to ensure
a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
- １ - XM080-V1.0 NR
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device. Leave the device switched off
until it has reached room temperature.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Never touch the device during operation!
The housing may heat up
CAUTION!
Please be aware that damages caused by manual modifications to the device are not subject to
warranty. Keep away from children and non-professionals.
GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual, the device was designed for indoor use only.
Lighting effects are not designed for permanent operation. Consistent operation breaks may ensure
that the device will serve you for a long time without defects. Do not shake the device.
Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. The minimum distance between light-output from the projector
Always fix the fixture with an appropriate safety cable if you use the clamp to hang up the fixture.
When fixing the device on a raised-from-the- ground support, be sure to use no less than screws and
nuts of M10 x 25 mm and insert them in the pre-arranged screw holes in the base of the fixture.
If you use the quick lock cam in hanging up the fixture, please make sure the 4 quick lock fasteners
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
- ２ - XM080-V1.0 NR
