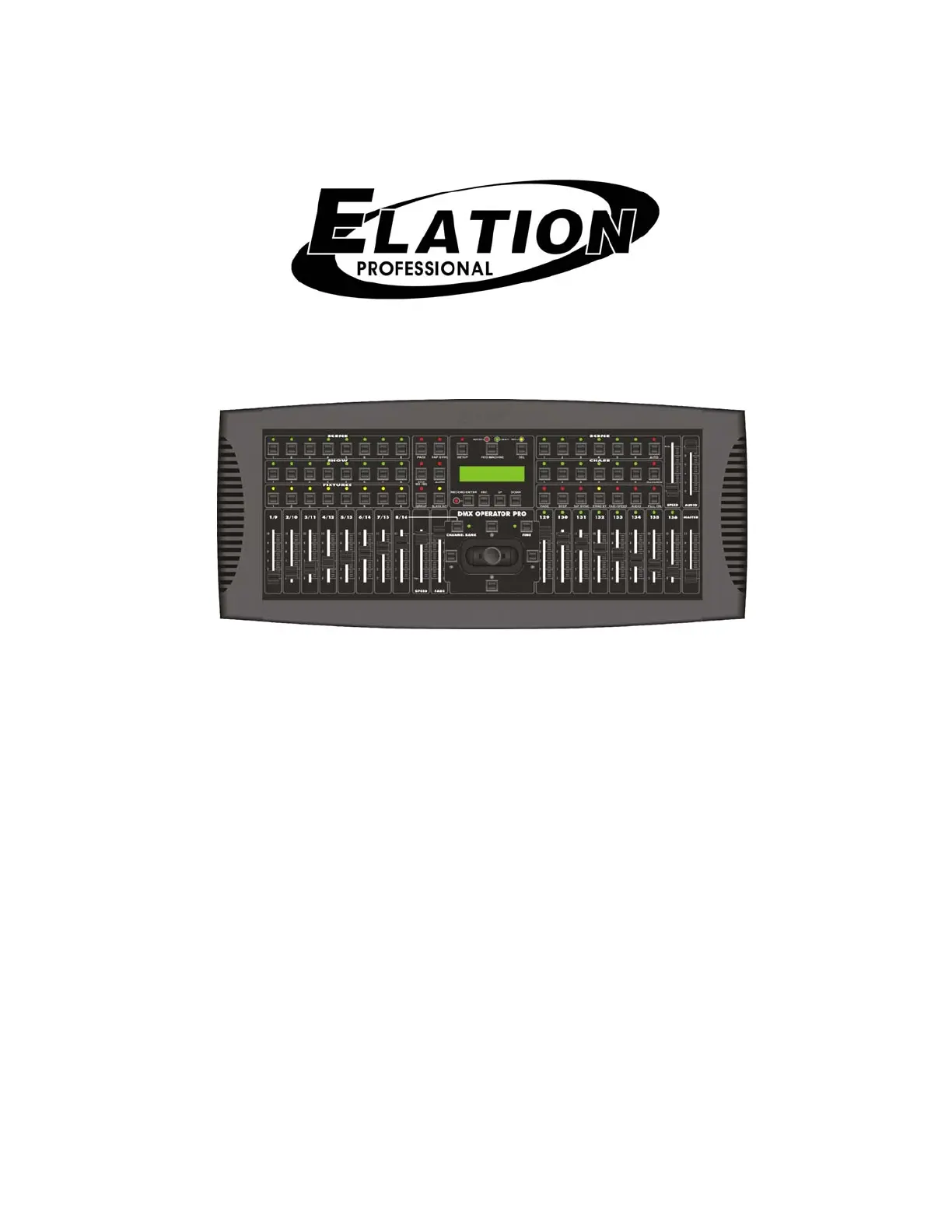

DMX OPERATOR PRO
USER MANUAL
Version 3.0 24-004-1262
Table of Contents
Elation Professional · Los Angeles, Ca 90058 · www.elationlighting.com
DMX OPERATOR PRO
2
Table of Contents
Sections:
1 : General Introduction………………..…………………………………………………………...………3
2 : Safety Information & Maintenance……….………………………..……………………………….... 4
3 : Information Notice…………………..……………..………………………………….………………... 5
4 : Features and Specifications………………………..……………………………………………….... 5
5: Technical Specifications ……………………………………………………………………….…….....6
6: Basic Control Parts……………………………………………………………………………....….…6-9
7: Set Up & Operation……………………..…… ………………………………………………….……9-10
7.1 Connections……………….…………………………………………………………………………..9
7.1.1 Setting DMX Address Channels for Moving Lights….……….…………………………..10
7.1.2 Setting DMX Address Channels for Dimmer Packs (Par Cans)………………………...11
7.2 Assign Joystick to Pan & Tilt..……………………………….…………..………………….…11-13
7.3 Recording Moving Lights …………………….….…………………………………..…………….14
7.3.1 Record a Moving Light Scene..………………………………………..…………....…14-15
7.3.2 Record a Moving Light Show..… ………………………………….……..……………16-17
7.4 Playback Moving Light Scenes & Shows.………………………………………….….…….…18
7.4.1 Playback Moving Light Scenes. ………………………………..…………………………18
7.4.2 Playback Moving Light Shows.…..………..……………………………………………....19
7.5 Edit Moving Light Shows……………………..…….…………….…………………….……...…20
7.5.1 Add Moving Light Show Steps………….………..…………………..………..……..…20-21
7.5.2 Delete Moving Light Show Steps.……….…………………………………………………21
7.5.3 Delete Moving Light Shows…………………..….………………….………………..…...22
7.6 Recording Par Cans Scenes & Chases…….……..……………………………….……….…...23
7.6.1 Record a Par Can Scene…….…………………………….…………..………..……..23-24
7.6.2 Record a Par Can Chase..………...………………….…………………………..……24-25
7.7 Playback Par Can Scenes & Chases……………..…….……………………..…………………26
7.7.1 Playback Par Can Scenes….……….……………………………………………..…...… 26
7.7.2 Playback Par Can Chases..……….………………………………..….……………….… 27
7.8 Edit a Par Can Chase…………..………………………………………………….……………….28
7.8.1 Add Par Can Chase Steps……………..…..…………………….……………..………28-29
7.8.2 Delete Par Can Chase Steps……….……..………………….………………….……..….29
7.8.3 Delete a Par Can Chase………..………..….…………………………………..….…….. 30
8: Menu Options Set Up…………………………………………………………………….….………... 31
8.1 Access Menu Options……………...…………………………….……………………….…….… 31
8.2 Save to CF Card……………………………………………………………………….....………31-32
8.3 Read CF Card…………………………………………………………………………………….32-33
8.4 Channel Patch…………………..……………………………………..………….…..………... 34-35
8.5 Pan/Tilt Fade Set Up…………………..…………………………………….…………….…… 35-36
8.6 Display Mode Set Up…………………………..……………………………………………..…36-37
DMX OPERATOR PRO
3
Table of Contents (Cont.)
8.7 MIDI Channel Set Up…………………………………………………………………….………..…..38
9: MIDI Trigger Chart…………….………………………………………………………….……….….. 39
10: CF Card Important Notice……….….………….………………….……………..…………..…..…. 39
11: Erase All Memory.......................................................................................................................40
Section 1: General introduction
Thank you for choosing the Elation DMX Operator Pro. The DMX Operator Pro is a 136 channel hybrid
lighting control device designed for DJ’s, clubs and small touring applications. This controller allows
operators to easily manipulate conventional and moving lights via simple to use buttons and faders. The
DMX Operator Pro puts programming, playback and live manipulation of Scenes and Shows at your
fingertips.
The DMX Operator Pro can control up to 8 moving lights, each consisting up to 16 channels- max 128
channels. Up to 96 programmable Scenes and 8 programmable Shows can be recorded for the moving
light section. Up to 96 programmable Scenes and 6 programmable Shows can be recorded for the
conventional Par Can section. There is also a compact flash slot on the rear for an optional 32MB card so
programs and setting can be saved. The compact flash card is NOT universal- it is a proprietary card that
you must buy from the dealer where you purchased your console. The model number for the optional card
is “32MB CARD”.
Also incorporated are 14 quick access scene buttons, 8 for moving lights and 6 for Par Cans, 8 quick
access Show buttons for moving lights and 6 Show buttons for Par Cans. The DMX Operator Pro also
incorporates an assignable joystick- ideal for pan/tilt control of scanners and moving heads. A master
fader shall be used to control the overall intensity for all 8 Par Can channels. A separate section of 8
independent faders are included so the lighting operator can easily control Par Cans on the fly. Other
features include a Tap Sync button for manual Show override, Step/Mix/Sequence button for Show
playback, Audio button for music trigger (via internal microphone or line level input), Group button to
control more than 1 fixture at a time and four speed and fade faders for manual override of Shows.
Every unit has been thoroughly tested and carefully packed before shipment. Unpack the shipping carton
and inspect thoroughly saving the carton and all packing materials for possible use later. Check carefully
and make sure your product is not damaged and that no included accessory is missing. If your product
appears to be damaged or missing something, please do not use it- contact our customer support staff at
(800) 322.6337 ext-401 for instructions on what to do.
