EBK-1
3/8” Eyebolt
Attachment Kit
User Instructions
EBK-1 3/8” Eyebolt Attachment Kit
The Electro-Voice® EBK-1 Eyebolt Attachment Kit contains three shoulder eyebolts, along with three fender wash-
ers for load distribution, which attach to Electro-Voice® speakers that have integrated 3/8” suspension points.
The eyebolt attachment points can be used to suspend the Electro-Voice® speakers using hardware rated for
overhead lifting. The loudspeaker is suspended using two main suspension points with a pull-up point in the back
for aiming. Two suspension points can be used to prevent the speaker from swaying, but the rigging hardware
(shackles, etc.) attaching to the eyebolt must fit through the 25-mm (1-in.) opening.
Figure 1: Suspension Point and Load Angles
3/8”
Eyebolt
Figure 2: Removing the 3/8” Bolts from the Loudspeaker
Table 2: Working-Load vs. Angle (8:1 Safety Factor)
Figure 3: Installing Fender Washers and
Eyebolts to the Loudspeaker
Installation Instructions:
1. Remove the 3/8-16 shoulder bolts from the speaker (See Figure 2).
2. Screw the lifting eyebolt and fender washer into the insert until the fender washer has contacted the wood (See
Figure 3).
3. Finger tighten eyebolt until correct alignment position is obtained, a maximum of one complete turn.
4. Use certified hardware rated for overhead lifting to suspend the speaker (See Figure 6).
WARNING: Eyebolts must be fully seated and oriented in the plane of pull (Figure 4). Always use the fender washers to distribute
the load on the enclosure (Figure 5). Overtightening the eyebolt with a wrench, screwdriver, etc. can result in system failure and
injury. Consult the loudspeaker user manual for the loudspeaker load ratings and specific requirements.
Part No. Quantity Description Material
5542930 3 3/8”-16 x 32mm (1.25 in.) Shoulder Eyebolts Drop Forged Steel
HDW000006-000 3 3/8” ID x 1-1/2” OD Fender Washers Stainless Steel, Black
Table 1: EBK-1 Contents
Fender
Washer
3/8”
Bolt
Load
Correct Incorrect
Load
90°
0°
30°
60°
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 07/2008
Part Number 534260 Rev C
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice
®
Figure 6: Examples of Useful Suspension Hardware

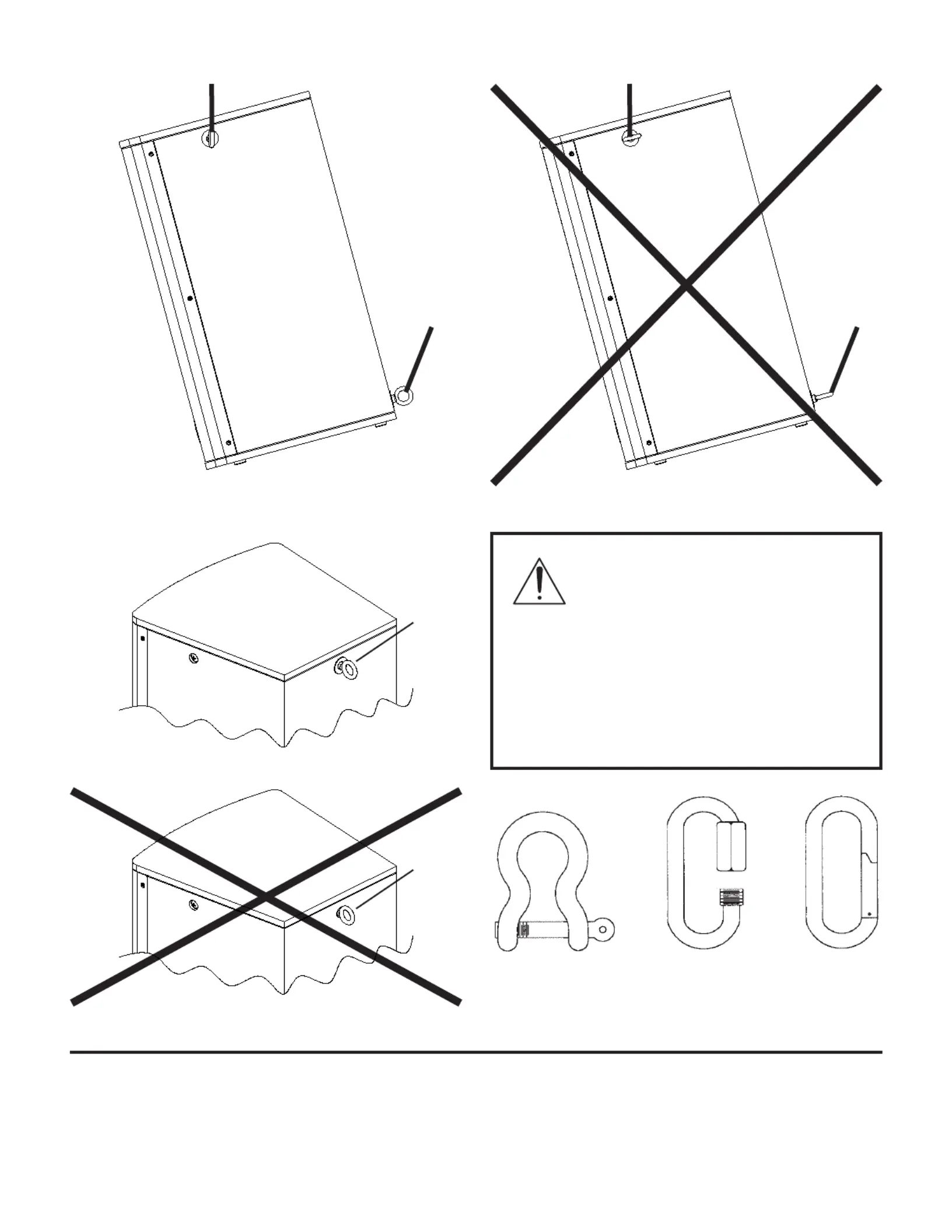

Figure 4a: Eyebolts shown oriented in the
plane of pull (CORRECT)
Figure 4b: Eyebolts NOT oriented in the
plane of pull (INCORRECT)
Figure 5b: Eyebolt shown without Washer (INCORRECT)
WARNING: Suspending any object is potentially
dangerous and should only be attempted by
individuals who have a thorough knowledge of the
techniques and regulations of suspending objects
overhead. Electro-Voice® strongly recommends
that loudspeakers be suspended taking into ac-
count all current national, federal, state and local regulations. It
is the responsibility of the installer to ensure that all loudspeak-
ers are safely installed in accordance with all such regulations.
When loudspeakers are suspended, Electro-Voice® strongly
recommends that the system be inspected at least once a year.
If any sign of weakness or damage is detected, remedial action
should be taken immediately. Any hardware used to suspend a
loudspeaker that is not associated with Electro-Voice® is the
responsibility of others.
Anchor
Shackle
Threaded
Chain
Connector
Carabiner-
Type
Snap Hook
No Washer
Used
Washer
Used
Figure 5a: Eyebolt shown with Washer (CORRECT)
