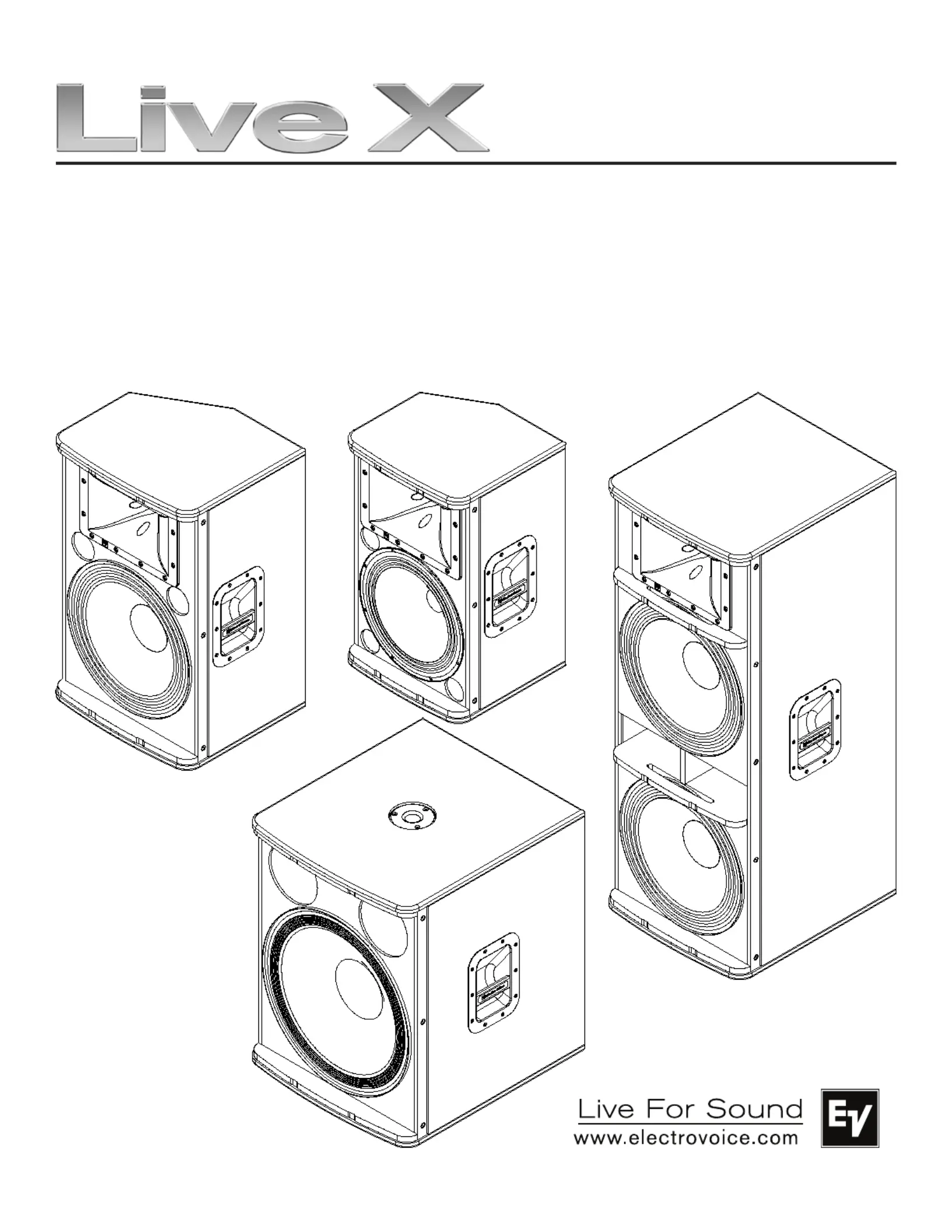

Passive
Loudspeaker
Owner’s Manual
ELX112
ELX115
ELX118
ELX215
Electro-Voice Live X Series Passive Owner’s Manual
Table of Contents
Important Safety Instructions ...........................................................................................................................................2
Precautions .........................................................................................................................................................................2
Description ...........................................................................................................................................................................3
System Features ................................................................................................................................................................3
Recommended Configurations ........................................................................................................................................7
Specifications ................................................................................................................................................................... 11
Dimensions ........................................................................................................................................................................ 12
Frequency Response Graphs ....................................................................................................................................... 14
Live X Model Reference Table ...................................................................................................................................... 14
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8. Only use attachments/accessories specified by
the manufacturer.
9. Do not expose this apparatus to dripping or
splashing and ensure that no objects filled with
liquids, such as vases, are placed on this apparatus.
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsu-
lated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompa-
nying the appliance.
The asterisk within an equilateral triangle is intended to inform
the user to necessary installation or removal instructions re-
garding equipment or hardware use relating to the system.
Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European
Union and other European countries with individual national policies on the management of WEEE) The symbol on the
product or on its packaging indicates that this product may not be treated as regular household waste, but has to be
disposed through returning it at an Electro-Voice dealer.
• Do not use Live X loudspeakers in an environment where temperatures exceed +40°C (104°F).
• Never expose a Live X loudspeaker to rain, water, or high moisture.
• Electro-Voice Live X loudspeakers are easily capable of generating sound pressure levels suf-
cient to cause permanent hearing damage to anyone within normal coverage distance. Caution
should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.
2
Precautions
Electro-Voice Live X Series Passive Owner’s Manual 3
Description
Thank you for choosing an Electro-Voice Live X passive loudspeaker system. Please take time to consult
this manual to understand all the features built into your Electro-Voice system and fully utilize its perfor-
mance capabilities.
Clear, powerful and musical Electro-Voice loudspeakers command the stage at high-profile venues and
major events worldwide. Born stage-ready, the Live X series includes powered and passive models that
all feature EV-engineered components in solid wood cabinets. Wherever performance matters, Live X is
serious gear for serious sound.
System Features
ELX112 – 12” Two-Way Passive Loudspeaker
The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound rein-
forcement and stage monitoring applications.
• DH-1K 39mm (1.5”) Titanium Diaphragm Compression Driver
• EVS-12K 305mm (12”) Woofer
• 55 Hz – 20 kHz frequency range
• 94 dB SPL sensitivity; 132 dB max SPL
• 250 W continuous and 1000 W peak power handling
• Pole-mounts or stacks with Live X Subwoofers
• High Frequency Waveguide with 90° x 50° Coverage Pattern
• 60° Monitor Angle
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint
ELX115 – 15” Two-Way Passive Loudspeaker
A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-fre-
quency response for bigger sound in larger rooms.
• DH-1K 39mm (1.5”) Titanium Diaphragm Compression Driver
• EVS-15K 381mm (15”) Woofer
• 50 Hz – 20 kHz frequency range
• 95 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Pole-mounts or stacks with Live X Subwoofers
• High Frequency Waveguide with 90° x 50° Coverage Pattern
• 60° Monitor Angle
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint

Produkspesifikasjoner

Merke: Electro-Voice
Kategori: Høyttaler
Modell: ELX 118
