HA-5

Handle Mount Kit

Installation Instructions

HA-5 Handle Mounting Kit

The HA-5 Handle Mounting Kit features a threaded attach point that allows for a Zx4 or Zx5 loudspeaker to be

ﬂown using a VSA-1 Strong-Arm and TCA-1 Truss Clamp Adaptor (both sold separately) to obtain desired orienta-

tion and sound coverage.

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number 38110441 Rev C

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Speciﬁcations subject to change without notice.

Electro-Voice

WARNING

Suspending any object is potentially dangerous and should

only be attempted by individuals who have a thorough

knowledge of the techniques and regulations of rigging

objects overhead. Electro-Voice strongly recommends that

Zx4 and Zx5 speakers be suspended taking into account

all current national, federal, state and local regulations. It is

the responsibility of the installer to ensure that Zx4 and Zx5

speakers are safely installed in accordance with all such

regulations. If Zx4 or Zx5 speakers are suspended, Electro-

Voice strongly recommends that the system be inspected

at least once a year. If any sign of weakness or damage is

detected, remedial action should be taken immediately.

TCA-1 Truss Clamp

Adaptor

VSA-1 Strong-Arm

HA-5 Handle Mount

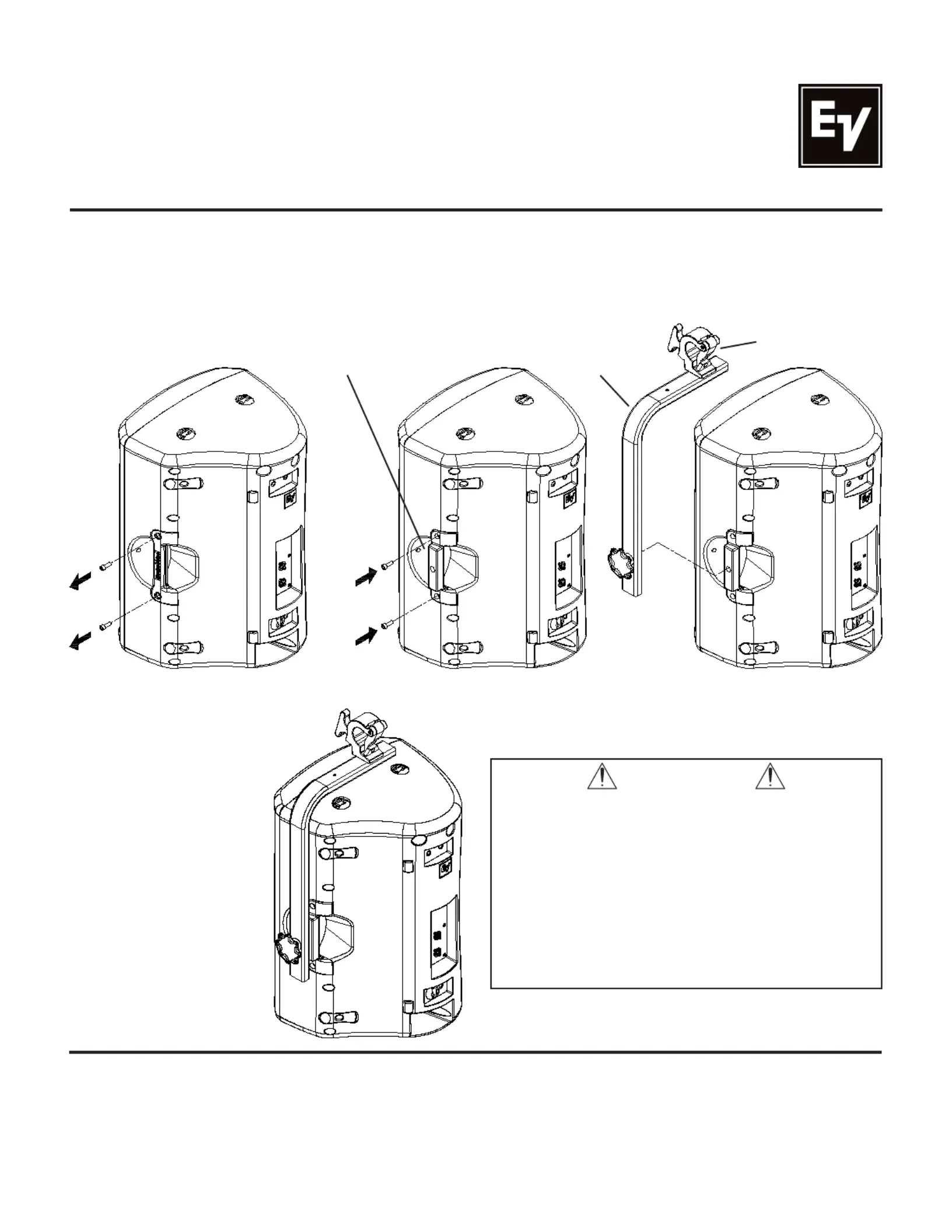

Step 1: Remove Handle Bolts and Handle Step 2: Attach HA-5 and Handle Bolts

*Note - Please consult Zx4

and Zx5 Series User Manuals

for additional information.

Fully Assembled with HA-5

Handle Mount, VSA-1 Strong-

Arm Mount, and TCA-1 Truss

Clamp Adaptor

Step 3: Attach VSA-1 Strong-Arm Mount
