CB5 Array Rigging Kit
The CB5 Array Rigging Kit features array brackets and hardware that allow you to array any Zx5 system. Its assembly is
quick and easy with the hardware already provided on your Zx5 Loudspeaker.
CB5
Array Rigging Kit
Installation Instructions

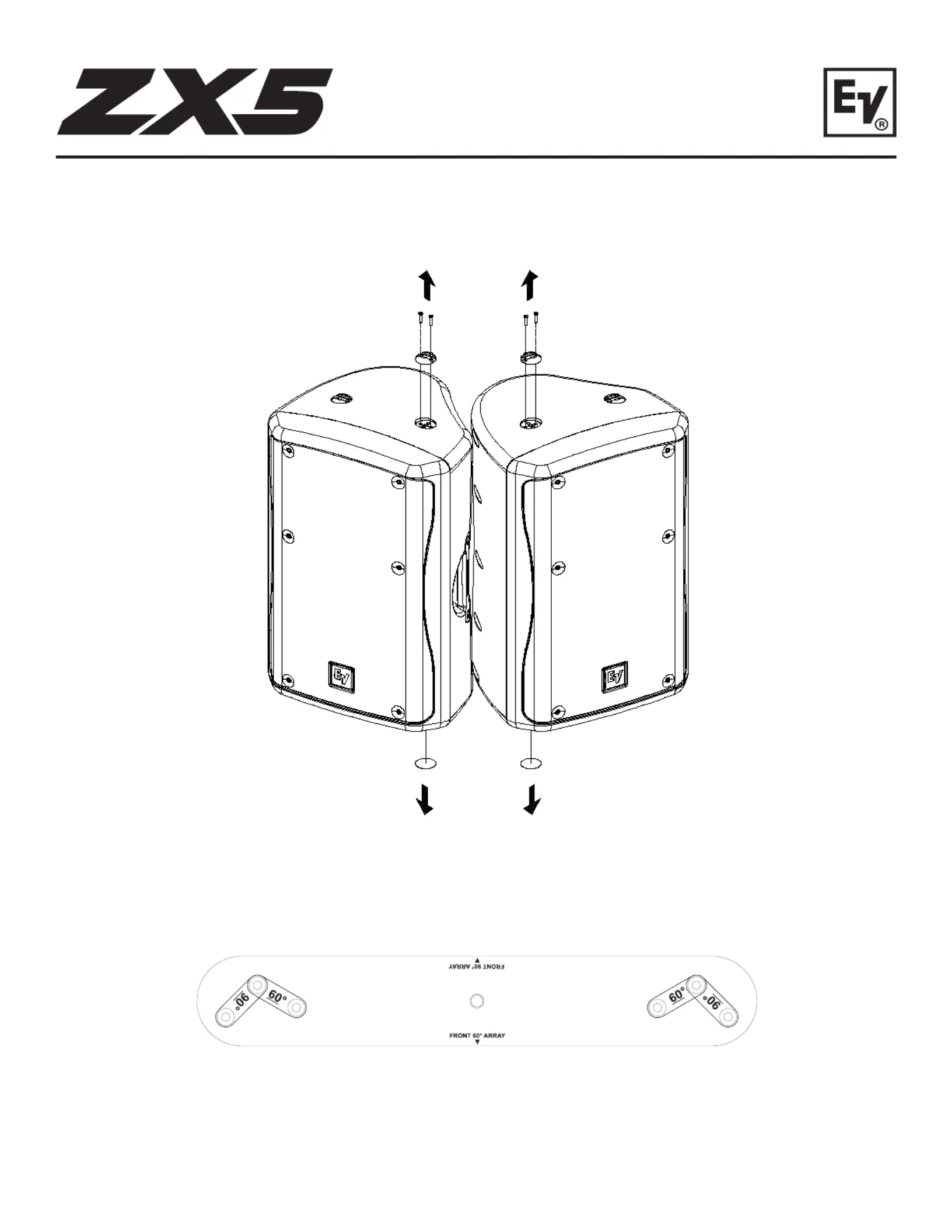

Step 1: Remove Single-Stud Fittings/Decals
Remove original Single-Stud Fittings by removing the four screws shown.
Remove the Bottom Decals with the use of a flat-head screwdriver.
Using the identification on the top of the Array Brackets, orient the Bracket
(Item A) to achieve the desired array angle. Eg. For a 60° splay, rotate the
bracket so that the “FRONT 60° ARRAY” points towards the front of the
ZX5 array.
U.S.A. and Canada only. For customer orders,
contact the Customer Service department at
800/392-3497 Fax: 800/955-6831
Europe, Africa and Middle East only. For customer orders,
contact the Customer Service department at
49 9421-706 0 Fax: 49 9421-706 265
For warranty information, contact the Service Repair department at:
616/695-6831 or 800/685-2606
For technical assistance, contact Technical Support at:
866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 8/2004
Part Number 38110-374 Rev A
WARNING: Suspending any object is
potentially dangerous and should only be
attempted by individuals who have a
thorough knowledge of the techniques and
regulations of rigging objects overhead.
Electro-Voice® strongly recommends that
Zx5 speakers be suspended taking into account all current
national, federal, state and local regulations. It is the
responsibility of the installer to ensure that Zx5 speakers are
safely installed in accordance with all such regulations. If
Zx5 speakers are suspended, Electro-Voice®
strongly
recommends that the system be inspected at least once a
year. If any sign of weakness or damage is detected,
remedial action should be taken immediately. Please consult
the Zx5 owner’s manual, which details the various hardware
kits that are available to safely suspend Zx5 speakers and
how each kit should be used.
MAKE SURE THAT THE SCREWS ARE
SECURELY FASTENED TO EACH SPEAKER
BEFORE SUSPENDING. ELECTRO-VOICE
STRONGLY RECOMMENDS THE USE OF
NON-PERMANENT THREADLOCK ON ALL
SCREW THREADS TO ASSURE SCREWS
WON’T BACK OUT DURING SPEAKER
OPERATION DUE TO VIBRATION.
Item Description Qty.
A Array Bracket 2
B Spacer 4
C Screw, 10-32 x 1-3/4”, Flat Head 8
D Eyebolt, M8 1
CB5 Array Rigging Kit Includes

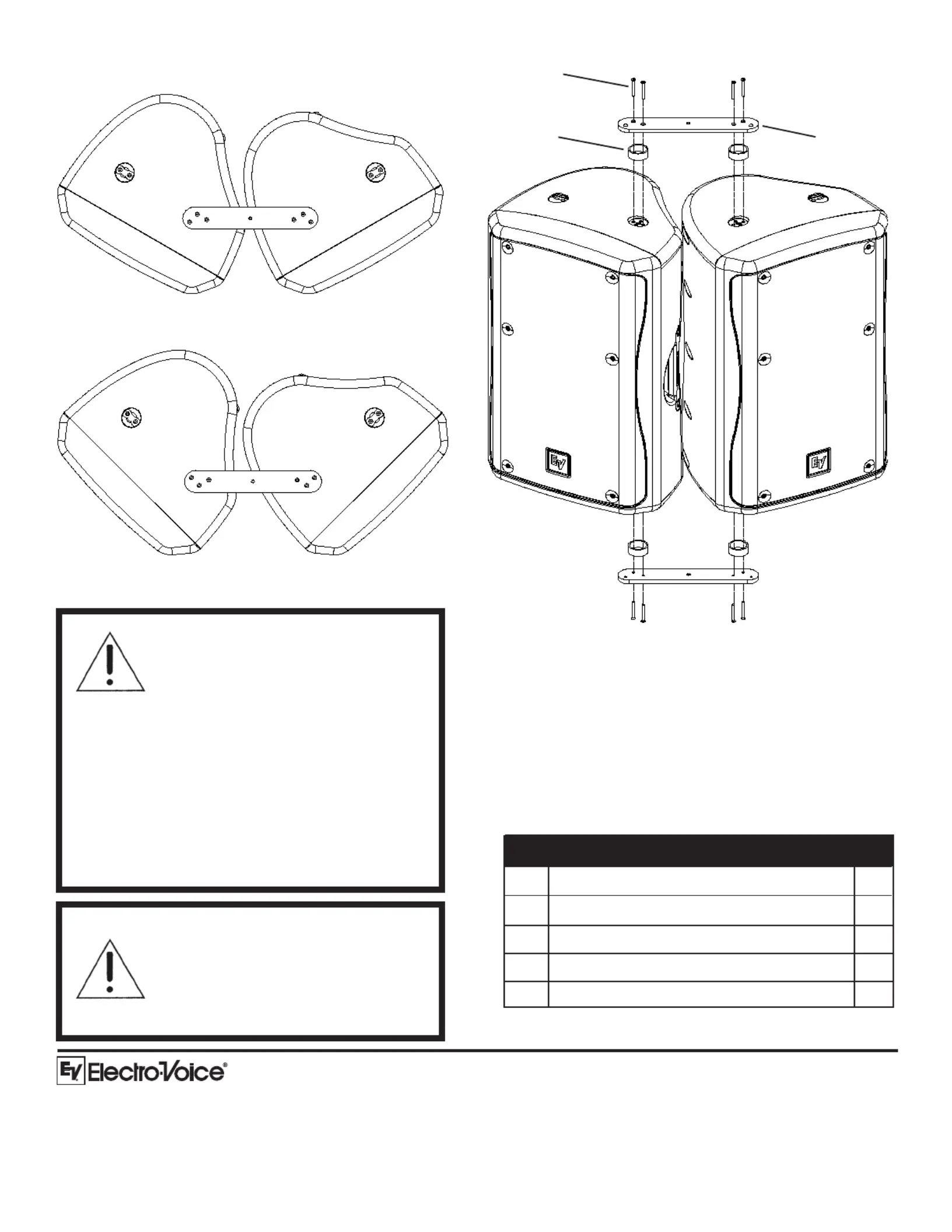

Step 3: Attach Array Brackets
Using the four spacers (Item B) supplied, attach
array brackets (Item A) to the speakers by
sliding the eight screws (Item C) through the
holes circled and labeled the desired array
angle. Attach the included eyebolt (Item D) to
the bottom bracket for a 2-speaker array pull-up
point. Please consult the system manual for
other array configurations.
60° Splay
90° Splay
Item C
Item A
Item B
