Side 1/20

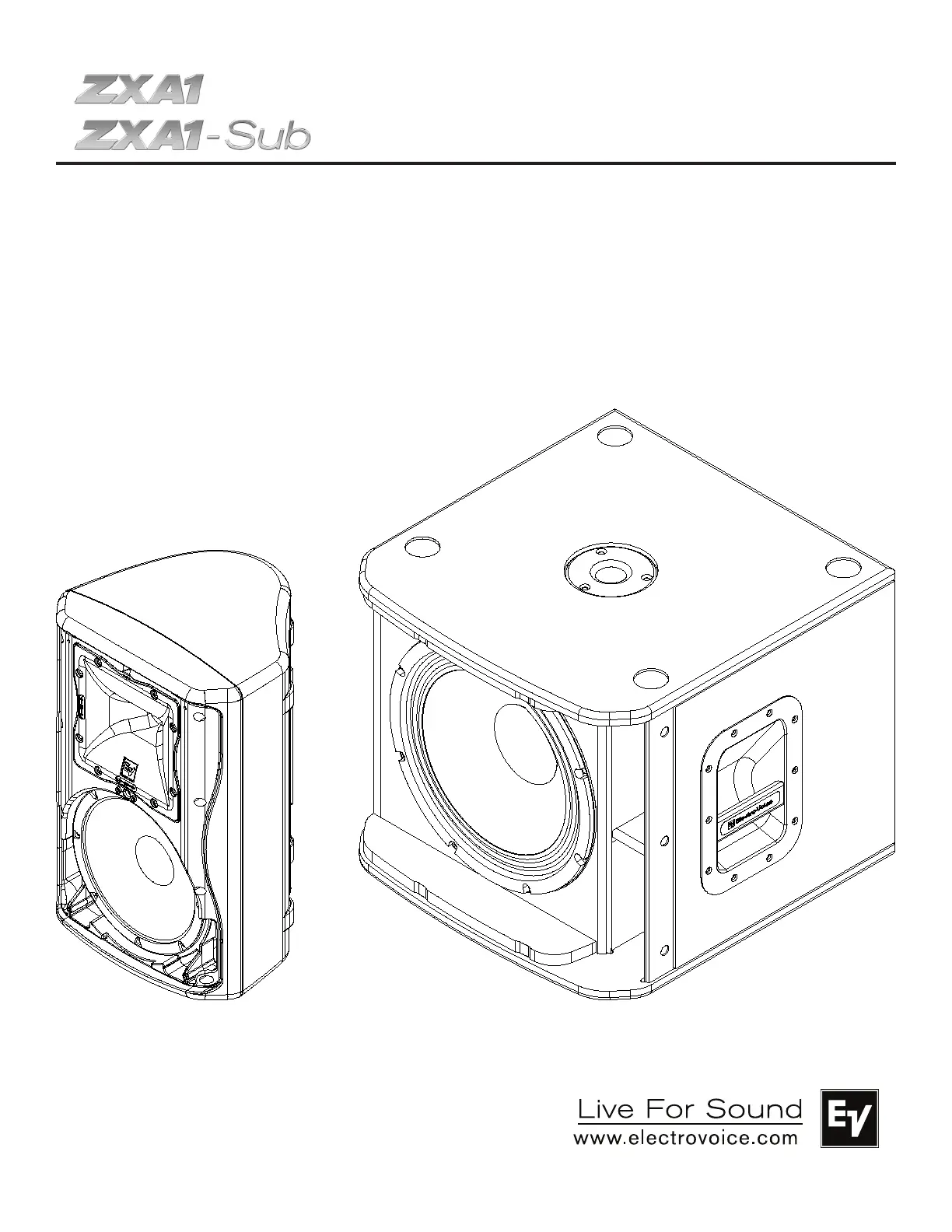

ZxA1 Series

Loudspeaker

Owner’s Manual

ZxA1

ZxA1-Sub

Electro-Voice ZxA1 Series Owner’s Manual

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed

to rain or moisture, does not operate normally, or has been dropped

14. To completely disconnect AC power from this apparatus, the power supply cord must be unplugged.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on this

apparatus.

16. The AC plug of the power supply cord shall remain readily operable. The plug of the power supply cord is used as a disconnect device.

The lightning ﬂash with arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufﬁcient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the appliance.

The asterisk within an equilateral triangle is intended to inform

the user to necessary installation or removal instructions

regarding equipment or hardware use relating to the system.

Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European Union and other European

countries with individual national policies on the management of WEEE) The symbol on the product or on its packaging indicates that this

product may not be treated as regular household waste, but has to be disposed through returning it at an Electro-Voice dealer.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.

WARNING: CONNECT ONLY TO MAINS SOCKET WITH

PROTECTIVE EARTHING CONNECTION.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT: Do not modify this unit! Changes or modiﬁcations not expressly approved by the manufacturer could void the user’s

authority, granted by the FCC, to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Information

Electro-Voice ZxA1 Series Owner’s Manual

• If ZxA1 loudspeakers are used outdoors on a sunny day, place the loudspeakers in

a shaded or covered area. The loudspeaker amplifiers have protection circuits that

temporarily shut the loudspeaker off when extremely high temperatures are reached.

This can happen on hot days when the loudspeaker is in direct sunlight.

• Do not use ZxA1 loudspeakers in an environment where temperatures exceed +40°C (104°F).

• Never expose a ZxA1 loudspeaker to rain, water, or high moisture.

• Electro-Voice ZxA1 loudspeakers are easily capable of generating sound pressure levels sufficient

to cause permanent hearing damage to anyone within normal coverage distance. Caution

should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.

Precautions

Table Of Contents

Description .............................................................................................................................................................. 4

Quick Setup ............................................................................................................................................................ 4

System Features..................................................................................................................................................... 5

Speciﬁcations ......................................................................................................................................................... 5

Tripod and Floor Monitor Operation .................................................................................................................. 6

Suspending ZxA1 Loudspeakers ....................................................................................................................... 8

Rotating the Horn .................................................................................................................................................. 9

Rotating the Logo .................................................................................................................................................. 9

Ampliﬁer Controls ................................................................................................................................................ 10

ZxA1 Ampliﬁer Controls .....................................................................................................................................11

ZxA1-Sub Ampliﬁer Controls ............................................................................................................................12

Recommended Conﬁgurations ......................................................................................................................... 13

Dimensions ............................................................................................................................................................17

Frequency Response Graphs ...........................................................................................................................18

ZxA1 Model Reference Table ............................................................................................................................ 18

Troubleshooting .................................................................................................................................................... 19

Produkspesifikasjoner

Merke:	Electro-Voice
Kategori:	Høyttaler
Modell:	ZxA1-Sub
Strømkildetype:	AC
Pakkevekt:	26500 g
Sertifisering:	CE
Høyttalerkabinett:	Lukket
Antall subwoofere:	1
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Sort
Subwoofer-vekt:	20900 g
Subwoofer RMS-styrke:	700 W
Subwoofer-driverdiameter (imperisk):	12 "
XLR i:	Ja
Subwoofer-type:	Aktiv subwoofer
Frekvensomgang subwoofer:	44 - 118 Hz
Bredde subwoofer:	444.5 mm
Dybde subwoofer:	457.2 mm
Høyde subwoofer:	400 mm
Overgangsfrekvens subwoofer:	100 - 100 Hz
Diameter på subwoofer-driver:	305 mm
Subwoofer-sensitivitet:	126 dB
