Side 1/5

5.2.2016 FiiOBornforMusicandHappy

http://fiio.net/en/products/46/parameters 1/5

Features

Specifications

Review

Gallery

Comparison

FirmwareDownload

BuyNow

Home



Products



GeneralSpecifications

Model/Number K5 HeadphonePort 6.35mmstereoJack

Color Titanium DriveAbility 16~300Ω

Dimensions 120mm×130mm×55mm VolumeControl Viaanalogpotentiometer(incl.powerswitch)

Weight 450g Gain

LOW：0dB

MID：6dB

HIGH：12dB

PartialPerformanceParametersforHeadphoneOutput

OutputPower1 >1.7W（16Ω/THD+N＜1%) OutputImpedance ＜1Ω（32ΩTHD+N<1%）

OutputPower2 >1.5W（32Ω/THD+N＜1%) Crosstalk ＞70dB(1kHz)

OutputPower3 >150mW（300Ω/THD+N＜1%) THD+N ＜0.002%(1kHz32Ω)

SNR ≥110dB(A-weight)[AUXIN] MAXOutputVoltage ＞20Vp-p

FrequencyResponse 20Hz~20kHz±0.2dB  

PartialPerformanceParametersforLineOutput

LineOutputLeveland

TND+N

K5→X1：1.37V（THD+N：0.008%）

K5→X3II：1.36V（THD+N：0.008%）

K5→X5II：1.05V（THD+N：0.004%

K5→X7：1.90V（THD+N：0.004%）

K5→E17K：1.50V（THD+N：0.009%）

0dB1KHz，load：10KΩ

PartialPerformanceParametersforBalanceLineOutput

LineOutputLeveland

TND+N

K5→X5II：1.05V（THD：0.004%）

K5→X7：1.90V（THD：0.004%）

0dB1KHz，load：10KΩ

PowerandBattery

Power DC15V/1.5A BatteryCapacity N/A



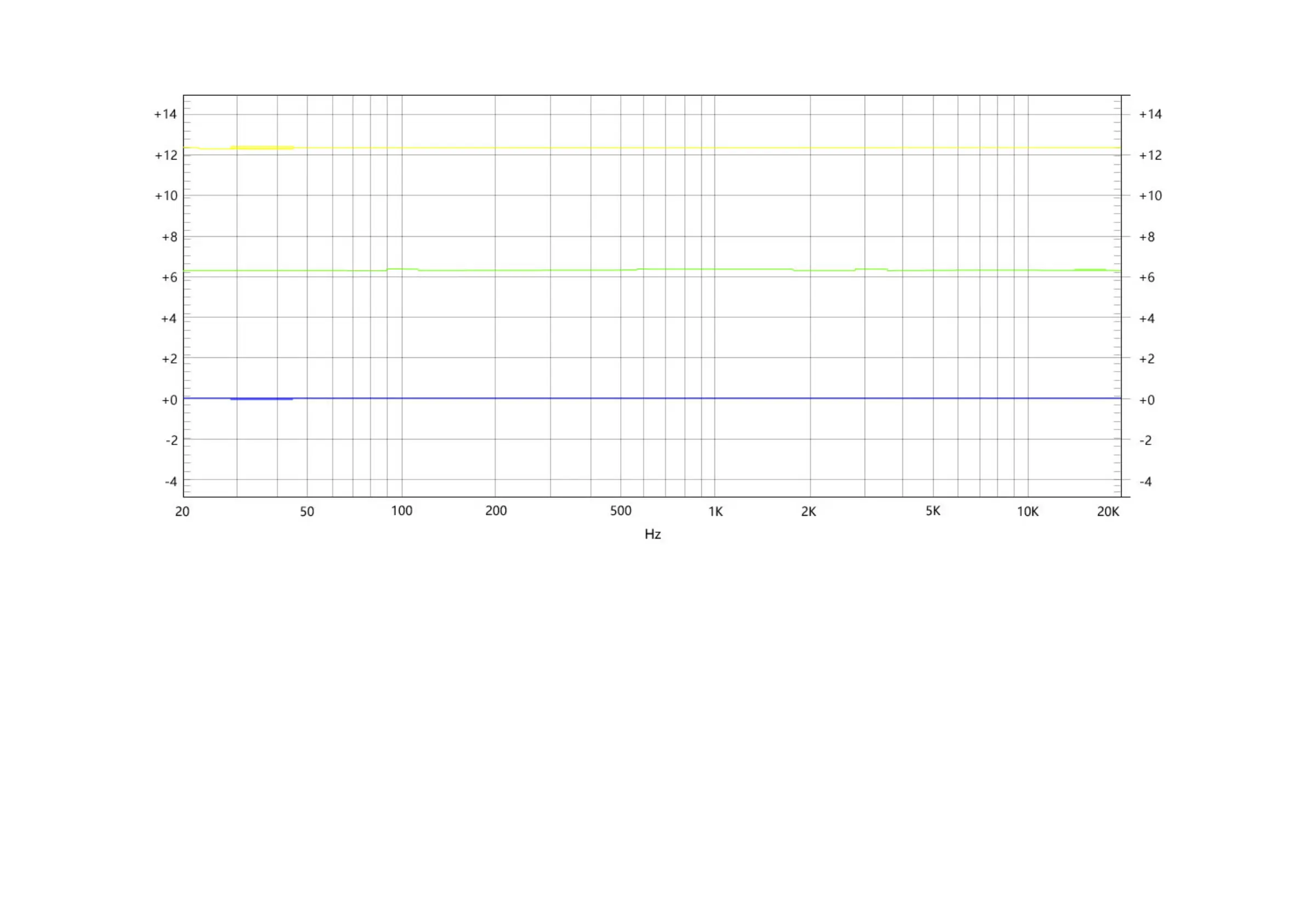

FrequencyResponsediagramofcurves

Testcondition：play-5dBsinusoidalsignal，Headphoneoutput

Blue：LOW;

Green：MID;

Yellow：HIGH.

UserLogin | Registration CommunityForum

   中文简体

Home WheretoBuy Products News Support CheckAuthenticity

地图

名片

意见

反馈

5.2.2016 FiiOBornforMusicandHappy

http://fiio.net/en/products/46/parameters 2/5

Distortiondiagramofcurve1.

Testcondition：play-5dBsinusoidalsignal,Headphoneoutput.

Gain=L;Inputlevel=2.2V）

Produkspesifikasjoner

Merke:	Fiio
Kategori:	hodetelefon
Modell:	K5
Vekt:	450 g
Bredde:	130 mm
Dybde:	55 mm
Høyde:	120 mm
Strømkilde:	AC
Antall USB 2.0-porter:	1
Produktfarge:	Titan
Hodetelefontilkobling:	3.5mm
Kabler inkludert:	AC
Lydinngang (V/H) inn:	2
inngangsimpedans:	32 Ω
Signal-til-støy-forhold (SNR):	110 dB
Total Harmonic Distortion (THD):	1
Line-out:	Ja
Frekvensrekkevidde:	20 - 20000 Hz
Peak effekt per kanal:	1.5 W
