Fusion CA-ML600 Bruksanvisning
Les nedenfor 📖 manual på norsk for Fusion CA-ML600 (15 sider) i kategorien Bilradio. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/15

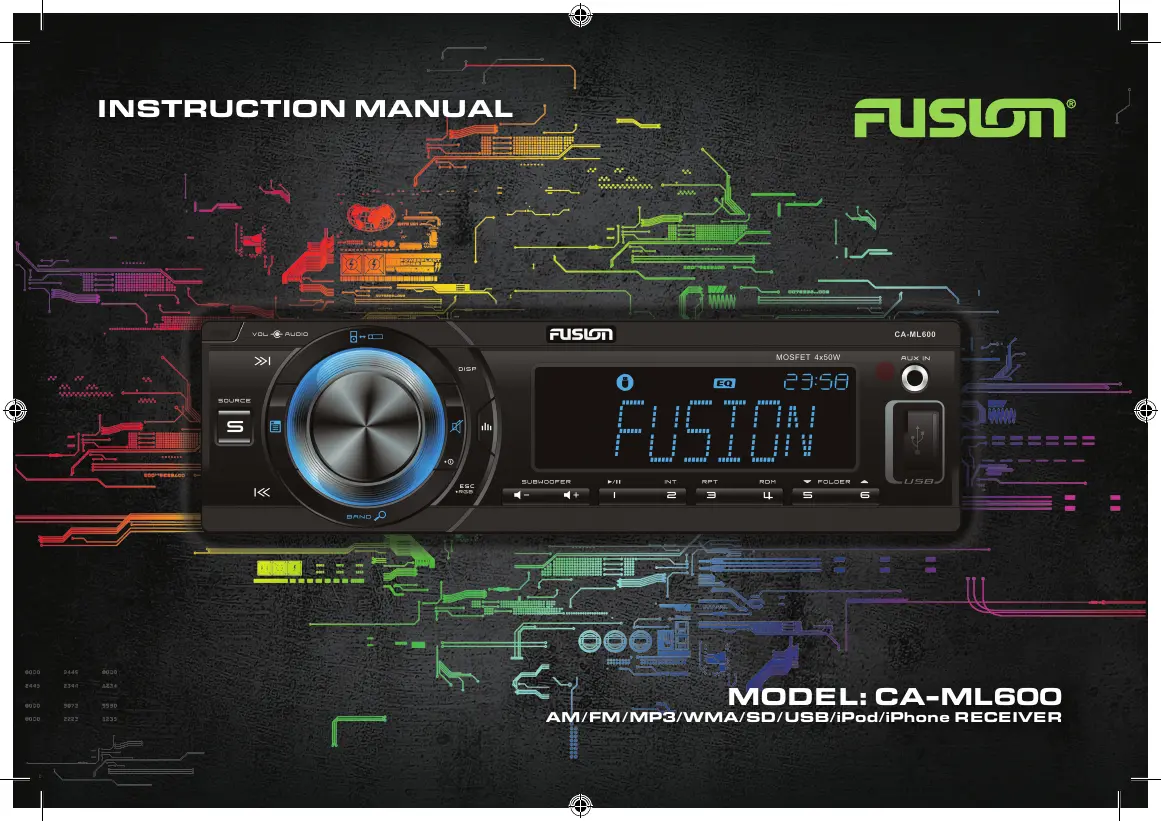

MODEL: CA-ML600
AM/FM/MP3/WMA/SD/USB/iPod/iPhone RECEIVER
INSTRUCTION MANUAL
32
CONTENTS
Precautions & Maintenance P3
Quick Start Guide P3
Dashboard Installation P4
Removal / Re-Attachment of the Face P5
Connecting the System P6
Basic Operations P7
Audio Functions P8
System Menu P9
Radio Operation P10
RDS Operation P10
iPod / iPhone Operation P11
Media Playback (USB/SD/Aux In) P12
Additional Media Playback Options P14
Troubleshooting P16
How To Reset The Unit P16
RDS Program Types & Descriptions P17
Product Specifications P17
Supported File Types P18
Licensing P18
Warranty P20-27
PRECAUTIONS &
MAINTENANCE
GENERAL
• When cleaning the vehicle, do not get water or cleaning
fluids on the unit.
• Do not attempt to open the unit chassis. There are no
user servicable parts or adjustments inside.
• This unit has been tested with all compatible authentic
iPod/iPhone models under normal expected operating
conditions, free from any pre-existing defects in either the
unit or iPod/iPhone and with unmodified or “jailbroken”
software.
• No Responsibility can be taken for use of the unit other
than under normally expected operating conditions
in conjunction with fully functional and undamaged
iPod/iPhone units which have been manufactured and
authorised by Apple Inc.
• Ensure that only a Apple sync iPhone/iPod cable is used
for connection to this unit.
QUICK START GUIDE
TUNER REGION SETTING
When the unit is powered up for the first time (or the
battery is disconnected or runs flat), you will need to set
your tuner region.
1. When you press the power button to turn on the unit
[OCEANIA] will be displayed on the LCD screen as the
default Tuner region.
2. Rotate the Encoder Volume Control to select an option:
OCEANIA (Australia / New Zealand), USA, EUROPE or
RUSSIA.
3. Press the Encoder Volume Control to store your selection
and exit to the Tuner mode.
If you make the wrong selection, you may not be able to tune
in to your desired stations. This setting can be easily changed
from the SYSTEM MENU — see page 9.
SELECTING THE MUSIC SOURCE
Press the source button to cycle through the following
sources (if available) — Radio > USB > SD > AUX
RGB 32K+ COLOUR SELECTION
The initial colour setting for this unit is Colour Scan. To
quickly enter the 32K+ RGB colour menu, press and hold
the ESC/RGB button
Register Your Product P19
Warranty P20-27
32
CONTENTS
Precautions & Maintenance P3
Quick Start Guide P3
Dashboard Installation P4
Removal / Re-Attachment of the Face P5
Connecting the System P6
Basic Operations P7
Audio Functions P8
System Menu P9
Radio Operation P10
RDS Operation P10
iPod / iPhone Operation P11
Media Playback (USB/SD/Aux In) P12
Additional Media Playback Options P14
Troubleshooting P16
How To Reset The Unit P16
RDS Program Types & Descriptions P17
Product Specifications P17
Supported File Types P18
Licensing P18
Warranty P20-27
PRECAUTIONS &
MAINTENANCE
GENERAL
• When cleaning the vehicle, do not get water or cleaning
fluids on the unit.
• Do not attempt to open the unit chassis. There are no
user servicable parts or adjustments inside.
• This unit has been tested with all compatible authentic
iPod/iPhone models under normal expected operating
conditions, free from any pre-existing defects in either the
unit or iPod/iPhone and with unmodified or “jailbroken”
software.
• No Responsibility can be taken for use of the unit other
than under normally expected operating conditions
in conjunction with fully functional and undamaged
iPod/iPhone units which have been manufactured and
authorised by Apple Inc.
• Ensure that only a Apple sync iPhone/iPod cable is used
for connection to this unit.
QUICK START GUIDE
TUNER REGION SETTING
When the unit is powered up for the first time (or the
battery is disconnected or runs flat), you will need to set
your tuner region.
1. When you press the power button to turn on the unit
[OCEANIA] will be displayed on the LCD screen as the
default Tuner region.
2. Rotate the Encoder Volume Control to select an option:
OCEANIA (Australia / New Zealand), USA, EUROPE or
RUSSIA.
3. Press the Encoder Volume Control to store your selection
and exit to the Tuner mode.
If you make the wrong selection, you may not be able to tune
in to your desired stations. This setting can be easily changed
from the SYSTEM MENU — see page 9.
SELECTING THE MUSIC SOURCE
Press the source button to cycle through the following
sources (if available) — Radio > USB > SD > AUX
RGB 32K+ COLOUR SELECTION
The initial colour setting for this unit is Colour Scan. To
quickly enter the 32K+ RGB colour menu, press and hold
the ESC/RGB button
54
You can then rotate the Encoder Volume Control to select
from the following pre-set display colours:
WHITE: GREEN1: GREEN2: GREEN3: AMBER: PINK1:
PINK2: PURPLE1: PURPLE2: BLUE1: BLUE2: USER
COLOUR: ORANGE
Press the ESC/RGB button to confirm your selection.
See Page 10 for details on how to set the USER COLOUR
REMOVAL/RE-ATTACHMENT
OF THE FACE
1. Press the Panel OPEN button.
2. After flipping down the front panel, push it to the right (A),
then draw the left of the front panel outwards (B)
3. To re-attach the face, please complete the above steps in
reverse.
DASHBOARD
INSTALLATION
The following illustration shows a typical installation.
If you have any questions or require information regarding
installation kits, consult your car audio retailer.
If you are not sure how to install this unit correctly, have it
installed by a qualified installer.
STORE DEMO MODE
When you connect the unit for the
first time and press the Mute/Power
button the unit will operate in
Demo Mode. To exit Demo Mode ,
press the Mute/Power Button again.
See Page 10 to turn Demo Mode off.
2. Hold the left-hand side of the Face and pull forward
3. Pull the Face towards you (1) to disengage it from the chassis (2).
