Side 1/4

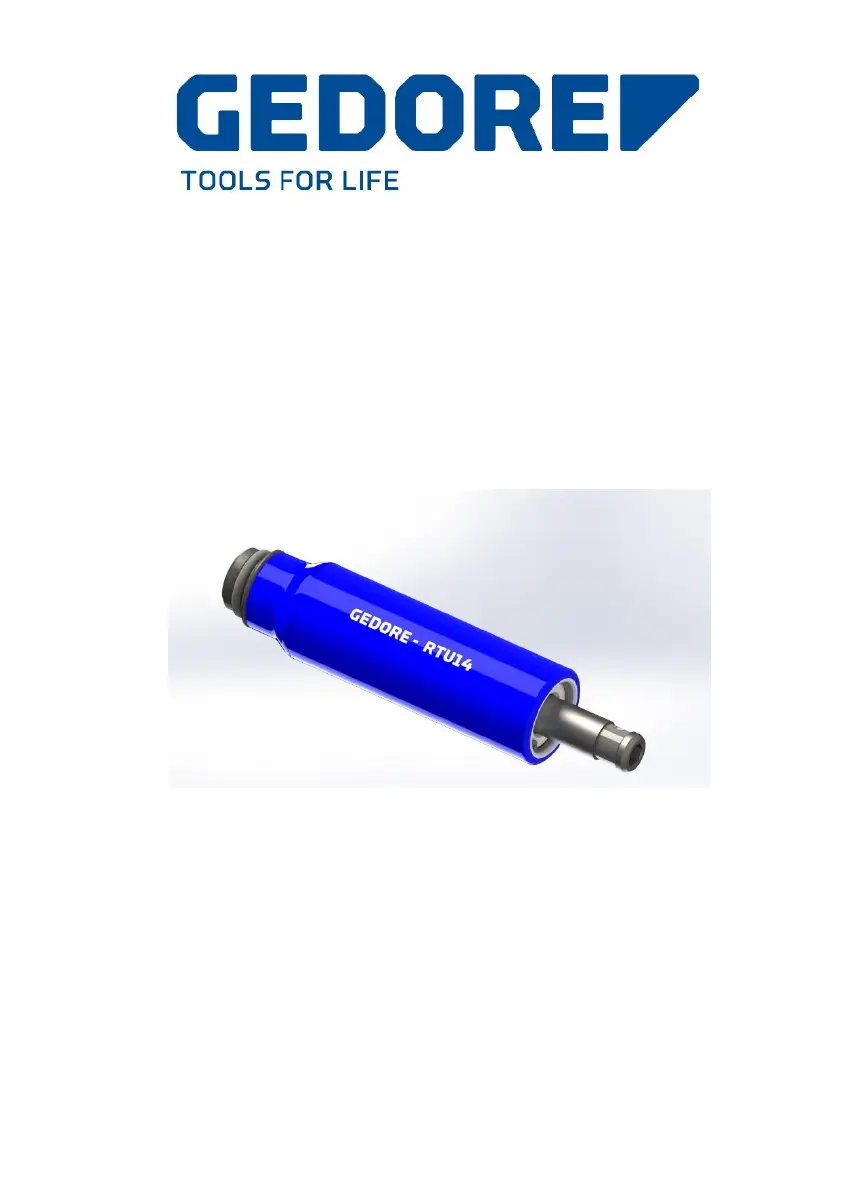

RTU 1, 4 & 14

Instructions Number P35830

Issue 1

How to adjust your RTU

To check setting:

Use a Torque analyser

To adjust the torque setting:

1. Remove o-ring, retaining pin and hexagon adaptor.

2. Using of 5mm hexagon key, turn ANTICLOCKWISE to release.

3. Remove the 5mm hexagon key, and insert 4mm hexagon key.

4. Turn the 4mm hexagon key CLOCKWISE to INCREASE torque, or

ANTI-CLOCKWISE to REDUCE the torque.

5. Remove 4mm hexagon key and check the torque setting on a

suitable calibration device.

6. Insert 5mm hexagon key, and turn CLOCKWISE to lock off.

7. Replace hexagon adaptor, retaining pin and o-ring.

Servicing Information

Regular servicing of your Torque Tool by competent personnel is important to

ensure it continues to perform correctly.

HEXAGON ADAPTER

O-RING

RETAINING PIN

Produkspesifikasjoner

Merke:	Gedore
Kategori:	skrumaskin
Modell:	RTU 1000
Produkttype:	Enkel
Håndtaksfarge:	Sølv
Skrutrekkertype:	Momentskruetrekker
Antall skruetrekkere:	1
Kalibreringsrekkevidde:	4 - 10 Nm
Størrelser på skruetrekkere/biter:	3/8"
