型号:
Instruction Manual | 说明手册
Chinese English Bilingual | 中英文双语
705-LE1500-00
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fu RD West, Fuyong zhou
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
http://www.godox.com
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
Made In China

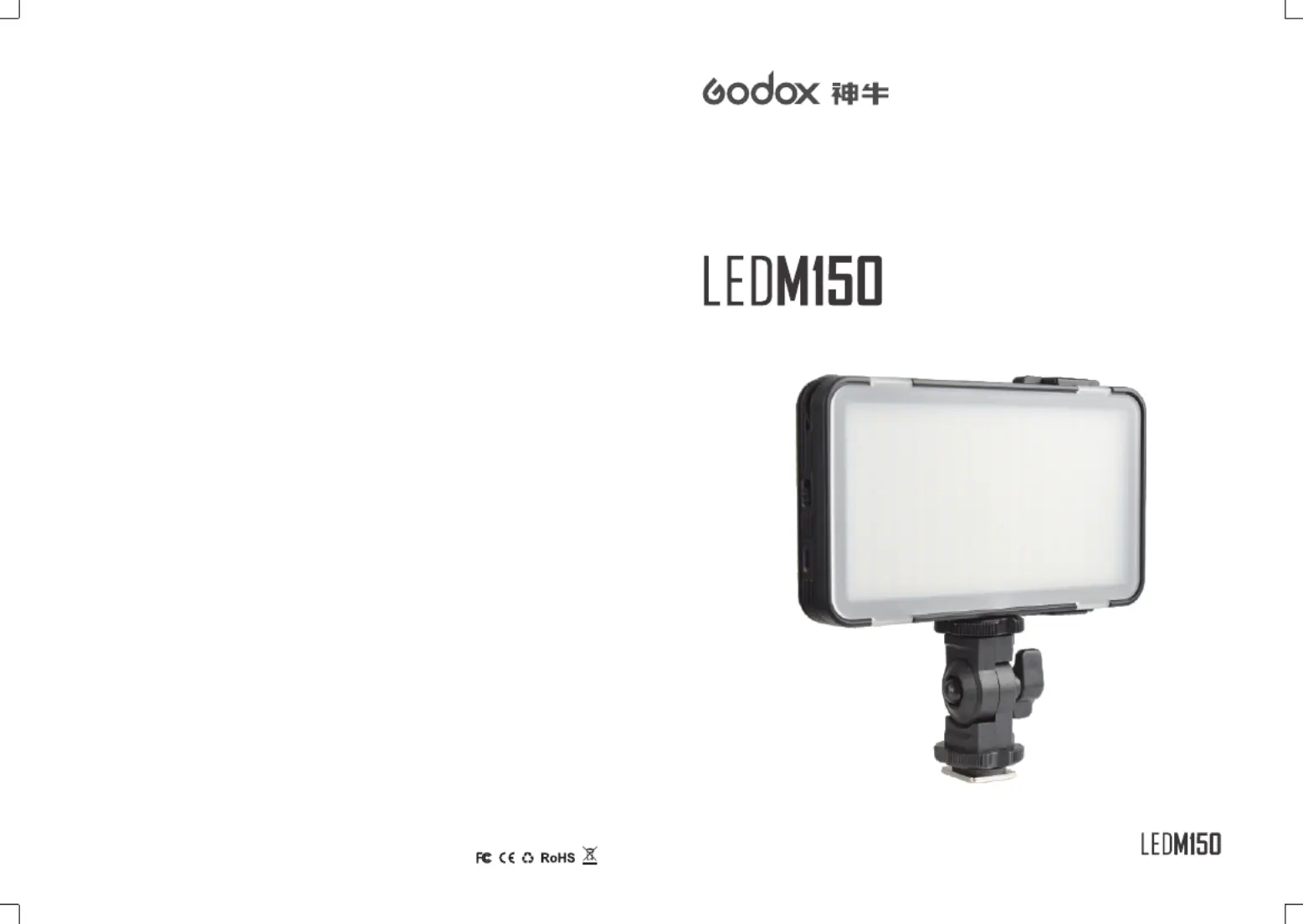

迷你LED摄影灯
Mini LED Video Light
Foreword
Warning
Thank you for purchasing this Godox product!
LEDM150 Mini video light is excellent for macrophotography, wedding shooting, product
shooting, photojournalistic and video recording, etc. The lightweight and portable light
provides high brightness and convenient operation.
Features:
● High-quality LED bulbs
● Built-in lithium battery with great portability
● Soft light and even illumination
● Included with a L-type bracket
● Fits almost any cameras, camcorders and mobile phones
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to
an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of waterproof
in rainy or damp environment.
Do not use the flash unit in the presence of flammable gases, chemicals and other
similar materials. In certain circumstance, these materials may be sensitive to the
strong light emitting from this flash unit and fire or electromagnetic interference may
result.
As this product has built-in lithium battery, do not disassemble, impact, squeeze or
put it into fire. If serious bulge occurs, please do not use. Do not use or store the
product if the ambient temperature reads over 50°C. Please charge the product with
specialized charger and correctly operate it within the defined voltage and working
temperate according to the instruction manual.
Body
Parts
Select Dial for
Light Brightness
LED Beads
ON/OFF Power Switch
USB Port
Diffuser
1/4" Bracket Mounting Hole
Mobile Phone
Mounting Bracket
L-type Bracket
Locking Ring
Heat Dissipation Groove
Battery Indicator
Charging Status Indicator Lamp
Power Management
1. Power Supply
Built-in large capacity lithium battery 3.7V/3000mAh.
● LEDM150 is able to provide the maximum brightness continously up to 60 minutes
when fully charged.
The indicator light is to display the battery level, when the light is blinking, Note:
please charge in time.
2. Charging the Battery
● Insert the mobile phone charger to the USB Port, after 4 hours, the light can be fully
charged (with 5V1A charger).
The Status Indicator Lamp lights up when charging and turn off when the battery is
fully charged.
Using the Video Light
1. By the Handle
● Install the L-type Bracket onto the 1/4" Bracket
Mounting Hole.
● tighten the upper locking ring of the L-type Bracket.
2. On the Light Stand
● Install the L-type Bracket onto the 1/4" Bracket
Mounting Hole and tighten the upper locking ring
of the L-type Bracket.
● Install the light stand onto the 1/4" Bracket
Mounting Hole.
3. On the Mobile Phone
● Push into and lock the Mounting Bracket from the
right direction of the light, pull out from the
opposite direction of pushing in.
● Install the Mobile Phone onto the Mounting
Bracket.
Battery Indicator
USB Port
