Side 1/7

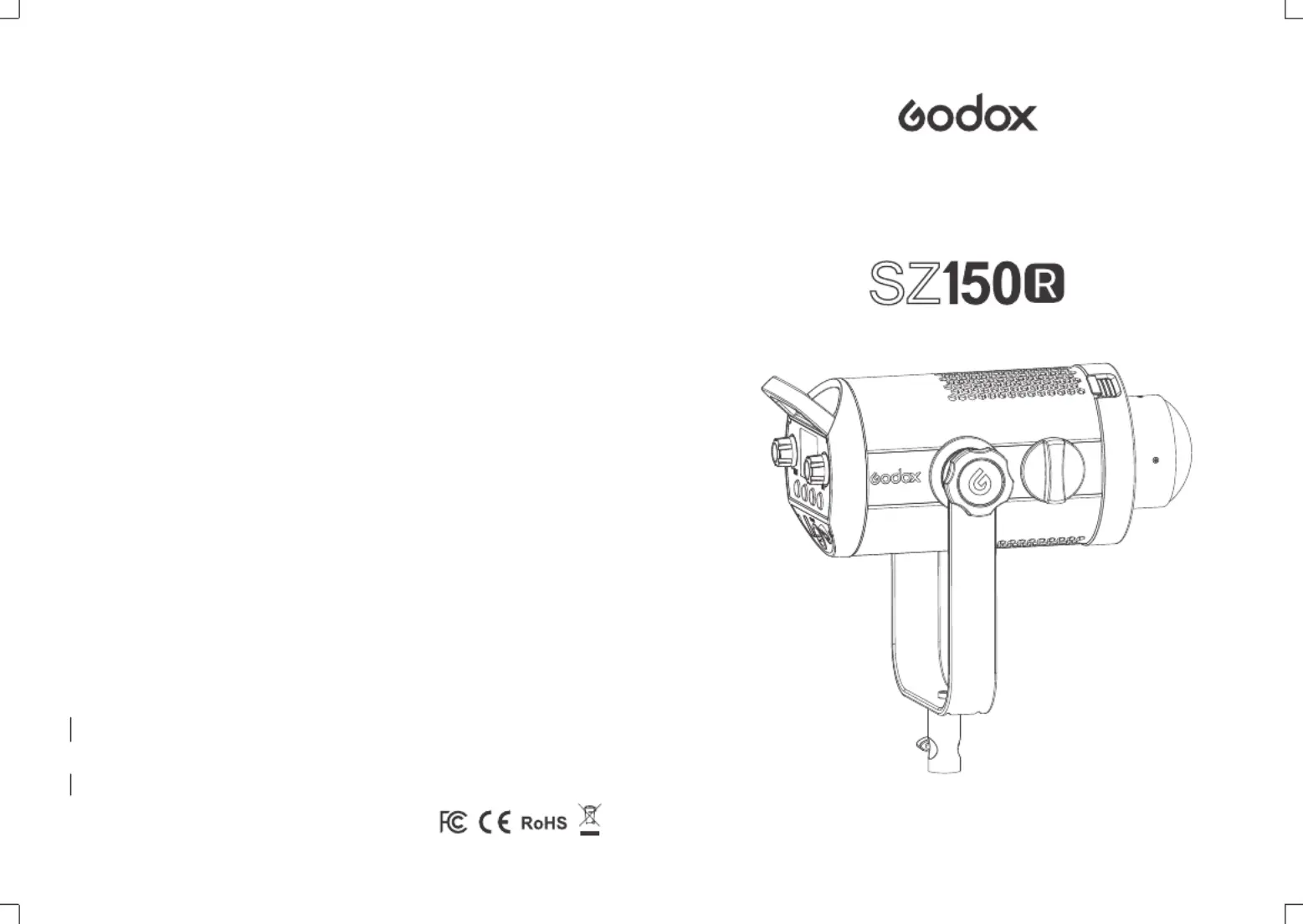

Instruction Manual



705-SZ150R-00

Made in China



: 2

: 0755-29609320(8062) : 0755-25723423 : godox@godox.com

godox.com

Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,

Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com

GODOX Photo Equipment Co., Ltd.

RGB LED

Zoom RGB LED Video Light

1. Different Function Display

from 13 categories which are

divided into 39 kinds

2. DIM: Brightness Display

• Menu Interface

1. CH Chanel

2. GR Group

3. 2.4G Wireless ID

4. DMX Channel

5. Fan Switch

6. Bluetooth Password Reset

Function

7. V0.3 (Software Version)

8. MAC(Bluetooth number)

• FX Interface

• HSI Interface

1. H: Hue

2. S: Saturation

3. DIM: Brightness Display

1. 2800K~6500K: Color Temperature

2. G/M: Hue

3. DIM: Brightness Display

• CCT Interface

LCD Panel

CH: 32

ID: 99

DMX:512

GR: A :ON

RESET

Ver:0.3 MAC:DA4C

DIM:75%

Included Items

Body *1 Reflector *1 Protect Cover *1

Power Cable *1

Instruction Manual *1

Adapter *1

- 15 - - 16 -

DIM:75%

G/M:-50

0 50-50

4100K

2800 6500

CHCH

3232

GRGR

CCT

DIM:75%

CHCH

3232

GRGR

HSI

H:240°

S:90%

0 180 360° ° °

0 1000

Steel Cable *1

Clip *1LSA-18 Power Adapter

Holder *1

Portable Bag *1

Optional Accessory

The product can be used in combination with the following optional accessories

so as to achieve best photography effects:

RC-R9 Remote control, inverter, softbox, umbrella, light stand, honey comb,

beauty dish, snoot, etc.

Power Supply

Connect the SZ150R to power source with adapter and power cable. Press the

power switch to turn on the LED light.

• Menu Button

Press the MENU button and the LED light will

enter menu interface. In this interface, CH

channel (1 to 32), GR group (A/B/C/D/E/F,0-9),

ID (OFF/01 to 99), DMX function (OFF/001 to

512), Fan (OFF/ON) and Bluetooth can be set.

Operation

1. Setting

• FX Button

1. Press the FX button and the LED light will

enter FX interface. In this interface, you can set

37 different special effects which are divided

into 13 categories according to your demands.

No.

Display

Situation

Display

Slow speed

Flash

Birthday party

Discontinuous

Slow speed

Discontinuous

Firewood

Brief

Strong flash

Medium speed

Press conference

KTV

Frequent

Medium speed

Frequent

Campfire

Continuous

Frequent flash

Quick speed

Paparazzi

Disco

Sustainable

Quick speed

Sustainable

Fire hazard

Show

Quick flash

Display IIIDisplay II

2. In FX mode, turn the FN select dial to choose

the special effect modes from 1 to 13 categories.

And the modes will be selected circularly by

turning the select dial. After choosing the current

mode, press down the FN multifunctional select

dial from and And the modes will display , .

circularly when keeping pressing the FN

multifunctional select dial. Turn the DIM select dial

to choose brightness from 0% to 100% and the

brightness value will be precisely displayed on the

LCD panel.

- 17 - - 18 -

CH: 32

ID: 99

DMX:512

GR: A

:ON

RESET

Ver:0.3 MAC:DA4C

DIM:75%

CH: 32

ID: 99

DMX:512

GR: A

:ON

RESET

Ver:0.3 MAC:DA4C

DC 36V

Produkspesifikasjoner

Merke:	Godox
Kategori:	lys
Modell:	SZ150R
Vekt:	2650 g
Bredde:	160 mm
Dybde:	200 mm
Høyde (min):	330 mm
Strålevinkel:	65 °
Justerbar fargetemperatur:	Ja
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 - 60 Hz
Fargetemperatur (min):	2800 K
Energiforbruk per 1000 timer:	- kWh
Reflektor inkludert:	Ja
Produktfarge:	Sort
Kabler inkludert:	AV
lys farge:	Variabel
Antall pærer:	1 ampuller
Belysning:	26000 lx
Total strøm:	150 W
Lyspæretype:	LED
Levetid, pære:	- timer
Fargetemperatur (maks):	6500 K
Antall:	1
Color Rendering Index (CRI):	97
