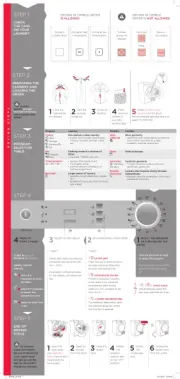

Side 1/2

PRESS TO

START / PAUSE 3

SELECT START DELAY

Select start delay by pressing

the button several times (30

min – 24 h).

Countdown will be indicated

on the display unit above the

key.

SET ADDITIONAL FUNCTIONS

START|PAUSE

30'

90'

60'

DRYING IN TUMBLE DRYER

IS ALLOWED

DRYING IN TUMBLE

DRYER IS NOT ALLOWED

Drying at high

temperature

Drying at low

temperature

Tumble

drying not

allowed

Place on

flat surface

Hang

Hang wetDrying in

tumble dryer

Close the

zips and tie

any ribbons.

Close the

buttons.2

Turn the

pockets

inside out.

Place

sensitive

clothes in

a laundry

washing bag.

Insert wrung or spun

laundry into the drum.

Recommended spinning rate is at

least min. 800 rpm.

STEP 1

CHECK

THE TAGS

ON YOUR

LAUNDRY

STEP 2

PREPARING THE

LAUNDRY AND

LOADING THE

DRYER

Sort the

laundry

by type

and fabric thickness

(see program table

below)

STEP 3

PROGRAM

SELECTION

TABLE

Program Laundry

Cotton

Ultra

Storage

Standard

Iron

Non-delicate cotton laundry

• towels, terry towels, stockinette,

T-shirts, trousers, kitchen cloths

etc.

Mix

Storage

Iron

Clothing made of a mixture of

fibres

• trousers, T-shirts, suits etc.

Timed program

30´/ 60´/ 90´

• laundry that needs to be

thoroughly dried

• a small amount of laundry, or

individual garments

Bed linen

Larger pieces of laundry

• bedding, large tablecloths, towels

etc.

• prevents the laundry from forming

into a bulk.

Program Laundry

Wool

softening

Wool garments

• garments with mixed fibres containing

wool, which you wish to soften

• sweaters, scarves, shawls etc.

Shirts Shirts & blouses

Synthetics

Standard

Ultra

Synthetic garments

• T-shirts, trousers, suits, socks and

stockings, gowns etc.

Delicate

(Sensitive)

Laundry that requires drying at lower

temperatures

• blouses, delicate underwear, shirts with

additional decor etc.

STEP 4

START light is lit

PAUSE

light flashes

SIGNAL LIGHTS

ARE ON:

when it is

necessary to clean

the filter;

when it is necessary

to empty the

condensate tank;

when the child lock

is on.

STEP 5

END OF

DRYING

CYCLE

An acoustic

signal will indicate

the end of the drying

cycle. Signal lights

will light up and the

light on the START/

PAUSE key will flash.

EXTRA DRY

Press key up to three times to

increase the level of laundry

dryness and drying time.

ANTICREASE EXTRA

Prevents creasing if laundry

is not taken from the dryer

immediately after drying

(default is 2 h, possible to set

from 0-4 h).

LOWER TEMPERATURE

For delicates, depending upon

the selected program where

the function is applied.

= CHILD LOCK

Simultaneously press the

two keys and hold for 3 sec.

Turn the knob left or right

to select the program.

Turn the knob to the »OFF«

position to turn the dryer

off.

SELECT THE PROGRAM

OR TURN ON/OFF THE

DRYER

Unplug the

power cord

from the outlet.

Open the

dryer door

and clean the

filters (see section

Cleaning at the

back page).

Take the

laundry

from the drum.

Rotate

the

program

selector dial

to the " " OFF

position.

Empty

the

condensate

tank.

Close the

dryers

door.

D R Y I N G S T E P S

397006_en.indd 1

397006_en.indd 1397006_en.indd 1 10.4.2015 13:09:24

10.4.2015 13:09:24

10.4.2015 13:09:2410.4.2015 13:09:24

www.gorenje.com

SP 10 CLAS en (03-15)

Empty the

condensate tank after

each drying cycle.

Make sure the remains of

the fibres do not enter

the dryer as this may

clog the system.

CLEANING THE NET

FILTER

CLEANING

OF WATER

CONDENSER

EMPTYING THE

CONDENSATE TANK

(2)

Pull out the spout

at the opening for

easier emptying (only some

models).

Place an absorbent cloth on

the floor in front of the dryer.

Open the outer cover, then hold

the handle on the left side and

pull downwards.

Remove the closing lid.

Turn the condenser handle

upwards and use the handle

pull the condenser out.

Rinse both sides of the

condenser interior and dry

it well.

Use moist cloth to clean the

condenser mounting cavity.

Clean the filters

after each drying.

Be careful not to

harm yourself during

opening/closing of the

net filter cover.

TIPS

FOR ECONOMICAL

USE OF YOUR DRYER

FOR SMOOTH AND

SOFT LAUNDRY

• Dry the recommended amount of laundry in each

batch (see step 3 - Program Table).

• It is not recommended to dry laundry made

of particularly delicate fabrics that may be

deformed.

• Drying time will be shorter and power

consumption will be lower if the garments are

thoroughly wrung or spun before drying.

• Regular cleaning of the filters will lead to

optimum drying time and minimum power

consumption.

• Use of conditioner in the washing cycle is not

necessary when the clothes are dried in a dryer.

CLEANING THE

FILTER ON THE

LOWER SIDE OF

THE DOOR OPENING

Before emptying the drum,

clean the filter on the lower

door opening using your hand or

a damp cloth.

If the filter is clogged and

requires washing, remove it

from the support bed.

Rinse it under running water,

and dry it.

Make sure the filter snaps back

into place.

Clean the filter

after each drying

cycle.

If the filter is not

cleaned regularly,

airflow will be reduced

which in turn prolongs

the drying time.

Clean the water

condenser and its

mounting cavity at

least after every five

drying cycles

TIPS FOR ECONOMICAL USE TIPS FOR SMOOTH AND SOFT LAUNDRY

• Select the appropriate drying program to avoid

over-drying your laundry and problems with

ironing or shrinkage of fabric.

• Remove laundry right after the end of the drying

cycle to prevent it from creasing again.

• Dry smaller amount of laundry or single items

with the timed program. When drying smaller

amounts of laundry, the sensor may not perceive

the actual level of moisture.

Remove the condensate tank

from the dryer, 2

turn it upside down above

the sink or vessel to empty.

For detailed instructions please read the

extended manual.

QUICK INSTRUCTIONS

HOW TO USE YOUR

DRYER

M A I N T E N A N C E & C L E A N I N G

Lift the filter cover.

Scrape the filter cover to

remove the layer of lint and

threads.

Close the filter cover.

397006_en.indd 2

397006_en.indd 2397006_en.indd 2 10.4.2015 13:09:48

10.4.2015 13:09:48

10.4.2015 13:09:4810.4.2015 13:09:48

Produkspesifikasjoner

Merke:	Gorenje
Kategori:	tørkemaskin
Modell:	D744B
Innebygd skjerm:	Ja
Vekt:	38000 g
Bredde:	600 mm
Dybde:	600 mm
Høyde:	850 mm
Dørhengsel:	Venstre
Årlig energiforbruk:	504 kWh
Energiforbruk:	4.21 kWh
Tørkesystem:	Kondensasjon
Støynivå:	65 dB
Pakkevekt:	40000 g
Nominell kapasitet:	7 kg
Tørkeprogrammer:	Wool, Mix
Produktfarge:	Hvit
Pakkedybde:	685 mm
Pakkehøyde:	915 mm
Pakkebredde:	640 mm
Skjermtype:	LED
Kontrolltype:	Buttons, Rotary
Lastetype:	Frontmatet
Vendbare dører:	Ja
Dybde med åpen dør:	350 mm
Plassering av innretning:	Frittstående
Døråpeningsvinkel:	180 °
Gjenværende tid angis:	Ja
Syklustid:	120 min
Trommelvolum:	117 l
Maksimal sentrifugeringshastighet:	1600 RPM
Minimum spinnhastighet:	800 RPM
Anti-Crease-funksjon:	Ja
