Hannspree Hanns.G HP 246 PJB Bruksanvisning

Hannspree skjerm Hanns.G HP 246 PJB

Les nedenfor 📖 manual på norsk for Hannspree Hanns.G HP 246 PJB (20 sider) i kategorien skjerm. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/20

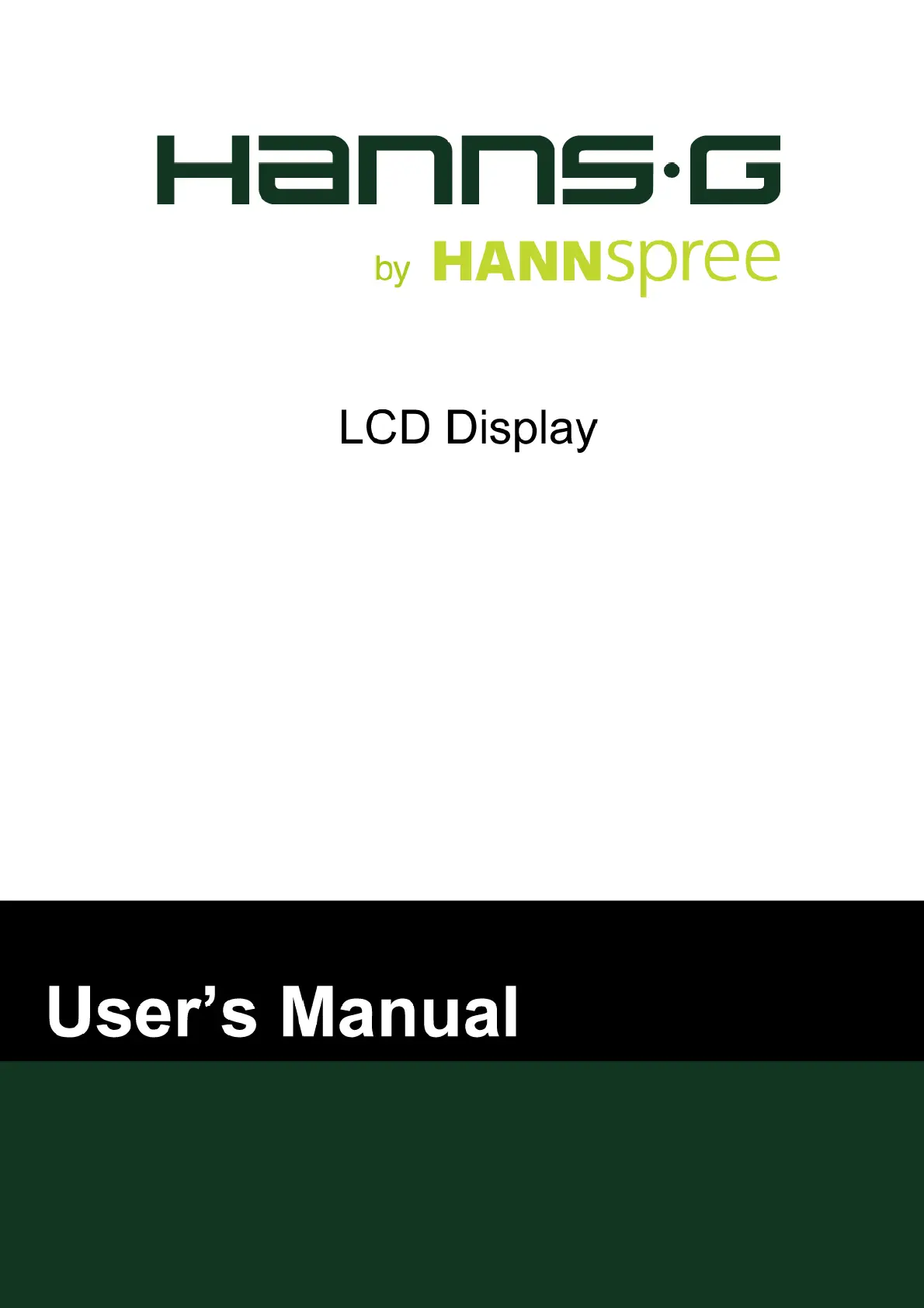

HP246 (HSG1342)

User’s Manual

OSD[V5.9]

Before operating the monitor, please read this manual thoroughly. This manual should be retained for

future reference.

FCC Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy, and if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two

conditions﹕ (1) this device may not cause harmful interference﹔ and (2) this device must accept any

interference received, including interference that may cause undesired operations.

CANADA

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulation.

【Optional, depend on selected model】

This device complies with requirement of EMC directive 2004/108/EC with regard to

Electromagnetic Compatibility, and 2006/95/EC and 93/68/EEC with regard to Low Voltage

directive.

【Optional, depend on selected model】

Socket-outlet shall be near the equipment and shall be accessible.

User’s Manual

RECYCLING INFORMATION

We, at HANNspree care very much about our environment protection strategy and firmly believe

that it helps us have healthier earth via appropriate treatment and recycling of industrial technology

devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into

brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned

substances. We strongly encourage you to contact the provided information to recycle this product.

For more information, please visit

http://www.hannspree.eu/

Produkspesifikasjoner

Merke:	Hannspree
Kategori:	skjerm
Modell:	Hanns.G HP 246 PJB
Farge:	Sort
LED-indikatorer:	Kraft indikator
Berøringsskjerm:	Nei
Synsvinkel, horisontal:	178 °
Skjermform:	Flat
Pakkevekt:	9200 g
DVI-port:	Ja
Innebygde høyttalere:	Ja
Antall høyttalere:	2
Hodetelefonutganger:	1
Sertifisering:	CE, Energy Star 7.1, ISO9241-307 Class I, TCO 7.0, GS, WEEE, Reach
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
HDMI:	Ja
Skjermteknologi:	LED
Kontrastforhold (dynamisk):	80000000:1
Innebygd kamera:	Nei
Antall DisplayPorts:	1
Energieffektivitetsklasse (SDR):	C
Energiforbruk (SDR) per 1000 timer:	12 kWh
Vekt (med stativ):	7200 g
AMD FreeSync:	Nei
NVIDIA G-SYNC:	Nei
Antall per pakke:	1 stykker
On Screen Display (OSD):	Ja
Antall USB Type-A nedstrømsporter:	4
Spillmodus:	Ja
Innebygd USB-hub:	Ja
Flimmerfri teknologi:	Ja
Antall oppstrømsporter:	1
Kontrastforhold:	1000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Energieffektivitetsskala:	A til G
Skjermoppløsning:	1920 x 1200 piksler
Strømforbruk (standby):	0.3 W
Kabellengde:	1.5 m
Høydejustering:	Ja
Produktfarge:	Sort
sRGB-dekning (typisk):	100
HD-type:	Full HD
Vippevinkelområde:	-5 - 30 °
USB-hub-versjon:	3.2 Gen 1 (3.1 Gen 1)
Bredde (uten stativ):	- mm
Høyde (uten stativ):	- mm
Vekt (uten stativ):	- g
Bredde (med stativ):	556.8 mm
Dybde (med stativ):	245 mm
Høyde (med stativ):	562.9 mm
Pakkedybde:	209 mm
Pakkehøyde:	438 mm
Pakkebredde:	630 mm
Skjermdiagonal:	24 "
Naturlig sideforhold:	16:10
Hodetelefontilkobling:	3,5 mm
Hodetelefon ut:	Ja
Støttede grafikkoppløsninger:	1920 x 1200 (WUXGA)
Antall DVI-D-porter:	1
Kabler inkludert:	AC, HDMI
Pakketype:	Boks
Horisontalt frekvensområde:	30 - 83 kHz
Strømforbruk (vanlig bruk):	15.9 W
Antall VGA (D-Sub)-porter:	1
Driftstemperatur (T-T):	5 - 35 °C
Bærekraftsertifikater:	RoHS
Hurtigstartsguide:	Ja
Harmonisert system (HS)-kode:	85285210
VESA-montering:	Ja
Dybde (uten stativ):	- mm
Paneltype:	IPS-ADS
Svingvinkel:	0 - 90 °
Synsvinkel, vertikal:	178 °
Samsvar med industristandarder:	Energy Star compatible
Av/på-bryter:	Ja
Relativ luftfuktighet under drift (H-H):	20 - 85
Oppdateringsresponstid:	5 ms
Pikselbredde:	0.27 x 0.27 mm
Antall OSD språk:	11
Panelmonterbart grensesnitt:	100 x 100 mm
RMS-rangert strøm/utgangseffekt:	3 W
Skjermlysstyrke (typisk):	250 cd/m²
Display antall farger:	16.78 million farger
Størrelseforhold:	16:10
Innebygd TV-mottaker:	Nei
Kabellåsport:	Ja
Avtagbart stativ:	Ja
Vippjustering:	Ja
Stativ medfølger:	Ja
Europeisk produktregister for energimerking (EPREL-kode):	395597
Vertikal scanningsratio:	56 - 75 Hz
Kabellåstype:	Kensington
Dreibar:	Ja
Dreietapp/dreiemekanisme:	-170 - 170 °
Omdreiningsakse/midtpunkt:	Ja
Strømforbruk, av:	0.23 W
Lydkontakter:	Ja
Plugg inn og spill:	Ja
ECO-funksjon:	Ja
NTSC-dekning (typisk):	72
