Hannspree HL 225 HPB Bruksanvisning

Hannspree skjerm HL 225 HPB

Les nedenfor 📖 manual på norsk for Hannspree HL 225 HPB (2 sider) i kategorien skjerm. Denne guiden var nyttig for 7 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/2

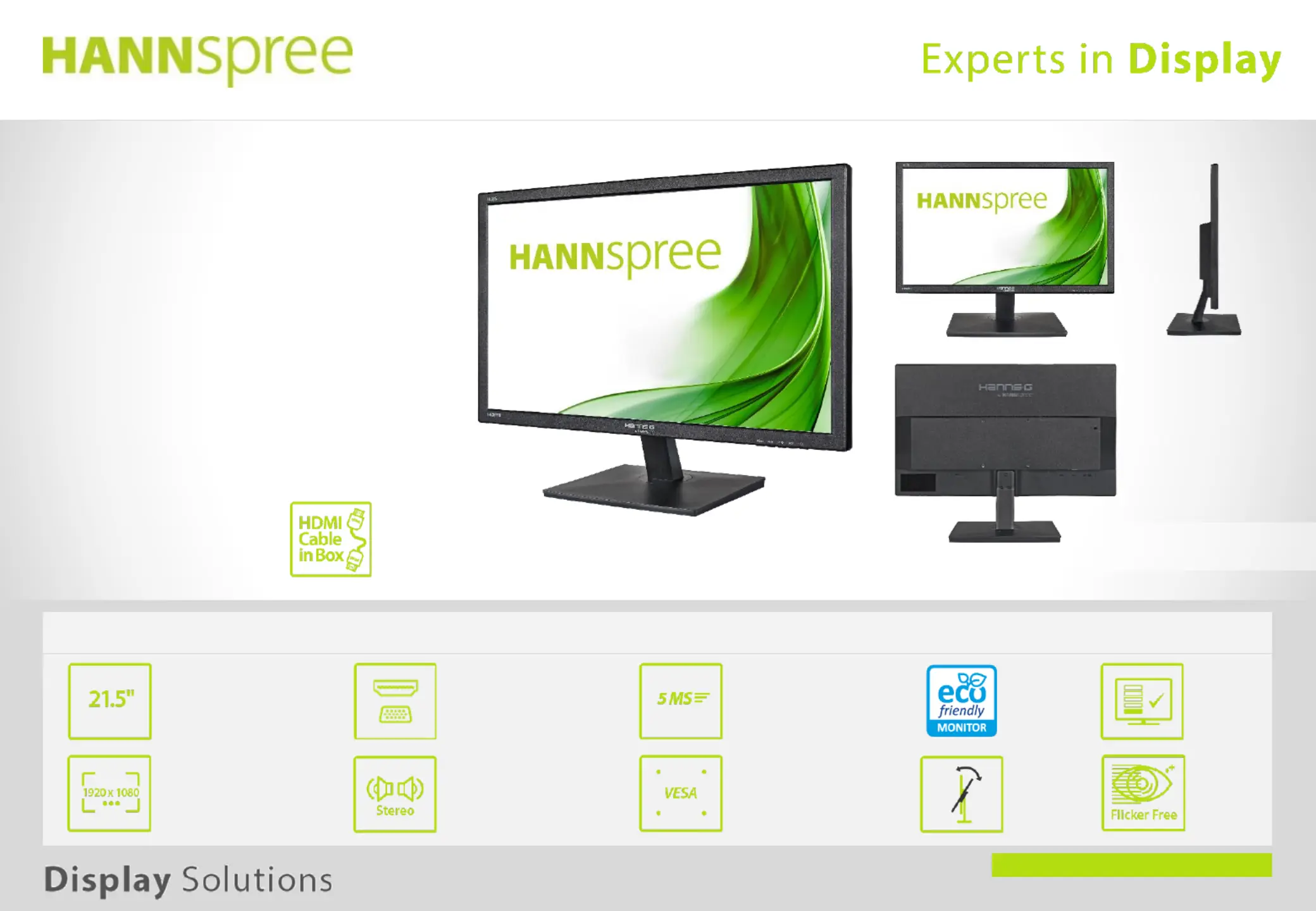

HL HPB 225

54,61 cm / 21.5 Diagonal “

LED Backlight Format 16:9–

54,61 cm / 21.5“

Part. No..: HL HPB225

CONNECTIVITY, SPEAKERSSIZE, RESOLUTION RESPONSE TIME, VESA ERGONOMIC FEATURES

Technical Specifications >>>

HDMI

VGA

Built-In

Stereo Speaker

5 msec

VESA

Wall-Mountable

Eco

Friendly

Tilt

Low

Power

Cons.

Video

Modes

21.5 54,61 cm”

16:9 Aspect Ratio

Full HD

1920 x 1080

• 21,5” 16:9 LED Backlight Monitor

• 1920 x 1080 Full HD Resolution

• Input: HDMI + VGA

• Built-In Stereo Speakers

• Tilt and Wall-Mountable (VESA)

• Low Power Consumption

• Multi-Video Modes

• ECO Friendly

• Flicker Free

• HDMI Cable Included

PART. NO.:

HL 225 HPB

VESA Mounting

100 x 100 mm

Monitor Stand Regular Stand

Tilt / Kensington Lock -5

~ 20

/ Yes

Pivot / Swivel No / No

Controls Menu, Bri (+), Vol (-), Input / Enter, Power

Color Warm, Nature, Cool, User Mode

Preset Mode PC, Movie, Game, Eco Modes

On Screen Display 12 OSD Languages

Flicker Free Yes

Accessory

Power Cable (1,5m); HDMI Cable (1,5m);

Warranty Card; Quick Start Guide

Display Size

54,61 cm / 21.5“ Diagonal

Panel Type TFT LED Backlight–

Aspect Ratio 16:9

Resolution (H x V) 1920 x 1080 Full HD

Brightness 250cd/m²

Contrast (Typ.) 1.000:1 (Typical)

Contrast (Active) 10.000.000:1 (Active)

Viewing Angle L/R; U/D 170

H / 160

V (CR >10); 176

H / 170

V (CR > 5)

Response Time 5 msec (typ)

Pixel Pitch 0,248 (H) x 0,248 (V) mm

Panel Surface Anti-Glare

Display Colors 16.7M Colors

Horizontal Frequency

31 ~ 83 kHz

Vertical Frequency 56 ~ 75 Hz

Max Display Frequency 1920 x 1080 @ 60Hz

Input 1 D-Sub (VGA)

Input 2 HDMI (Ver. 1.4)

Input 3 -

Speakers 1.5W x 2, Earphone Audio Output

Power Consumption On: 14W; Stand-by: 0,3W; Off: 0,2W

AC Power Range AC 100 ~ 240 Volt; 50 ~ 65 Hz

Product Dimensions 512 x 168 x 386 mm (W x D x H)

Packing Dimensions 583 x 115 x 377 mm (W x D x H)

Net / Gross Weight 3,4 Kgs / 4,5 Kgs (

0,3KG)

Bezel & Color Plan Front Bezel, Rear Cover, Arm & Base : Black Texture

products may differ slightly from those illustrated on this promotion material. Please refer to actual samples for final selection. The products displayed on this promotion

material may not be available for purchase in your particular country or locality. Please check with your local HANNspree aut ized representatives for the availability of hor

specific products in your area. All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and Companies.

Supplier‘s Name

HANNspree

Model Name HL225HPB

Energy efficiency class for standard

Dynamic Range (SDR)

Annual Energy Power Consumption

(kWh/1000h)

14 kWh/1000h

On mode power demand for

Standard Dynamic Range (SDR)

14 W

Off mode power demand (W)
