Chain Saw
Model CS 33EB
Handling instructions
Note:
Before using this machine, carefully read through these HANDLING INSTRUCTIONS
to ensure effi cient, safe operation. It is recommended that these INSTRUCTIONS be
kept readily available as an important reference when using this machine.
000BookCS33EBEng.indbA000BookCS33EBEng.indbA 2009/08/0719:15:312009/08/0719:15:31
1

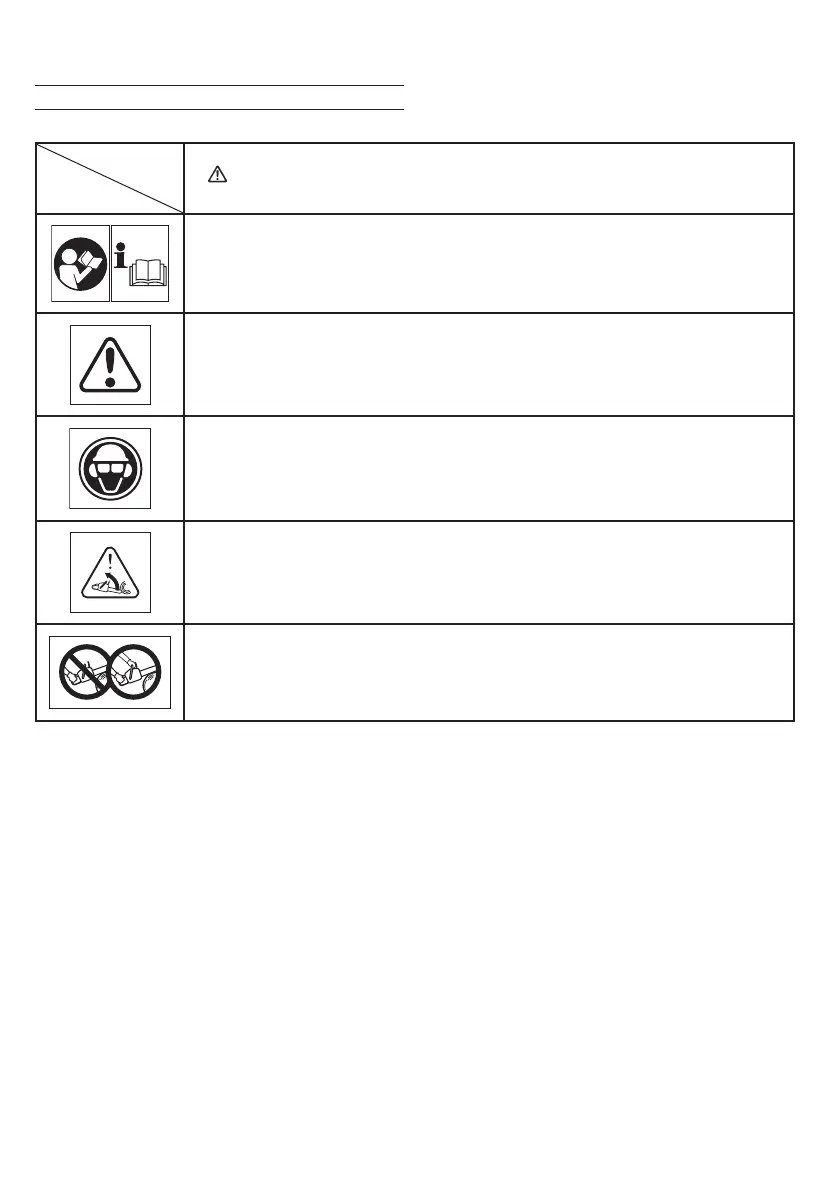

MEANINGS OF SYMBOLS
NOTE: Some units do not carry them.
Symbols
WARNING
The following show symbols used for the machine. Be sure that you understand their meaning before
use.
It is important that you read, fully understand and observe the following safety precautions and warnings.
Careless or improper use of the unit may cause serious or fatal injury.
Read, understand and follow all warnings and instructions in this manual and on the unit.
Always wear eye, head and ear protectors when using this unit.
Warning, kickback danger. Be careful of possible sudden and accidental upward and/or backward motion
of the guide bar.
One-handed usage not permitted. While cutting, hold saw fi rmly with both hands with thumb fi rmly locked
around front handle.
Contents
WHAT IS WHAT? .............................................................................. 2
WARNINGS AND SAFETY INSTRUCTIONS .................................. 3
SPECIFICATIONS ............................................................................ 5
ASSEMBLY PROCEDURES ............................................................. 6
OPERATING PROCEDURES ........................................................... 6
MAINTENANCE .............................................................................. 11
Parts breakdown
000BookCS33EBEng.indb1000BookCS33EBEng.indb1 2009/08/0719:15:322009/08/0719:15:32
2

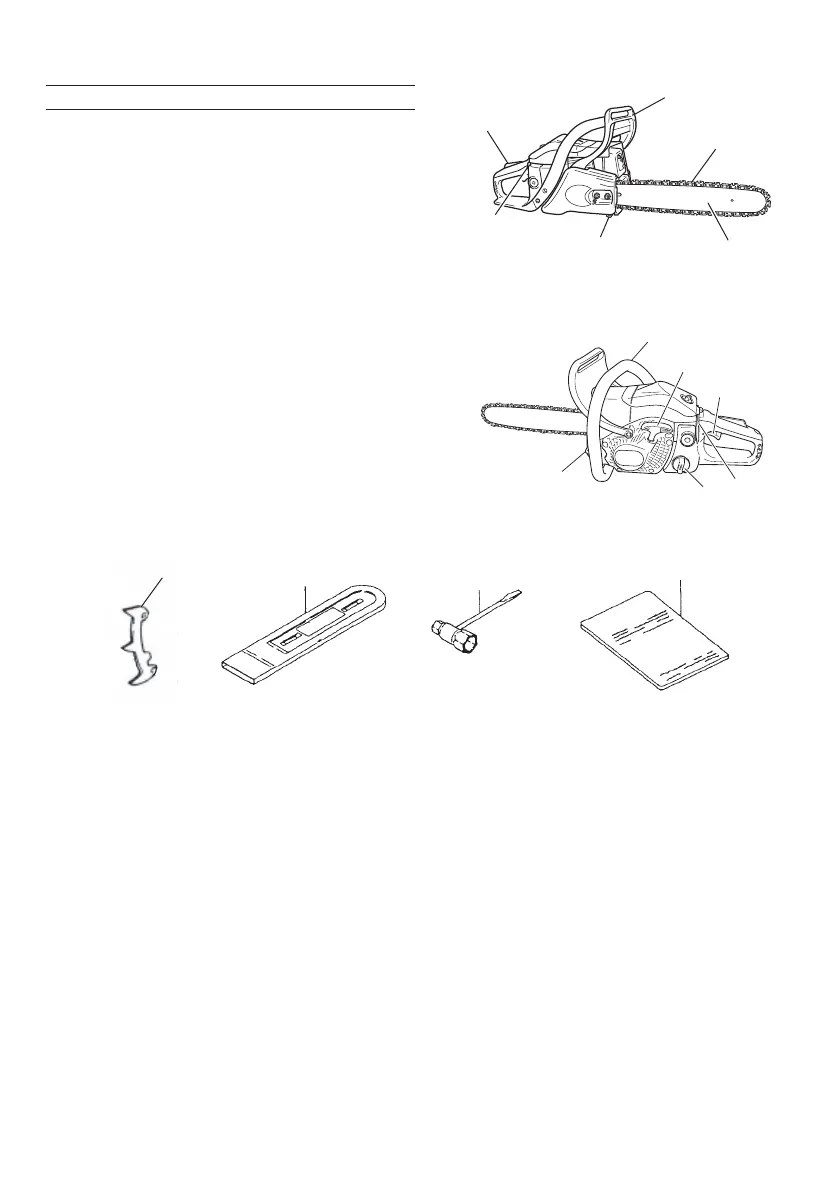

WHAT IS WHAT?
1. Throttle trigger: Device activated by the operatorʼs fi nger, for
controlling the engine speed.
2. Throttle trigger lockout (Safety trigger): Device that prevents
the accidental operation of the throttle trigger until manually
released.
3. Ignition switch: Device for allowing the engine to be started or
stopped.
4. Oil tank cap:
For closing the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or towards the front of
the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Choke control knob: Device for enriching the fuel/air mixture in
the
carburetor, to aid starting.
9. Guide bar: The part that supports and guides the saw chain.
10. Saw chain: Chain, serving as a cutting tool.
11. Chain brake (Front hand guard): Device for stopping or locking
the chain.
12. Spiked bumper (optional): Device for acting as a pivot when in
contact
with a tree or log.
13. Chain catcher: device for restraining the saw chain.
14. Guide bar cover: Device for covering the guide bar and saw
chain when the unit is not being used.
15. Combi box spanner: The tool for removing or installing a spark
plug and tensioning the
saw chain.
16. Handling instructions: Included with unit. Read before operation
and keep for future reference to learn proper, safe techniques.
14
15
16
12
11
10
9
13
8
2
6
5
1
3
7
4
000BookCS33EBEng.indb2000BookCS33EBEng.indb2 2009/08/0719:15:322009/08/0719:15:32
