Owner’s Guide
•Innity Alpha 25
ES
S SPEAKER YSTEMS
2
Infinity Alpha 25ES
Infinity Alpha
™
Series
long-standing commitment to accurate sound reproduction. Our
patented Ceramic Metal Matrix Diaphragm
™
(C.M.M.D.
™
) drivers,
precision dividing networks and rigid, heavily braced enclosures
combine to deliver uncompromised performance in any stereo or
multichannel home theater system.The Infinity Alpha 25
ES is the
perfect loudspeaker to complete any home theater system.
Unpacking the Speaker
If you suspect damage from transit, report it immediately to
your dealer. Keep the shipping carton and packing materials
for future use.
Choosing Proper Placement and Setup
The Infinity Alpha 25ES surround speaker can be used in side or
rear channel applications. Please refer to the placement and
setup method for your application.The first step is to determine
the application for which your Infinity Alpha 25
ES surround
speaker will be used.
If you are using the Infinity Alpha 25
ES for surround channels in
a 5-channel home theater system or for side channels in a 6- or
7-channel home theater system (Application 1), please follow the
directions below.
If you are using the Infinity Alpha 25
ES as a rear speaker in a
6- or 7-channel home theater system (Application 2), please
follow the directions on page 3.
Placement (Application 1)
When using the Infinity Alpha 25 or surround channels in a ES f
5-channel home theater system or for side channels in a 6-
The speakers should be placed perpendicular to or slightly
behind the primary listening location, as shown.
P Y SLANNING OUR YSTEM
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Innity
Subwoofer
(optional)
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Innity
Subwoofer
(optional)
F 2IGURE
F 1IGURE
–This overhead view shows a typical
home theater plan
.
3
Infinity Alpha 25ES
Setting the Surround Configuration Selector
It is generally recommended that the selectable surround mode
configuration be set to Bipole. This will provide a large ambient
surround sound field while allowing for precise localization of
sound effects that the filmmaker has placed in the surround
tracks.
If the side walls on which the speaker will be mounted are more
than about 14' from the listening position, setting the Surround
Mode Configuration Switch to Monopole may offer improved
performance. It is also recommended that the Monopole position
be selected if the speakers will be mounted close to a corner, as
shown in Figure 2.
If you are using a receiver/processor with a THX
®
surround mode
and have selected the THX surround mode, it may be beneficial to
use the Dipole setting. This is a matter of personal preference
and may change depending on the individual film soundtrack. It
is also recommended that the Dipole setting be used with older
recordings that are only recorded with a Dolby* Pro Logic* (not
the newer Dolby Digital) soundtrack.
IMPORTANT NOTE: The set of drivers that the arrow in Figure 3
points to should be installed toward the front of the room. It does
not matter whether or not the tweeter is positioned above or
below the woofer.
This will ensure proper operation and performance should the
Monopole or Dipole position on the surround mode configuration
switch be selected.
–Surround mode configuration switch.
BIPOLEDIPOLE
MONOPOLE
F 3IGURE
Placement (Application 2)
When using the Infinity Alpha 25 as a rear speaker in a 6- ES
The speaker(s) should be mounted on the rear wall facing the
listening area, between the side channel speakers. If you are
using one rear speaker, it should be mounted as close as
possible to the center of the listening area.When using two
rear speakers, they should be spaced evenly within the width
of the listening area.
Setting the Surround Configuration Selector
When used as a rear channel speaker in a 6- or 7-channel
system, it is recommended that the Surround Mode Configuration
Switch be set to Bipole, as shown in Figure 6.
Couch
Left
Front
Channel
Left
Side
Channel
Right
Side
Channel
Rear Center Channel
Right
Front
Channel
Center
Channel
Innity
Subwoofer
(optional)
Couch
Left
Front
Channel
Left
Side
Channel
Left Rear Channel
Right Rear Channel
Right
Side
Channel
Right
Front
Channel
Center
Channel
Innity
Subwoofer
(optional)
F 4IGURE

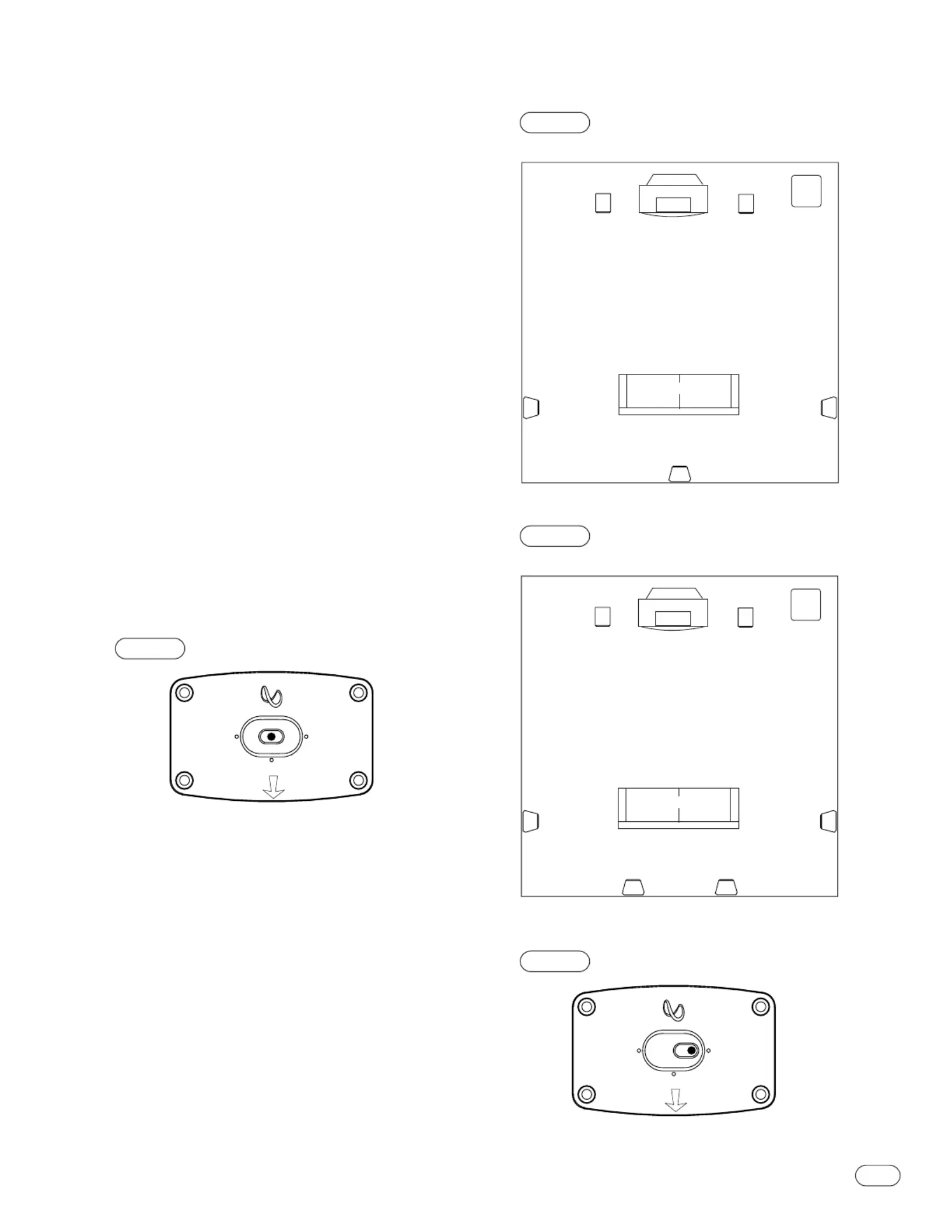

–This overhead view shows a typical home
theater plan with a single rear-center surround channel.
F 5IGURE
–This overhead view shows a typical home
theater plan when using two rear-channel speakers.
–Surround mode configuration switch.
BIPOLEDIPOLE
MONOPOLE
F 6IGURE
