Basslink Mini
EN
Owner’s Manual
Basslink Mini
EN

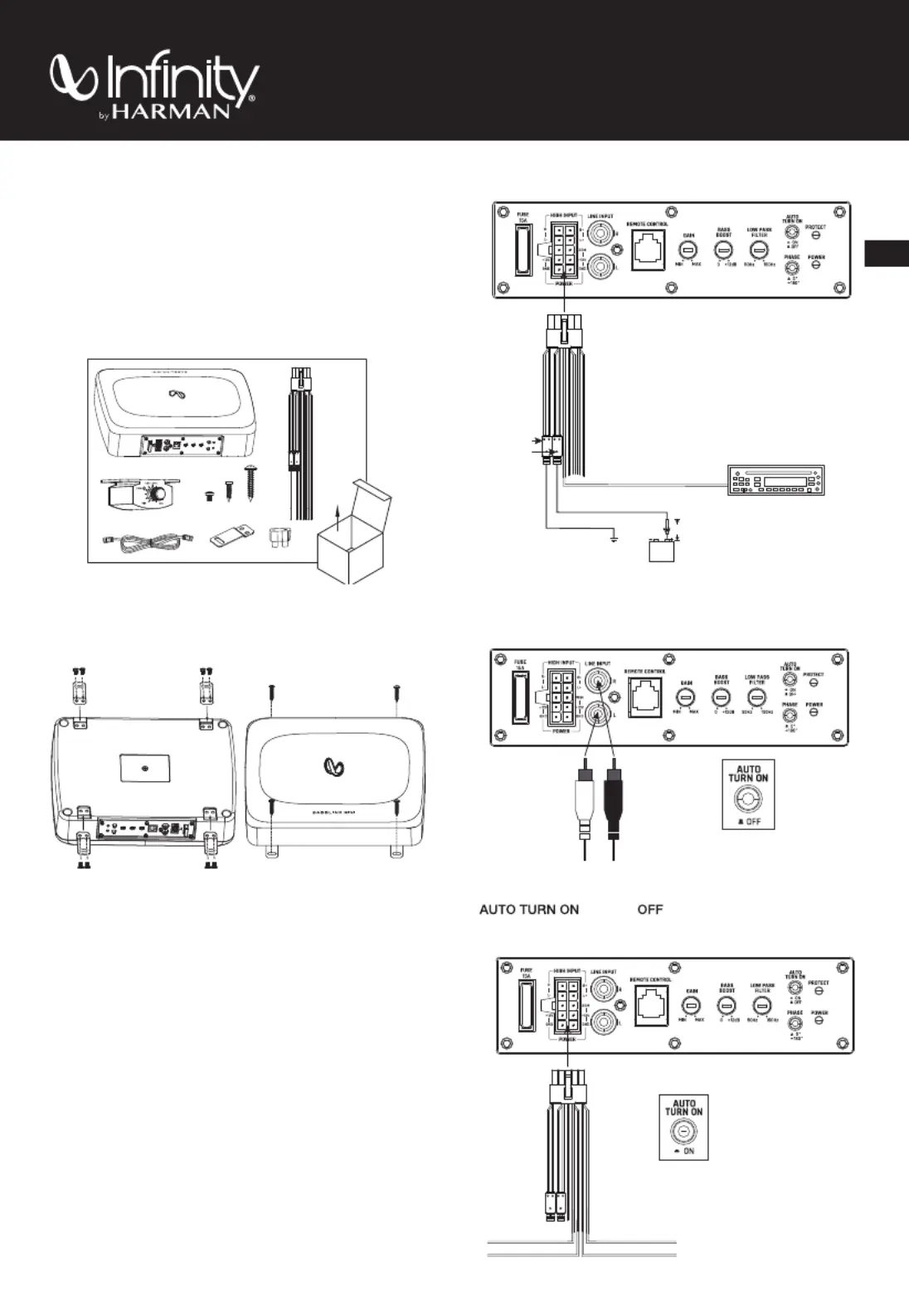

WIRING FOR POWER AND GROUND
Remote turn-on (blue) to
aftermarket stereo REM out
+12V
(red)
Ground
(black)
Fuse holder, 15A fuse
Chassis
ground (–)
Battery
18” (46cm)
WIRING FOR AUDIO SIGNAL
Line-level from aftermarket stereo
Right line output
(from stereo)
Left line output
(from stereo)
NOTE: When connecting an aftermarket stereo to the Infinity
BassLink MINI’s line-level inputs and remote turn-on wire, set the
button to .
Speaker-level from factory or aftermarket stereo
Right + (from stereo)
Right – (from stereo)
Left – (from stereo)
Left + (from stereo)
ABOUT THE MANUAL
This manual displays general Owner’s Manual guideline. However,
please note that proper installation of mobile audio components
requires qualified experience. If you do not have the knowledge
and tools to successfully perform this installation, we strongly
recommend consulting an authorized Infinity dealer about your
installation options. Keep all instructions and sales receipts for
reference.
WHAT’S IN THE BOX
1X
1X
1X
1X
2X 4X8X
4X
1X
MOUNTING THE BASSLINK MINI
Recommended location: under the passenger seat
NOTE: Before securing the BassLink MINI with mounting screws,
check beneath the mounting surface to ensure you will not
puncture fuel lines, brake lines, or any vehicle wires. Also ensure
that the BassLink MINI will not interfere with seat operation or
wiring, or block underseat heater/air conditioning vents.
Harness high-level input wire guide
White/White with black stripe Left + / Left -
Gray/Gray with black stripe Right + / Right -
NOTE: When connecting a factory or aftermarket stereo to the
BassLink MINI’s speaker-level inputs, set the
button to .

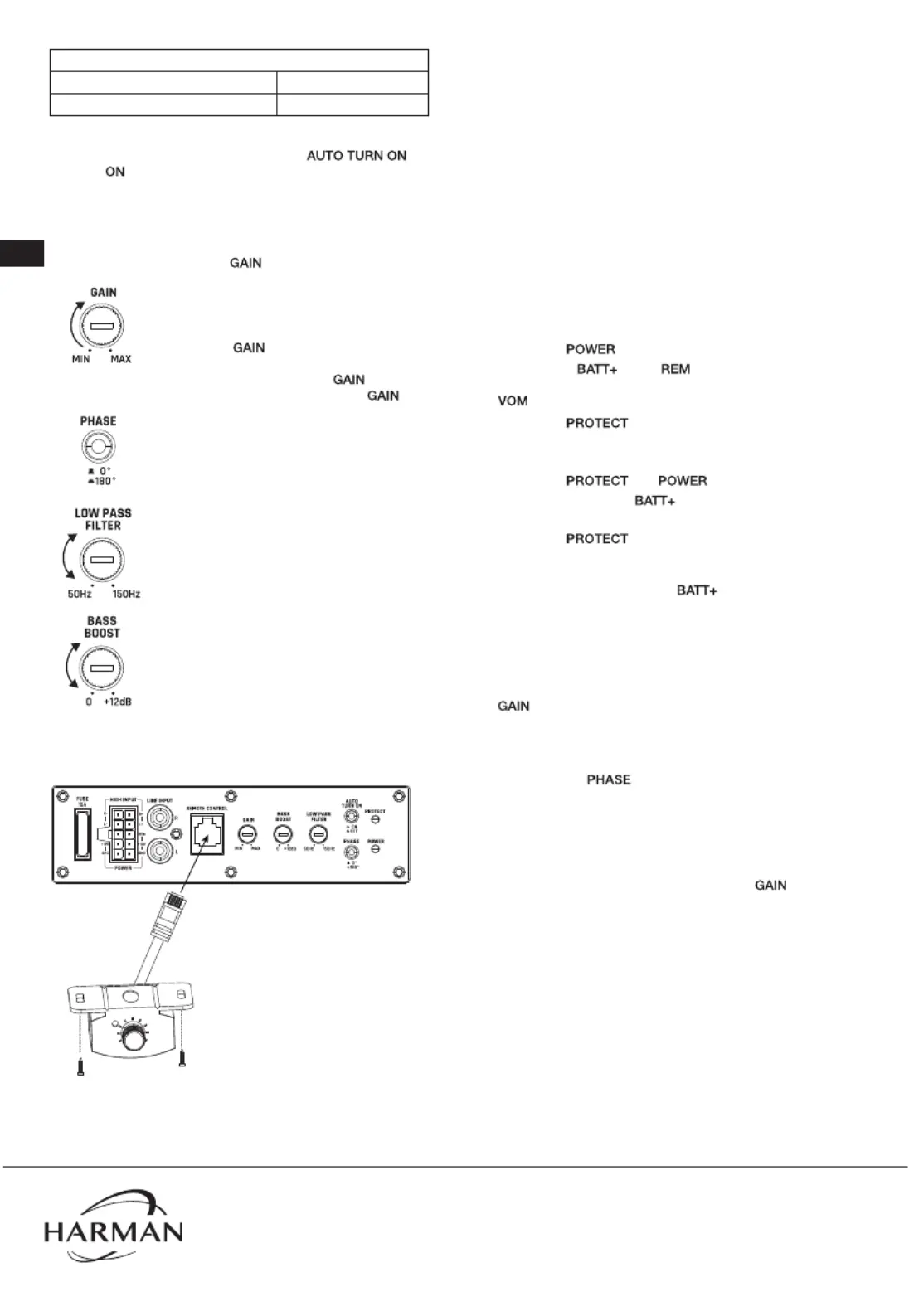

SETTING GAIN, ADJUSTING PHASE, LOW-
PASS FILTER, AND BASS BOOST
1. Start with control set to minimum,
and the crossover control rotated midway.
2. Choose music with substantial bass
content and turn the volume control on
your receiver to ¾ of its total output.
3. Adjust the control clockwise,
listening carefully to the bass output. If
you hear distortion, turn the control
counterclockwise to decrease the .
4. Switch the back and forth to PHASE
determine which setting provides the most
clean bass output.
5. Adjust the LOW-PASS FILTER control until
the BassLink MINI plays only low-frequency
information – you should not hear elements
such as vocals coming from the woofer.
6. Adjust the control BASS-BOOST
clockwise or counterclockwise to suit your
taste.
CONNECTING THE REMOTE BASS
CONTROL MODULE
SPECIFICATIONS
• Driver Complement: 6” x 8” (152mm x 203mm) woofer
• Amplifier Power Output: 100WRMS, 200W Max
• Frequency Response: 30 Hz – 150 Hz
• Fuse: 15A
• Maximum Current Draw: 13A
• Quiescent Current Draw: <600 mA
• Input Sensitivity: 0.1 V – 4.0 V low-level input;
0.25 V – 10V high-level input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0 dB to +12 dB @ 50Hz
• Dimensions: 11-7/16” x 8-5/16” x 3”
(289.6mm x 209.6mm x 75mm)
• Weight: 8.22lbs. (3.73kg)
TROUBLESHOOTING
No audio and indicator is off:
• No voltage at and/or terminals, or bad or no
ground connection. Check voltages at amplifier terminals with
.
No audio and indicator ashes every 4 seconds:
• DC voltage on amplifier output. Amplifier may need service; see
enclosed warranty card for service information.
No audio and and indicators ash:
• Voltage less than 9V on connection. Check vehicle
charging system.
No audio and indicator is on.
• Amplifier is overheated. Make sure amplifier cooling is not
blocked at mounting location. Or, there may be voltage greater
than 16V (or less than 8.5V) on connection. Check
vehicle charging system.
Amplier fuse keeps blowing.
• The wiring is connected incorrectly or there is a short circuit.
Check wiring connections.
Distorted audio.
• is not set properly. Check setting. Check wires for shorts
or grounds. Amplifier or source unit may be defective.
Music lacks dynamics or “punch.”
• If using speaker-level inputs, check connections for proper
polarity. Switch back and forth between 0° and 180°
and leave on setting with best sound.
Engine noise—whining or clicking—in system when the
engine is on.
• Amplifier is picking up alternator noise. First, check ground
connection on the amplifier – a loose or improper ground is
one of the main causes for noise. Turn down . Move RCA
audio cables away from power wires. Installing an alternator
noise filter on power line between battery and alternator might
also be necessary.
HARMAN International Industries,
Incorporated 8500 Balboa Boulevard,
Northridge, CA 91329 USA
www.infinityspeakers.com
© 2019 HARMAN International Industries, Incorporated. All rights reserved.
Infinity is a trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries. Features, specifications
and appearance are subject to change without notice.
