Side 1/24
1
W10676165B
W10676166B - SP
Table of Contents
DRYER SAFETY ......................................................................... 2
INSTALLATION REQUIREMENTS ............................................. 3
Tools and Parts ...................................................................... 3
LOCATION REQUIREMENTS .................................................... 4
ELECTRICAL REQUIREMENTS ................................................ 5
INSTALL LEVELING LEGS ......................................................... 6
ELECTRICAL INSTALLATION ................................................... 7
Power Supply Cord Connection ........................................... 8
Direct Wire Connection ....................................................... 10
VENTING ................................................................................... 12
Venting Requirements ......................................................... 12
Plan Vent System ................................................................. 13
Install Vent System .............................................................. 15
CONNECT INLET HOSE (STEAM MODEL ONLY).................. 15
CONNECT VENT ...................................................................... 16
LEVEL DRYER .......................................................................... 17
COMPLETE INSTALLATION CHECKLIST .............................. 17
DOOR REVERSAL (OPTIONAL) .............................................. 18
ELECTRIC DRYER INSTALLATION INSTRUCTIONS
INSTALLATION NOTES
Date of purchase: _________________________________
Date of installation: _______________________________
Installer: ________________________________________
Model number: ___________________________________
Serial number: ___________________________________
Para una version de estas instrucciones en español, visite www.Whirlpool.com
2

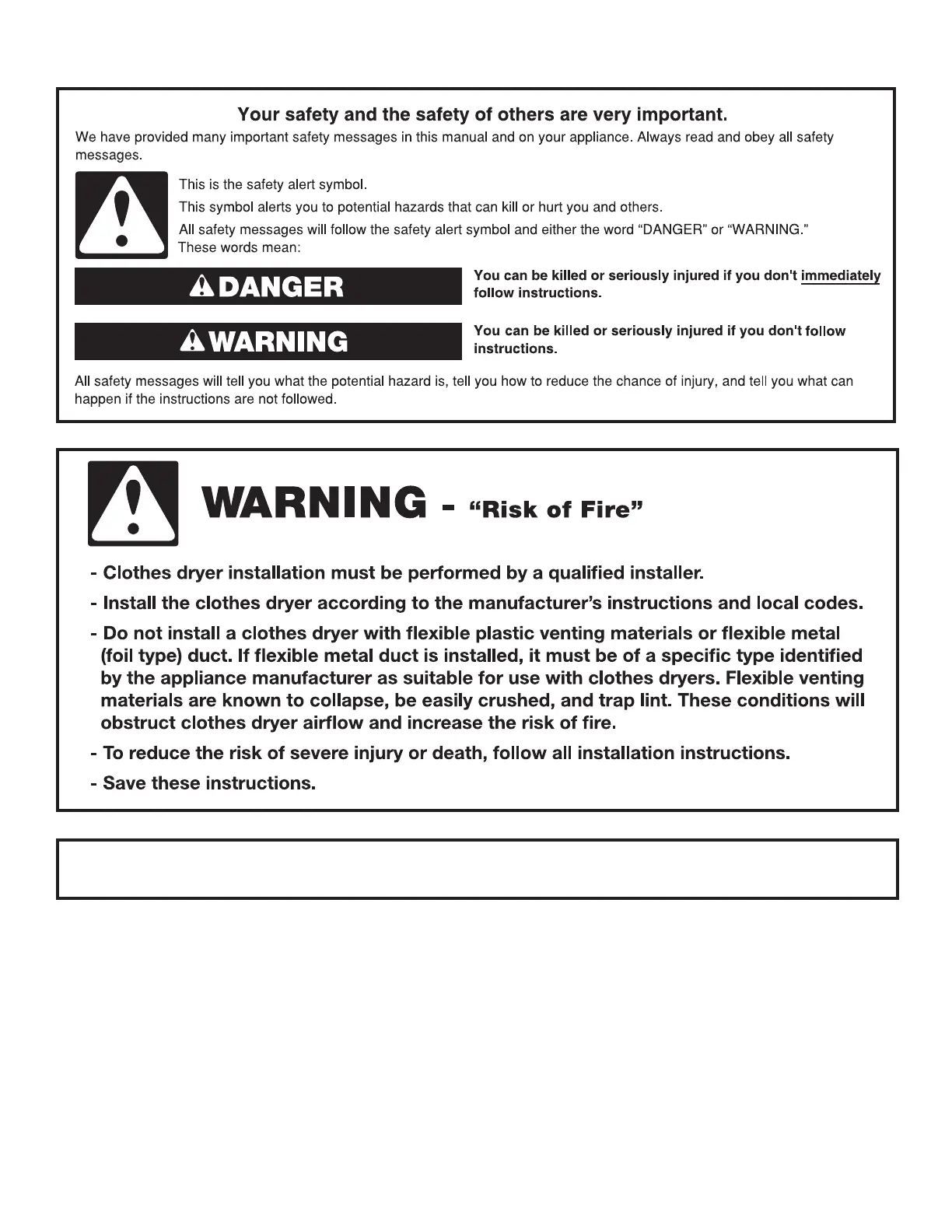

DRYER SAFETY
IMPORTANT: When discarding or storing your old clothes dryer, remove the door.
3
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools needed:
Flat-blade screwdriver #2 Phillips screwdriver
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Wire stripper (direct wire
installations)
Tin snips (new vent
installations)
1/4" and 5/16" nut driver
(recommended)
Utility knife
Level
Tape measure
Pliers
Caulking gun and
compound (for installing
new exhaust vent)
Leveling legs (4)
“Y” connector
Parts package is located in dryer drum. Check that all parts
are included.
NOTE: Do not use leveling legs supplied with dryer if installing
with a pedestal or a stack kit.
Additional parts may be required, depending on your installation.
Check local codes. Check existing electrical supply and venting.
Read “Electrical Requirements” and “Venting Requirements”
before purchasing parts.
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
■ A UL listed 30-amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be
at least 4 ft. (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or spade terminals
with upturned ends.
■ A UL listed strain relief.
Optional Equipment: (Not supplied with dryer)
Refer to your Use and Care Guide for information about
accessories available for your dryer.
Parts supplied (all models):
Parts supplied (steam models):
2' (0.6 m) inlet hose
5' (1.52 m) inlet hose
Parts needed (steam models):
Parts needed: (Not supplied with dryer)
■ Vent clamps
■ Vent elbows and vent work
Rubber washer
