Side 1/44

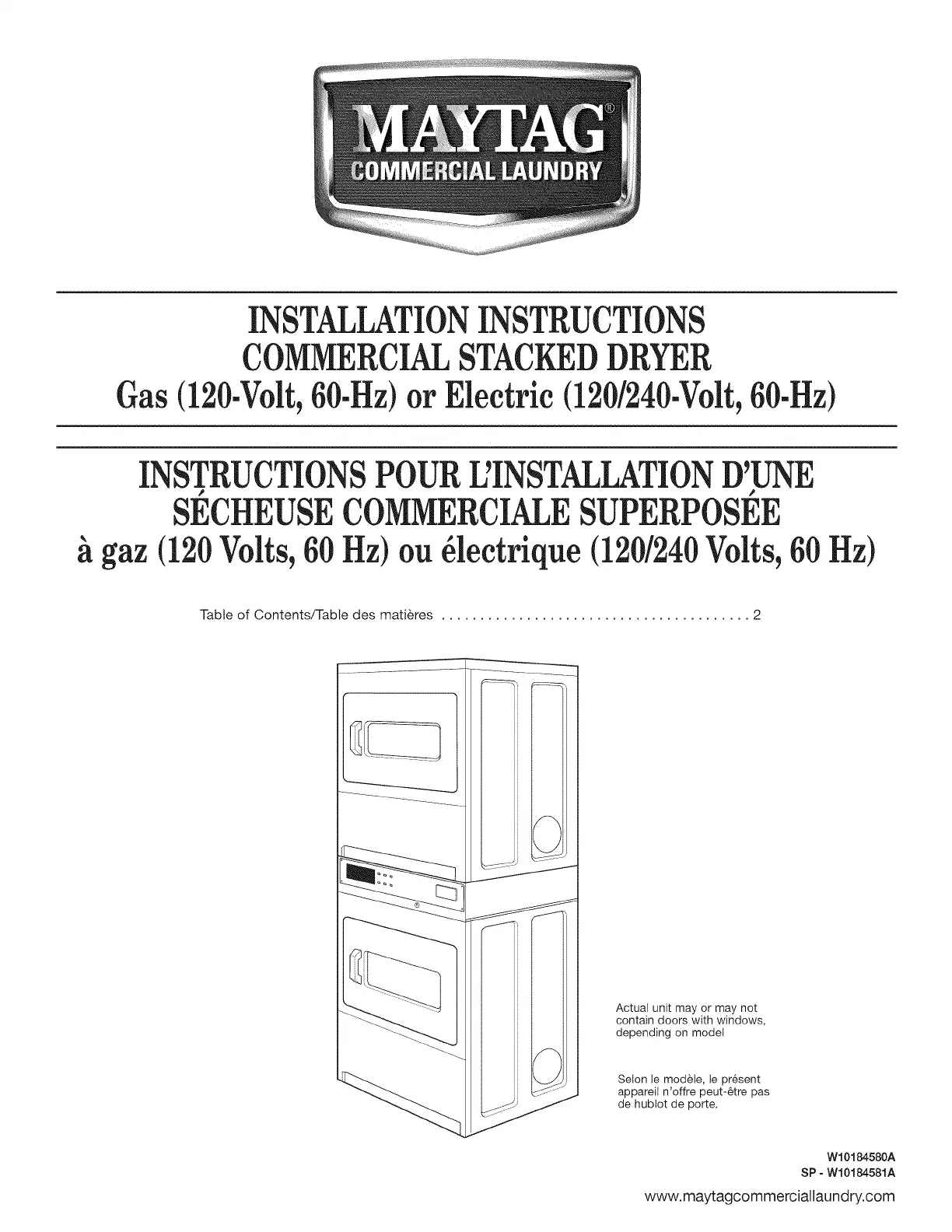

INSTALLATIONINSTRUCTIONS
COMMERCIALSTACKEDDRYER
Gas (120-Volt,60-Hz)or Electric (120/240-Volt,60-Hz)
INSTRUCTIONSPOUR L'INSTALLATIONffUNE
# #
SECHEUSECOMMERCIALESUPERPOSEE
h gaz (120 Volts, 60 Hz) ou (_lectrique (120/240Volts, 60 Hz)
Table of Contents/Table des mati_res ........................................ 2
\ ..............
Actual unit may or may not
contain doors with windows,
depending on model
Seton te modete, te pr6sent
appareit n'offre peut-_tre pas
de hubtot de porte.
W10184580A
SP - W10184581A
www.maytagcommercJallaundry.com
TABLEOF CONTENTS TABLEDESMATIERES
DRYER SAFETY ............................................................................ 2
INSTALLATION REQUIREMENTS .............................................. 5
Tools and Parts .......................................................................... 5
Location Requirements .............................................................. 5
Electrical Requirements - Gas Dryer ........................................ 6
Electrical Requirements - Electric Dryer (U.S. only) ................ 6
Gas Supply Requirements ........................................................ 7
Venting Requirements .............................................................. 8
iNSTALLATION INSTRUCTIONS - GAS DRYER .................. 10
Make Gas Connection .............................................................. 10
Connect Vent ............................................................................ 10
Complete Installation .............................................................. 10
iNSTALLATION iNSTRUCTIONS- ELECTRIC DRYER ........ 10
Make Electrical Connection ...................................................... 11
Connect Vent ............................................................................ 15
Complete Installation .............................................................. 15
REVERSING THE DOOR SWING (OPTIONAL) ...................... 15
MAINTENANCE INSTRUCTIONS .......................................... 16
ELECTRONIC CONTROL SETUP ........................................... 16
WARRANTY .............................................................................. 21
SECURITE DE LA SECHEUSE .............................................. 22
EXIGENCES D'INSTALLATION ................................................ 25
Outitlage et pi_ces .................................................................... 25
Exigences d'emplacement ...................................................... 25
Specifications etectriques - s6cheuse h gaz ........................... 26
Specifications electriques - s_cheuse etectrique
(E.-U. seulement) ..................................................................... 26
Specifications de I'atimentation en gaz .................................. 27
Exigences concernant I'evacuation .......................................... 28
INSTRUCTIONS D'INSTALLATION - S_=CHEUSE A GAZ ....31
Raccordement h la canalisation de gaz ...................................... 31
Raccordement du conduit d'evacuation ................................ 31
Achever I'instatlation ................................................................ 31
INSTRUCTIONS D'INSTALLATION - S_eCHEUSE
ELECTRIQUE ............................................................................ 32
Raccordement electrique ........................................................ 32
Raccordement du conduit d'evacuation ................................ 37
Achever l'installation ................................................................ 37
INVERSION DU SENS D'OUVERTURE DE LA PORTE .......... 37
INSTRUCTIONS D'ENTRETIEN .............................................. 38
REGLAGE DE LA COMMANDE ELECTRONIQUE ................ 38
GARANTIE ................................................................................ 44
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING - ".isk ofFire"
- Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer's instructions and local codes.
- Do not install a clothes dryer with flexible plastic venting materials, if flexible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.
WARNING: For your safety, the information in this manual must be followed to minimize I
the risk of fire or explosion, or to prevent property damage, personal injury, or death, j
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO iF YOU SMELL GAS:
® Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
= Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• if you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the "What to do if you smell gas" instructions.
IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.
3
