Side 1/10

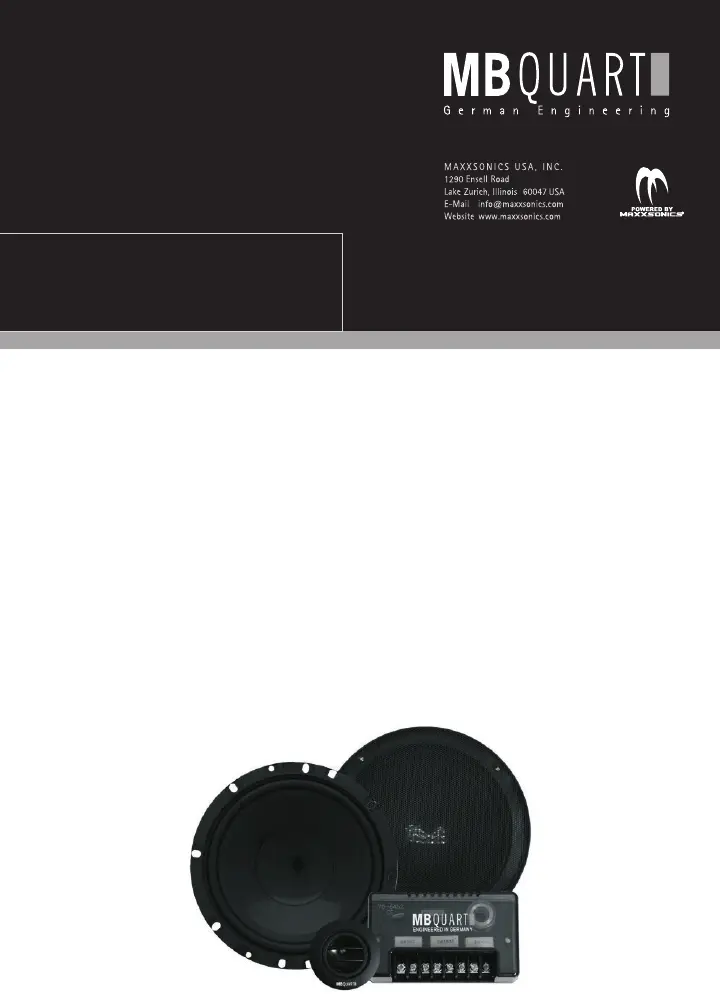

ONX110 / ONX213 / ONX116
ONX216 / ONX157 / ONX169
ONYX
www.mbquart.com
Thank you for choosing MB Quart ONYX speakers for your car audio
sound system. With proper installation, you are on the path to
experiencing your music in a way you only imagined possible. Here at
MB Quart, we call this “Sound In Every Detail.”
The ONYX series speakers have been designed for the enthusiast
looking for great sound and excellent performance. The ONYX series
speakers feature the following:
- Black Mesh Grill
- High Energy Magnet
- Polypropylene Cone
- Woven Tinsel Leads
- Spade Style Speaker Terminals
- 30mm Widesphere Tweeter
- Crossover w/Variable Tweeter Attenuation
- Stamped Steel Basket
As with all high quality car audio products, we recommend professional
installation by an authorized MB Quart dealer. Your dealers knowledge
and experience can ensure a problem free and cosmetically integrated
installation.
If you choose to install the speakers yourself, please read the entire
manual very carefully.
SPEAKER LOCATION AND MOUNTING TIPS
THE FIRST STEP IS THOROUGH PLANNING BEFORE THE
INSTALLATION BEGINS. THE SPEAKER SCREW HOLE
CONFIGURATION WILL WORK WITH MOST DOMESTIC AND
FOREIGN VEHICLES. FOLLOW THESE INSTRUCTIONS
CAREFULLY TO ENSURE PROPER IMAGING AND MAXXIMUM
PERFORMANCE.
Factory Speaker Replacement Location and Installation
1. Before you alter the vehicles interior materials, be sure there is
adequate room and clearance for the speaker depth to clear the
windows and other moving parts. (See speaker measurement page).
2. If you are using the speaker wires provided in this kit, be sure to
route wires through the factory door grommet as shown in the speaker
mounting diagram.
3. After securing the speaker and checking clearances, connect the
red/black speaker audio wires to the correct speaker + and - spade
terminals.
Custom Speaker Location and Installation
1. Follow steps 1-3 above.
2. Use the speaker mounting diagrams and speaker hole cut-out
dimensions on the following pages.
3. Always mount the left and right side speakers on the same plane.
This means that each speaker should be the same height from the
floor and same distance from the firewall. Do not mount one speaker
higher, lower, further forward or further behind the other.
ONX110 / ONX213 / ONX116
ONX216 / ONX157 / ONX169
ONYX
