HT-R693

AV RECEIVER

Basic Manual

Advanced Manual found here

http://www.onkyo.com/manual /htr693/adv/en.html

Before Start

About the Basic Manual

The Basic Manual leads you through the fundamental steps

to enjoy the AV Receiver from connections to TV, speaker

system and playback components, to necessary functions

for playback. As well as that, Basic Manual informs you with

the instructions on frequently used functions. Besides, there

is another part of the manual called Advanced Manual to

inform you with more detailed information, which we have

decided to publish on the web from the ecological point of

view.

Advanced Manual

Advanced Manual is always updated with the latest

information and its user friendly interface, which does not

matter whether you access from PC or Smartphone, helps

you to understand more deeply about this unit. Advanced

Manual is consisted of the following chapters.

r Details on AM/FM playback

r Playing Music Files on a USB Storage Device

r Listening to Internet Radio

r Playing Music with DLNA

r Playing Music Files in a Shared Folder

r Operating Music Files with the Remote Controller

r Listening Mode

r Advanced Settings

r Operating Other Components with the Remote Controller

r Advanced speaker connections

r Connecting and Operating Onkyo RI Components

r Firmware Update

r Troubleshooting

r Reference Information

Advanced Manual found here

http://www.onkyo.com/manual/htr693/adv/en.html

Features

r Equipped with 7 ch amplifier

r Supports playback in Dolby Atmos format which provides

360-degree placement and movement of sounds

including overhead sound

r Dolby Surround listening mode expands 2 ch, 5.1 ch or

7.1 ch source to available speaker configurations

r Incorporates Qdeo™ technology

r Equipped with 4K 60 Hz Passthrough-compatible HDMI

IN/OUT jacks (among the HDMI IN jacks, only IN1 to IN4

of support 4K)

r Supports the HDMI Through function which allows

transmission from playback devices to the TV in standby

state

r Supports HDCP2.2, a strict copy-protection for providing

high quality content (HDMI IN3/HDMI OUT MAIN only)

r Supports ARC (Audio Return Channel)

r Supports USB storage playback

r Supports variety of network functions such as Internet

Radio, DLNA, etc.

r Supports Wi-Fi, Bluetooth and MHL-enabled mobile

device

r Bi-Amping capability

r

A/V Sync Function to correct deviation of audio and video

r Multi-zone function which allows you to play a different

source in another room from the main room

r 32 bit DSP (Digital Signal Processor) with excellent

calculation performance

r Music Optimizer™ for Compressed Digital Music files

r Phase Matching Bass System

r Automatic speaker setup available using supplied

calibrated microphone (AccuEQ Room Calibration)

r Supports playback of MP3, FLAC, WAV, Ogg Vorbis,

Apple Lossless, DSD, Dolby TrueHD via network and

USB storage device (the supported formats will differ

depending on the use environment)

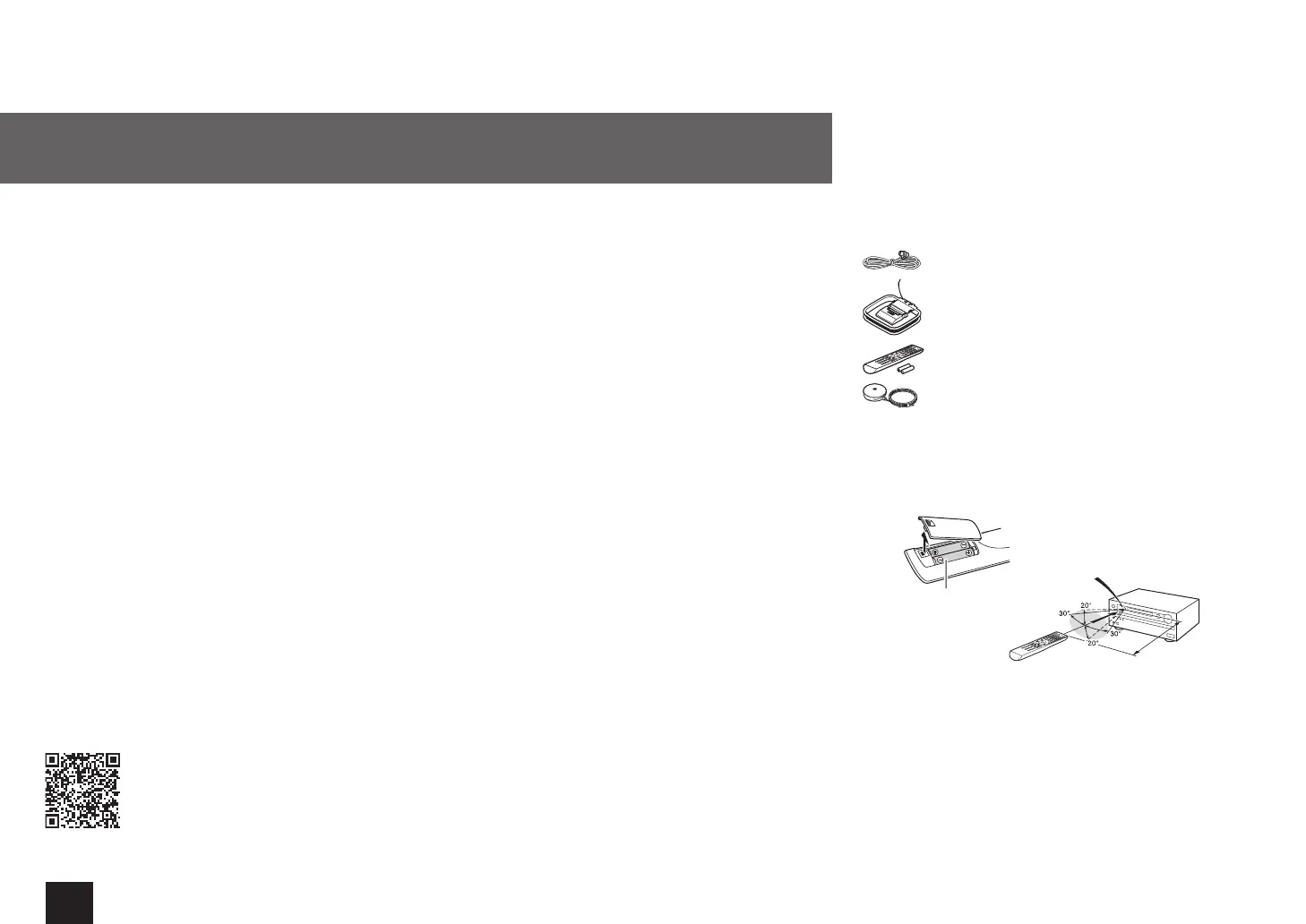

Supplied Accessories

Indoor FM antenna --- (1)

AM loop antenna --- (1)

Remote controller (RC-880M) --- (1)

Batteries (AA/R6) --- (2)

Speaker setup microphone --- (1)

¼

The number in parenthesis indicates the quantity. On packaging, the

letter at the end of the product name indicates the color.



How to use the remote controller

Batteries (AA/R6)

Remote control sensor

Approx.

16 ft. (5 m)

AV Receiver

¼

If you do not use the remote controller for a long time, remove the

batteries to prevent leakage.

¼

Note that keeping consumed batteries inside may cause corrosion

resulting in damage of the remote controller.

Produkspesifikasjoner

Merke:	Onkyo
Kategori:	hjemmekinoanlegg
Modell:	HT-S7705
Bruksanvisning:	Ja
Bluetooth:	Ja
Wi-Fi:	Ja
Hodetelefonutganger:	1
FM-radio:	Ja
Karaoke:	Nei
HDMI inn:	7
FM-antenne:	Ja
Antall HDMI-utganger:	2
FM-bånd:	87.5 - 108 MHz
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 - 60 Hz
AirPlay:	Ja
Mottakervekt:	10500 g
Strømforbruk (standby):	0.2 W
Støttede lydformater:	AAC, FLAC, LPCM, M4A, MP3, OGG, WAV, WMA
Produktfarge:	Sort
Strømforbruk (vanlig bruk):	630 W
Komponentvideo (YPbPr/YCbCr) inn:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Fjernkontroll medfølger:	Ja
Komponentvideo (YPbPr/YCbCr) ut:	1
Signal-til-støy-forhold (SNR):	106 dB
Satelitthøyttalerens dimensjoner (BxDxH):	115 x 96 x 230 mm
Innebygd harddisk:	Nei
Total Harmonic Distortion (THD):	1
Senterhøyttalertype:	2-veis
Subwoofer-vekt:	7700 g
Ethernet/bredbåndsforbindelse:	Ja
Lyd-utgang kanaler:	7.2 kanaler
Komposittvideo inn/sammensatt video inn:	3
RMS-rangert strøm/utgangseffekt:	160 W
Batterier medfølger:	Ja
Optisk diskettspillertype:	Ikke inkludert
Innebygd TV-mottaker:	Nei
Lydkontakter:	6
Støttede radiobånd:	AM, FM
Støttede disktyper:	Nei
Komposittvideo ut:	1
Utjevner/frekvenskorrigerer:	Ja
Antall forhåndsinnstallerte stasjoner:	40
AM båndbredde:	0.5 - 0.001611 kHz
Innebygd lyddekoder:	Dolby TrueHD, DTS-HD Master Audio
Satelitthøyttalere RMS-strøm:	130 W
Subwoofer RMS-styrke:	80 W
Frekvensomfang for satelitthøyttaler:	80 - 2000 Hz
Subwoofer-driverdiameter (imperisk):	7.8 "
Apple docking-kompabilitet:	Støttes ikke
Lyd D/A-konverterer (DAC):	24-bit/192kHz
Digital optisk lydinngang:	1
Senterhøyttaler, strøm:	130 W
Senterhøyttaler vekt:	2400 g
Subwooferens dimensjoner (BxDxH):	230 x 410 x 425 mm
Senterhøyttalerens dimensjoner (BxDxH):	420 x 119 x 115 mm
Impedans for senterhøyttaler:	6 Ω
Frekvensomfang for senterhøyttaler:	65 - 50000 Hz
Digital koaksialinngang for lyd:	2
Diameter på mellomtone-driver:	80 mm
Lydplankens RMS-effekt:	130 W
Frekvensomgang subwoofer:	27 - 150 Hz
Subwoofer-impedans:	20 Ω
Trådløs mottaker (B x D x H):	435 x 329 x 173.5 mm
Impedans for satellitthøyttaler:	6 Ω
Satelitthøyttalervekt:	1000 g
Fronthøyttalertype:	2-veis
Fronthøyttalerens frekvensområde:	55 - 50000 Hz
Fronthøyttalerens impedans:	6 Ω
Dimensjoner fremste høyttaler (WxDxH):	155 x 183 x 467 mm
Vekt fremste høyttaler:	3600 g
Fronthøyttalerens RMS-effekt:	130 W
Satellitthøyttaler sensitivitet/følsomhet:	81 dB
Diameter på senterhøyttalerens diskantenhet:	0.9 "
Diameter (imperisk) på senterhøyttalerens bassenhet:	3.1 "
Senterhøyttaler sensitivitet/følsomhet:	86 dB
Fronthøyttalerens sensitivitet:	84.5 dB
Diameter på satelitthøyttalerens mellomtonedriver:	3.1 "
Diskanthøyttalerens (front) diameter:	0.9 "
Subwooferens (front) diameter (imperisk):	4.7 "
