HT-R993

AV RECEIVER

Advanced Manual

CONTENTS

AM/FM Radio Receiving Function 2

Tuning into a Radio Station 2

Presetting an AM/FM Radio Station 3

Using RDS (European model) 3

Playing Music Files on a USB Storage Device 5

Listening to Internet Radio 6

About Internet Radio 6

TuneIn 6

Pandora

–Getting Started (U.S. only) 7

SiriusXM Internet Radio (North American only) 8

Slacker Personal Radio (North American only) 9

Registering Other Internet Radios 10

DLNA Music Streaming 12

About DLNA 12

Configuring the Windows Media

Player 12

DLNA Playback 12

Controlling Remote Playback from a PC 13

Music Streaming from a Shared Folder 14

About Shared Folder 14

Setting PC 14

Playing from a Shared Folder 14

Using Remote Controller for Playing Music Files 16

About the Remote Controller 16

Remote Controller Buttons 16

Icons Displayed during Playback 16

Using the Listening Modes 17

Selecting Listening Mode 17

Effects of Listening Modes 18

Checking the Input Format 21

Advanced Settings 22

How to Set 22

1. Input/Output Assign 23

2. Speaker Setup 26

3. Audio Adjust 30

4. Source Setup 31

5. Listening Mode Preset 34

6. Miscellaneous 34

7. Hardware Setup 35

8. Remote Controller Setup 40

9. Lock Setup 40

Operating Other Components with the Remote

Controller 41

Functions of REMOTE MODE Buttons 41

Programming Remote Control Codes 41

TV operation 42

Blu-ray Disc player/DVD player/DVD recorder

operation 43

VCR/PVR operation 43

Satellite receiver / Cable receiver operation 44

CD player operation 44

Cassette tape deck operation 45

To operate CEC-compatible components 45

Installation and Connection of Height Speakers 46

Using the Height Speakers 46

Installation Method of the Height Speakers by Type 46

Connecting and Operating Onkyo RI Components 48

About RI Function 48

RI Connection and Setting 48

iPod/iPhone Operation 49

Firmware Update 50

About Firmware Update 50

Updating the Firmware via Network 50

Updating the Firmware via USB 51

Troubleshooting 53

Reference information 59

AM/FM Radio Receiving Function

Tuning into a Radio Station



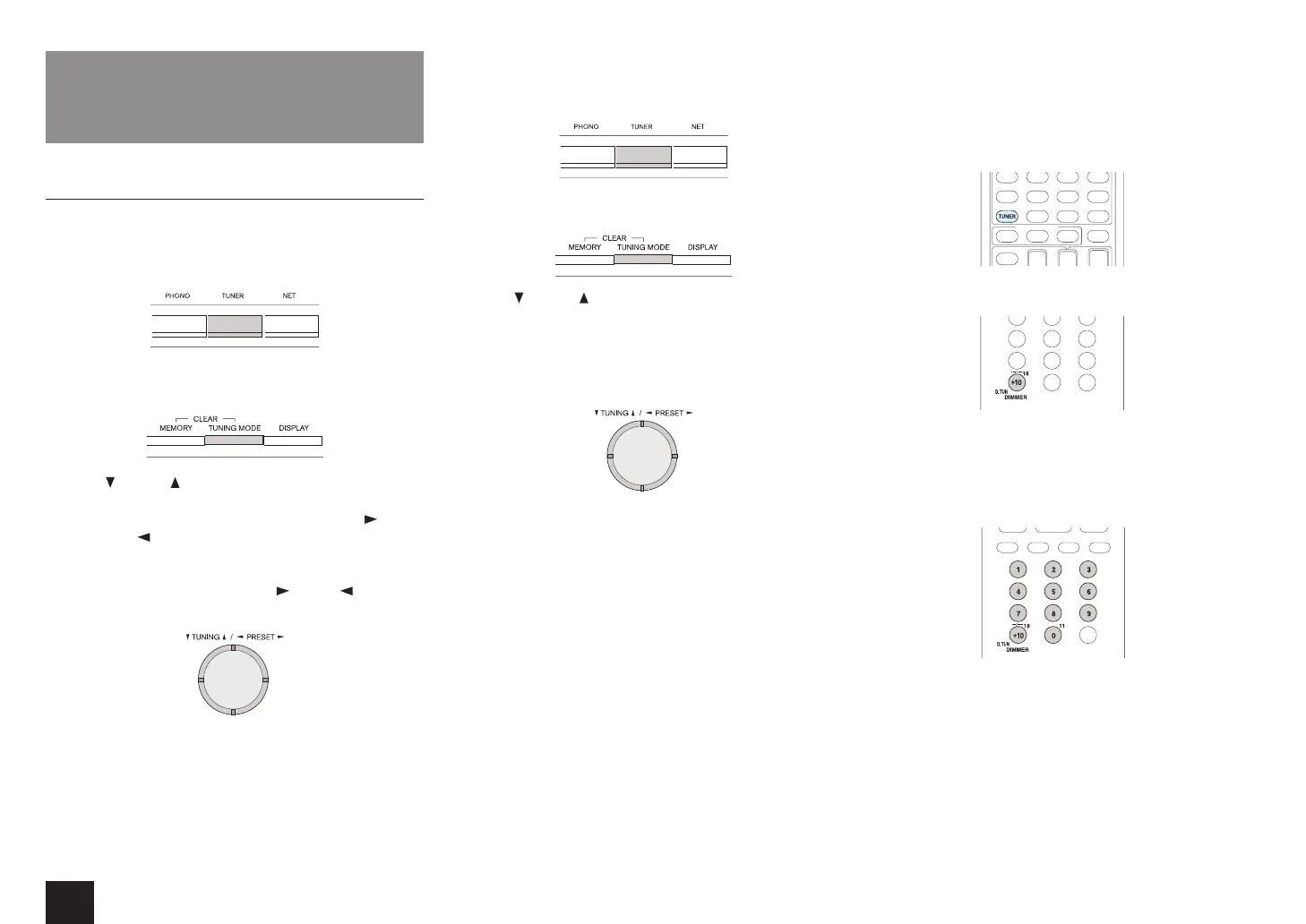

Tuning into stations automatically

Press TUNER on the main unit several times to select

either "AM" or "FM".

Press TUNING MODE so that the "AUTO" indicator on

the display lights.

Press TUNING to start automatic tuning.

r Searching automatically stops when a station is

found. When tuned into a radio station, the "

TUNED " indicator on the display lights. If FM

stereo broadcasting is tuned, the "FM STEREO"

indicator lights.

r No sound is output while the "

TUNED " indicator

is off.

When the signal from an FM radio station is weak:

Radio wave may be weak depending on the building

structure and environmental conditions. In that case,

manually tune into the radio station of your choice by

referring to the next section.



Tuning into stations manually

Press TUNER on the main unit several times to select

either "AM" or "FM".

Press TUNING MODE so that the "AUTO" indicator on

the display goes off.

Press TUNING to select the desired radio station.

r The frequency changes by 1 step each time

you press the button. The frequency changes

continuously if the button is held down and stops

when the button is released. Tune by looking at the

display.

To return the display to "AUTO": Press TUNING MODE

on the main unit again. A station is automatically tuned.

Normally "AUTO" should be displayed.



Tuning into stations by frequency

It allows you to directly enter the frequency of the radio

station you want to listen to.

Press TUNER on the remote controller several times to

select either "AM" or "FM".

Press D.TUN.

Using the number buttons, enter the frequency of the

radio station within 8 seconds.

r To enter 87.5 (FM), for example, press 8, 7, 5, or 8,

7, 5, 0. If you entered a wrong number, press D.TUN

and enter a correct one.
