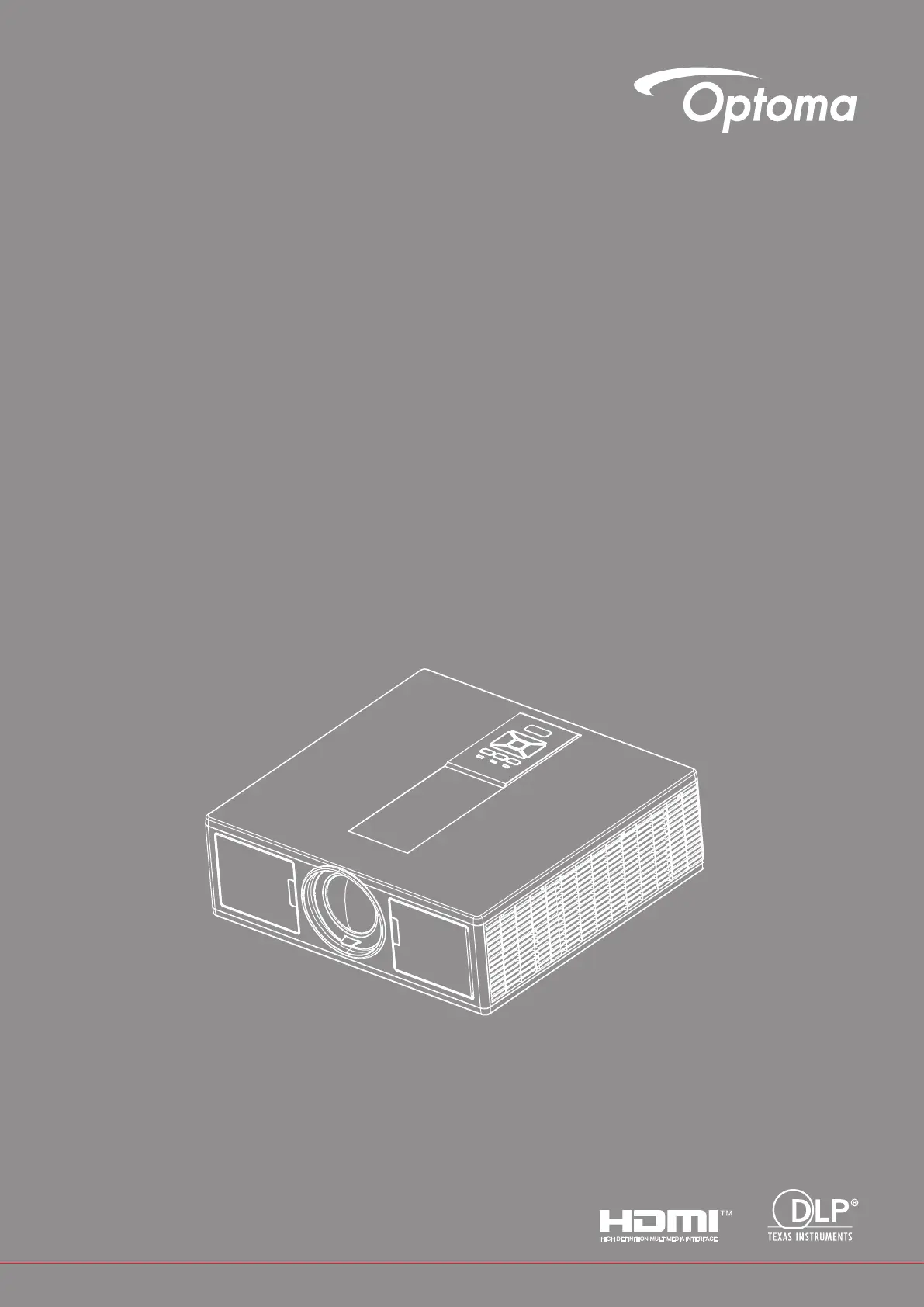

User’s Manual

DLP

Projector

2 English

SAFETY .................................................................................................3

Regulation & Safety Notices .......................................................................................................5

INTRODUCTION ....................................................................................8

Package Overview .....................................................................................................................8

Product Overview .......................................................................................................................9

Main Unit .................................................................................................................................9

Control Panel .........................................................................................................................10

Connections .......................................................................................................................... 11

Remote Control .....................................................................................................................12

SETUP AND INSTALLATION ..............................................................15

Connecting Source to the Projector .........................................................................................15

Powering the Projector On/Off .................................................................................................17

Warning Indicator ..................................................................................................................18

Adjusting the projector position ................................................................................................19

Adjusting the Projected Image .................................................................................................20

USER CONTROLS ..............................................................................23

Using the Control Panel ...........................................................................................................23

On-screen Display Menus ........................................................................................................24

How to operate ......................................................................................................................24

Structure ................................................................................................................................25

Picture ...................................................................................................................................29

Screen ...................................................................................................................................31

Settings .................................................................................................................................33

Volume ..................................................................................................................................34

Options ..................................................................................................................................35

3D ..........................................................................................................................................38

LAN .......................................................................................................................................39

APPENDICES ......................................................................................40

Projector Problems ................................................................................................................40

How to use web browser to control your projector ................................................................42

Crestron RoomView Control Tool .............................................................................................43

Installing and Cleaning the Optional Dust Filter .......................................................................45

Compatibility Modes .................................................................................................................46

Ceiling Mount Installation .........................................................................................................49

Optoma global ofces ...............................................................................................................50

TABLE OF CONTENTS

Produkspesifikasjoner

Merke:	Optoma
Kategori:	videoprosjektor
Modell:	ZU500TST
Produkttype:	Projektor med kort stråle
Vekt:	11000 g
Bredde:	405 mm
Dybde:	387 mm
Høyde:	159 mm
Støynivå:	28 dB
Strømkilde:	AC
Bruksanvisning:	Ja
Plassering:	Desktop
Wi-Fi:	Nei
Antall USB 2.0-porter:	1
Antall HDMI-porter:	2
DVI-port:	Nei
Smart TV:	Nei
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Passordbeskyttelse:	Ja
Strømforbruk (maks.):	480 W
Full HD:	Ja
3D:	Ja
HDMI-versjon:	1.4a
Kontrastforhold (dynamisk):	300000:1
On Screen Display (OSD):	Ja
Ensartethet:	85
12V trigger:	Ja
HDBaseT-port:	Ja
AC-inngangsspenning:	100 - 250 V
AC-inngangsfrekvens:	50 - 60 Hz
Batteritype:	AAA
Strømforbruk (standby):	0.5 W
Projektorens lysstyrke:	5000 ANSI lumen
Projektoroppløsning:	WUXGA (1920x1200)
Produktfarge:	Hvit
Antall støttede batterier:	2
Naturlig sideforhold:	16:10
Støttede grafikkoppløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Analogt signalformatsystem:	NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K1, SECAM L
Kabler inkludert:	AC
Visningsteknologi:	DLP
Skjermstørrelsekompabilitet:	29.4 - 305.6 "
Projeksjonsavstand:	0.5 - 5.2 m
Hjørnesteinsrettelse, horisontal:	-30 - 30 °
Hjørnesteinsrettelse, vertikal:	-30 - 30 °
Horisontalt frekvensområde:	15.375 - 91.146 kHz
Brennviddeområde:	17.63 - 31.36 mm
Horisontal linseforskyvning:	0 - 5
Vertikal linseforskyvning:	0 - 13
Zoom-type:	Fiksert
RS-232-port:	1
Lyskildens tjenestetid:	20000 timer
Lyskildetype:	Laser
Strømforbruk (vanlig bruk):	320 W
Slår seg automatisk av:	Ja
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Antall VGA (D-Sub)-porter:	2
HDMI-kontakttype:	Full-size
Mikrofon, linje-inn-støpsel:	Ja
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	5 - 40 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Driftshøyde:	0 - 3000 m
forskyvning:	100
OSD-språk:	ARA, CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, NOR, POL, POR, RUS, TUR
PC-lydinngang:	Ja
PC-lyd ut:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	0 - 90
Antall OSD språk:	18
RMS-rangert strøm/utgangseffekt:	20 W
Batterier medfølger:	Ja
Markedsplassering:	Short throw
Projeksjonsfaktor:	0.79:1
Mobil HD-lenke (MHL):	Ja
Kabellåsport:	Ja
Vertikal scanningsratio:	24 - 85 Hz
Kabellåstype:	Kensington
Støttede forhold:	4:3, 16:10, 16:9
Mini-USB 2.0-porter antall:	1
