Side 1/218
18
PETROL - DIESEL, MANUAL, 2 TRONIC OR AUTOMATIC GEARBOX

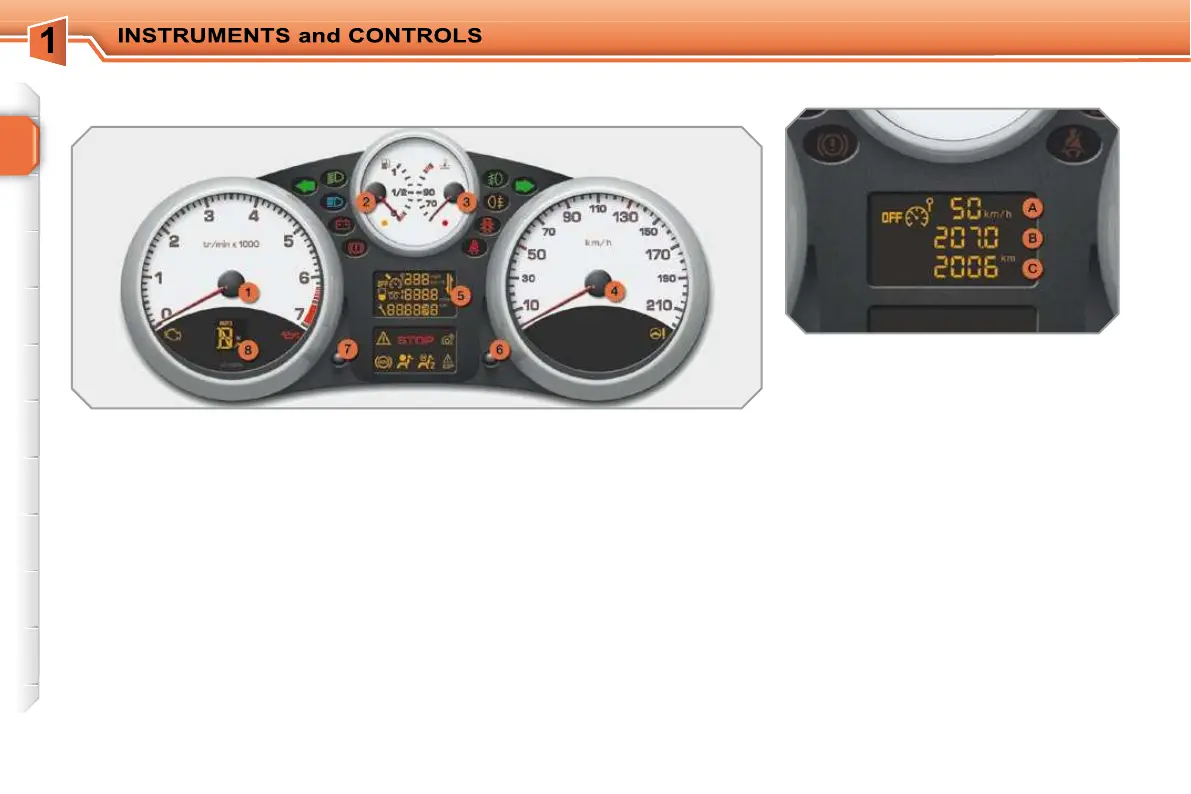

INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5. Screen.
6. Display zero reset button.
Resets the selected function to zero
(trip distance recorder or service in-
dicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting
of the instruments and controls.
8. " 2 Tronic " or automatic gearbox.
Indicates the programme selected
and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel remain-
ing in the tank.
3. Coolant temperature.
Indicates the temperature of the en-
gine coolant (° Celsius).
4. Speedometer.
Indicates the current speed of the
moving vehicle (mph or km/h).
A. Speed limiter.
or
Cruise control.
(mph or km/h)
B. Trip distance recorder.
(miles or km)
C. Service indicator.
(miles or km) then,
Engine oil level indicator.
then
Distance recorder.
(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.
Screen
For more information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
!
19
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of certain warning lamps may be accompanied by an audible
signal and a message on the multifunction screen.
The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the correspond-
ing system has come into operation.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato r
fl ashing with
buzzer.
The lighting stalk is pushed
down.
Right-hand
direction
indicator
fl ashing with
buzzer.
The lighting stalk is pushed
up.
Dipped beam
headlamps
fi xed.
The lighting stalk is in the
"Dipped beam headlamps"
position.
Turn the control to the desired position
Main beam
headlamps
fi xed.
The lighting stalk is pulled
towards you.
Pull the stalk to return to dipped beam
headlamps.
