Side 1/215
1
INSTRUMENTS and CONTROLS

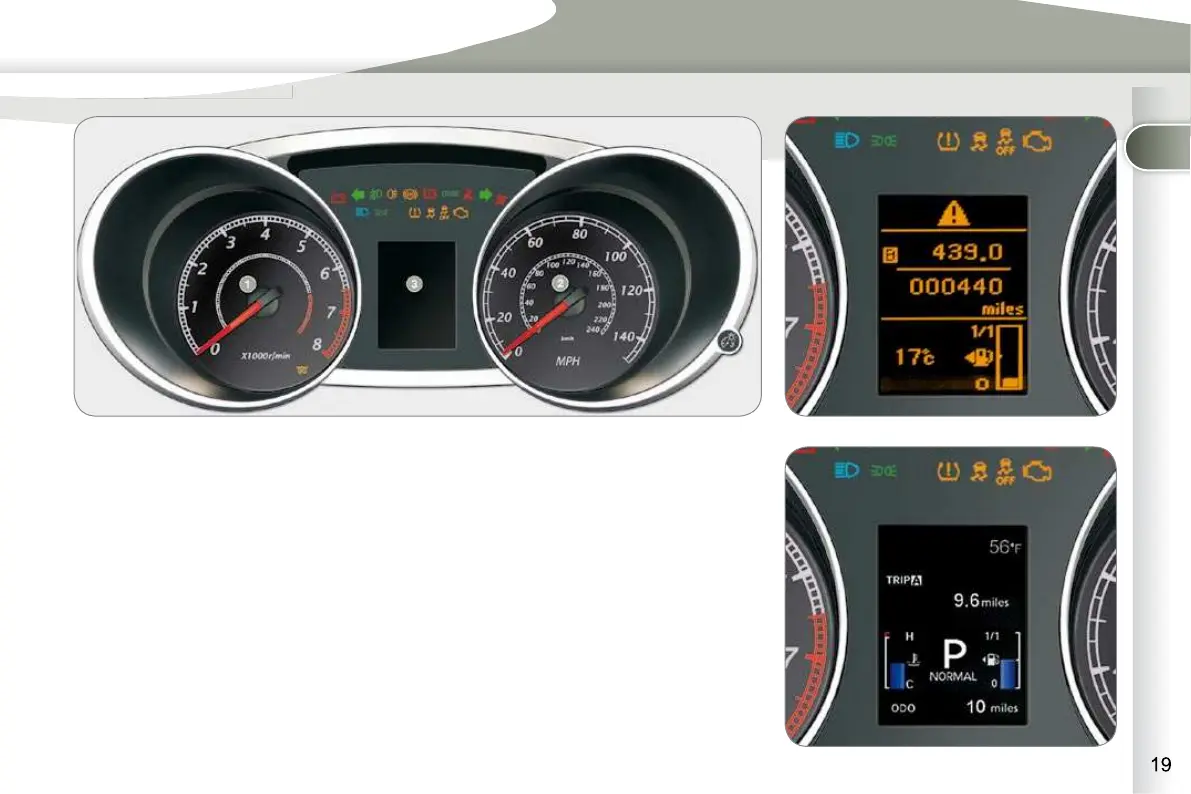

INSTRUMENT PANEL
INSTRUMENT PANEL
3. Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
- Dashboard lighting and parameter
settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1. Rev counter.
2. Speedometer.
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL WARNING LAMPS
Warning lamp is on Cause Actions/ Observations
Left-hand
direction
indicator
Flashing
with
audible
warning
This fl ashes when you
press the lighting stalk
down.
If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Right-hand
direction
indicator
Flashing
with
audible
warning
This fl ashes when you
push the lighting stalk up.
If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer.
Main beam
headlamps
Fixed
This comes on when
you pull the lighting stalk
towards you.
Pull the stalk to return to dipped beam
headlamps.
Sidelamps Fixed
This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position.
Turn the stalk to the desired position.
Front foglamps Fixed
This comes on when you
use the front foglamps.
Turn the ring on the stalk forwards to switch on
the foglamps.
Rear foglamps Fixed
This comes on when you
use the rear foglamps.
Turn the ring on the stalk forwards to switch on
the foglamps.
Cruise control Fixed
This comes on when the
mode is active.
Press the "ON/OFF" button to activate/deactivate
the mode.
