RACK-UP
®
SERIES

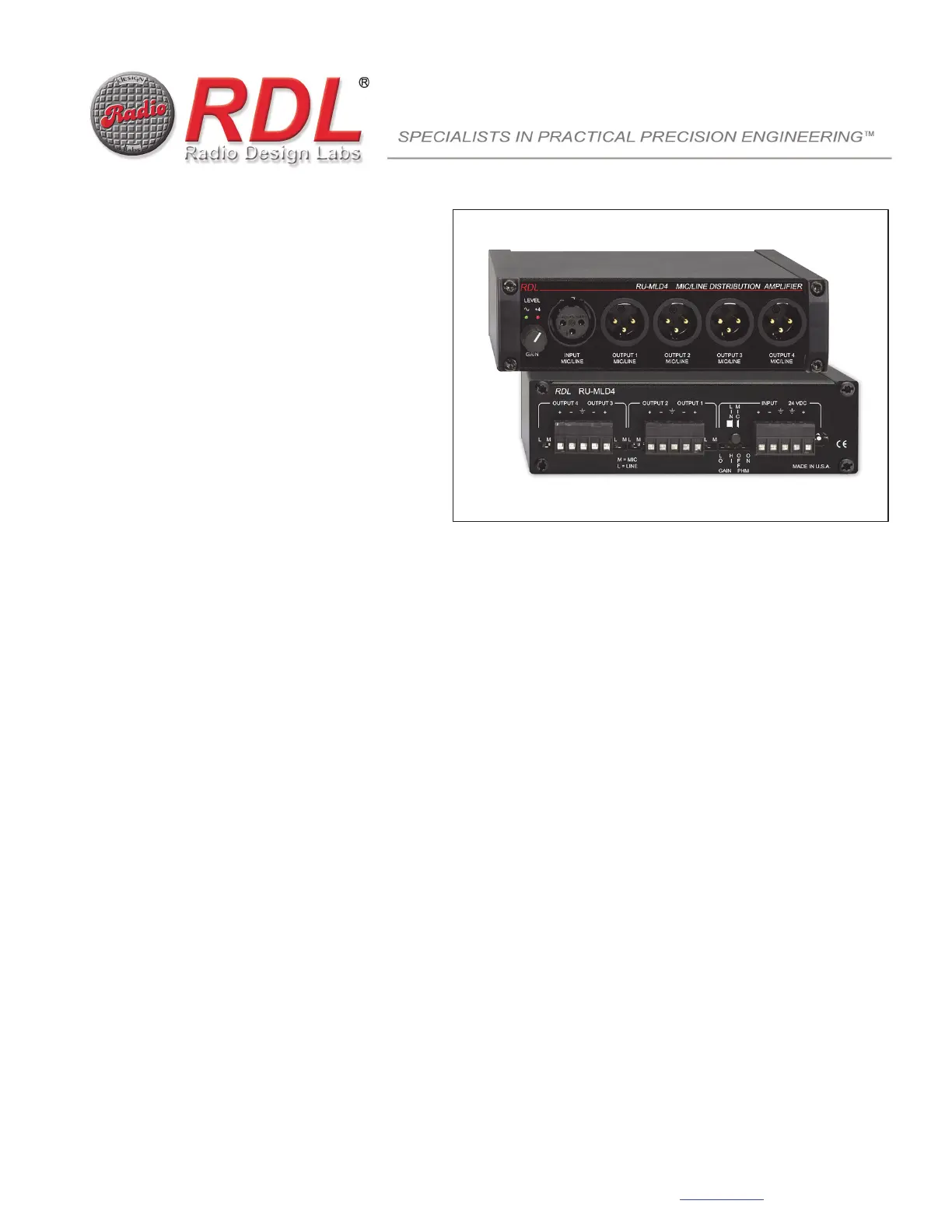

Models RU-MLD4 & RU-MLD4T
Mic/Line Distribution Amp
Distribution Amplifier with Four Outputs
Front Panel XLR Input / Output Jacks
Detachable Input / Output Terminal Blocks
Switch-selectable Mic or Line Input
Switch-selectable Mic Gain and Phantom
Gain-Trim on Input
Each Output Switch-selectable Mic or Line
The RU-MLD4 is part of the group of RACK-UP products from Radio Design Labs. RACK-UPs feature the advanced circuitry for which RDL
products are known, combined with accessible user-friendly controls and displays. The ultra compact design permits high-density installations,
with three products mounted in a single rack unit. Optional brackets permit mounting a RACK-UP module above, below, or in front of any flat
surface!
APPLICATION: The RU-MLD4 is an audio distribution amplifier with four outputs. The input and all four
outputs may be connected through the front-panel XLR jacks or on the rear panel detachable terminal
blocks. The input accepts either a balanced microphone or line level signal. Each of the four outputs
provides either a microphone or line level signal. Both the front-panel XLR connectors and the rear-panel
terminals are active at all times.
The audio input is equipped with a rear-panel switch to select between MIC and LINE level. Two additional
switches allow setting the MIC input for LO or HI gain and for enabling or disabling standard 24 Vdc
phantom. The two microphone gain settings allow the connection of a wide variety of dynamic and
condenser microphones. Each output is provided with a separate rear-panel switch to set the associated
level to either MIC or LINE. Audio outputs are isolated from each other and may be wired balanced or
unbalanced.
Gain trim is provided on a front-panel control. An RDL Dual-led VU meter is provided above the gain
trimmer. The meter is calibrated to indicate +4 dBu for outputs set to line level.
The rear panel provides a detachable terminal block and a power input jack to connect 24 Vdc power. The
RU-MLD4 audio outputs are active balanced. Each output of the RU-MLD4T is equipped with a
studio-quality audio output transformer.
Wherever 1 in by 4 out connectorized mic and line level audio distribution with gain trim is needed to
provide superior audio clarity, user adjustments, reliability, compactness and unsurpassed versatility, the
RU-MLD4 is the ideal choice. Use the RU-MLD4 combined with other RDL RACK-UP, STICK-ON, TX™,
or FLAT-PAK™ series products as part of a complete audio/video system.
