Installation Guide RIGOL
1
RIGOL DSG3000 Rack Mount Kit
This rack mount kit is designed to mount RIGOL DSG3000 series RF signal generator into a
19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.

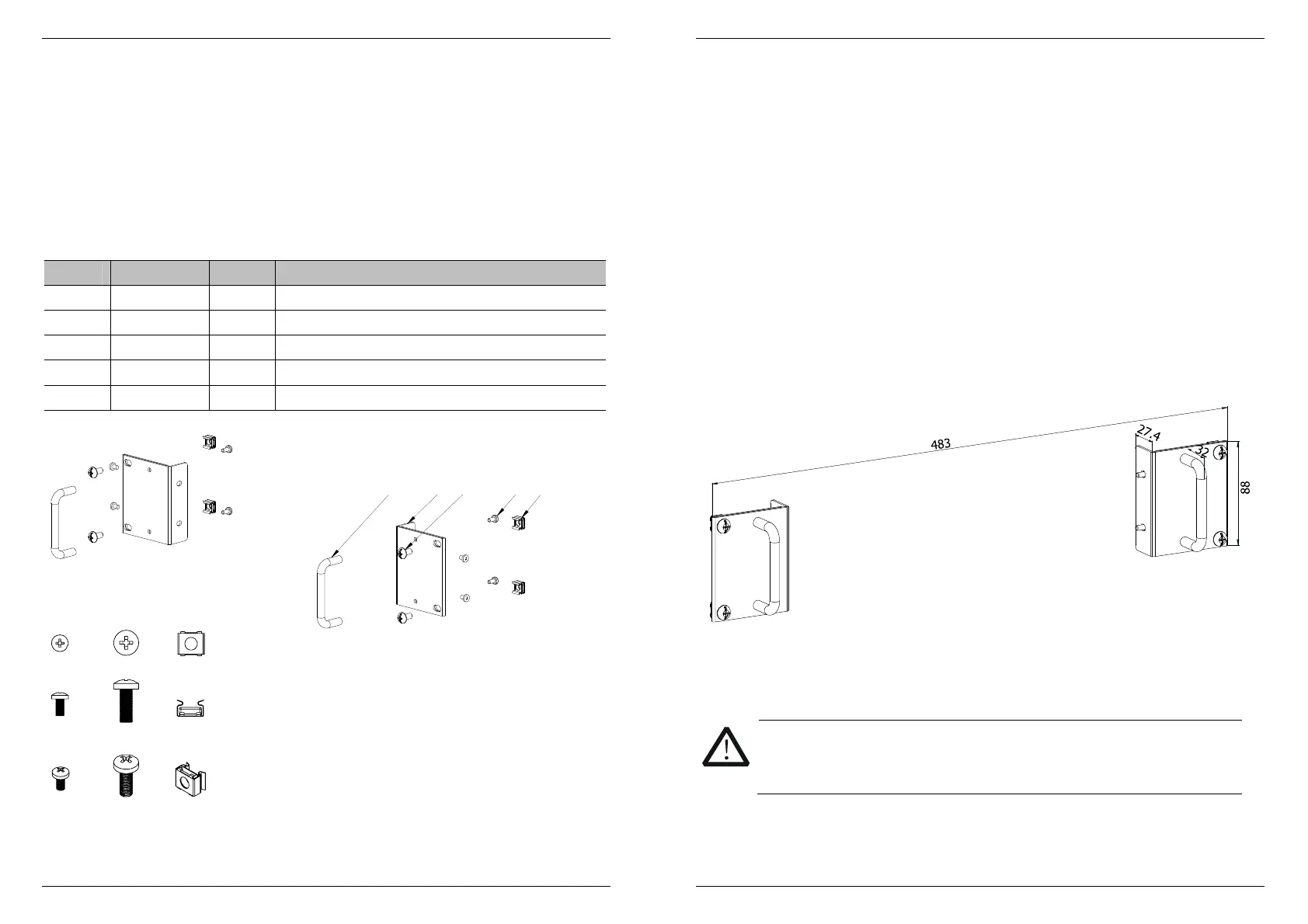

Kit Part Checklist
No. Name Qty. Description
1 Fastener 2 --
2 Rack Handle 2 --
3 M4 Screw 8 M4 x 8 Phillips Pan Head Screw
4 M6 Screw 4 M6 x 16 Phillips Pan Head Screw
5 M6 Nut 4 M6 Square Lock Cage Nut
3 4 5
2 1 4 3 5
Installation Guide RIGOL
2
Installation Tool
The PH2 Philips screwdriver is recommended.
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 2U (88.9 mm).
The depth of the cabinet should be at least 450 mm.
The dimensions of the rack are as shown below.
Unit: mm
Installation Procedures
CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
Installation Guide RIGOL
3

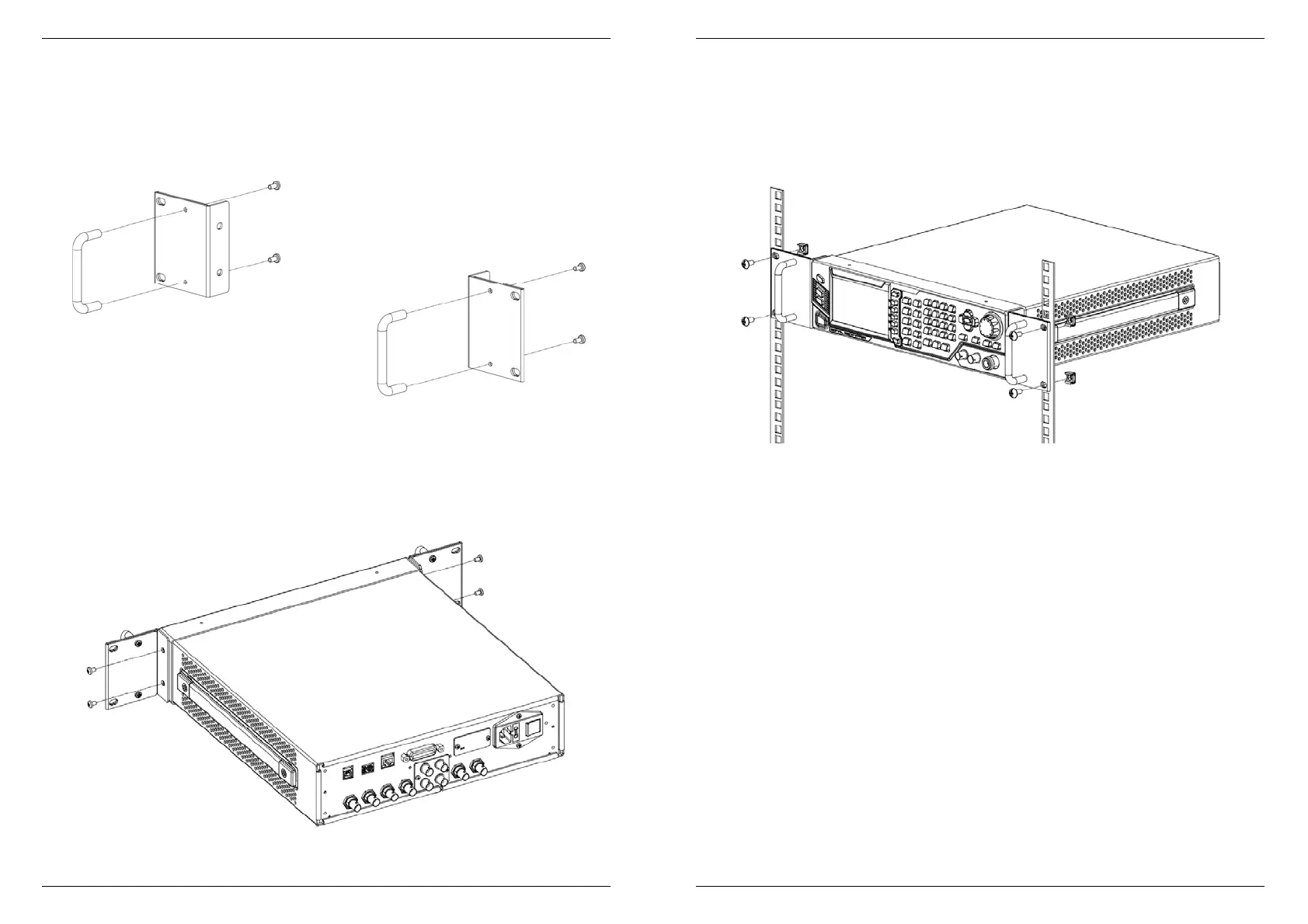

1. Mount the rack handle
Attach two rack handles to two fasteners respectively, and secure them with four M4
screws.
2. Mount the fastener
Attach two fasteners to both sides of the front panel, then secure the fasteners with
four M4 screws.
Installation Guide RIGOL
4
3. Get encased in the cabinet
Mount the assembled instrument and rack into a standard 19-inch cabinet using four
M6 screws and four M6 square nuts.
-End-
