安装指导 Installation Guide
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
DS1000Z/DG4000 机架套件
DS1000Z/DG4000 Rack Mount Kit
-1-
产品简介 Product Overview
使用本机架套件可将 RIGOL DS1000Z 系列数字示波器或 DG4000 系列函数/任意波形
发生器安装到 19 英寸标准机柜内。本手册以 DG4000 为例介绍安装方法。
Using this rack mount kit, you can install the RIGOL DS1000Z series digital
oscilloscope or DG4000 series function/arbitrary waveform generator into a standard
19 inches cabinet. This manual takes DG4000 as an example to introduce the
installation method.
部件清单 Kit Parts List
标号
No.
名称
Name
数量
Qty.
零件编号
Part No.
描述
Description
1-1
前面板
Front Panel
1 RM-DG4-01
1-2
底板
Support Panel
1 RM-DG4-02
1-3
左侧板
Left Plate
1 RM-DG4-03
1-4
右侧板
Right Plate
1 RM-DG4-04
1-5
压脚
Pressure Feet
2 RM-DG4-05
1-6
固定件
Built-in Fitting
2 RM-DG4-06
2-1
M4 螺钉
M4 Screw
18 RM-SCREW-01
M4 x 6
十一字切沟盘头机械牙
螺钉
M4 x 6 Phil-Slot Pan Head
Machine Screw
2-2
M6 螺钉
M6 Screw
4 RM-SCREW-02
M6 x 20
十一字切沟盘头机械牙
螺钉 M6 x 20 Phil-Slot Pan
Head Machine Screw
2-3
M6 螺母
M6 Nut
4 RM-SCREW-03
M6 x 4
带定位锁片机械牙方螺
母 M6 x 4 Square Machine
Female Screw Contain Lock
Blade
-2-

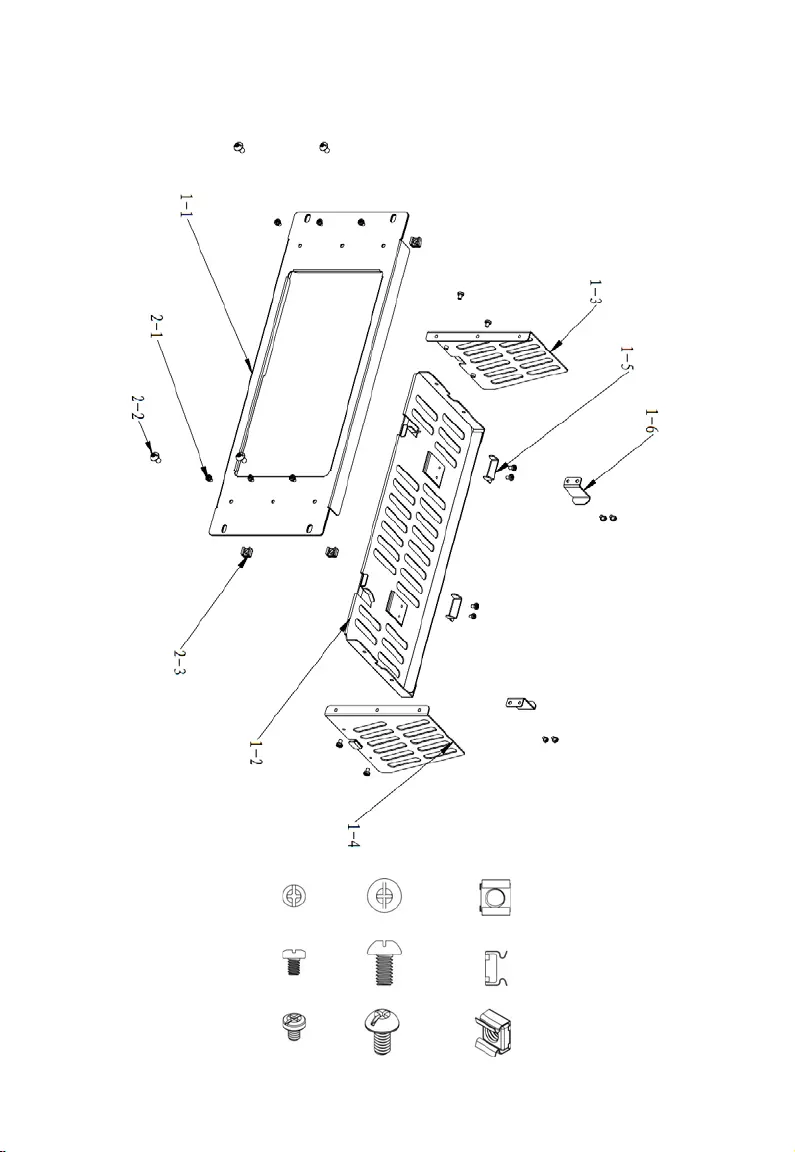

部件示意图 Parts Schematic Diagram
2-1 2-2 2-3
