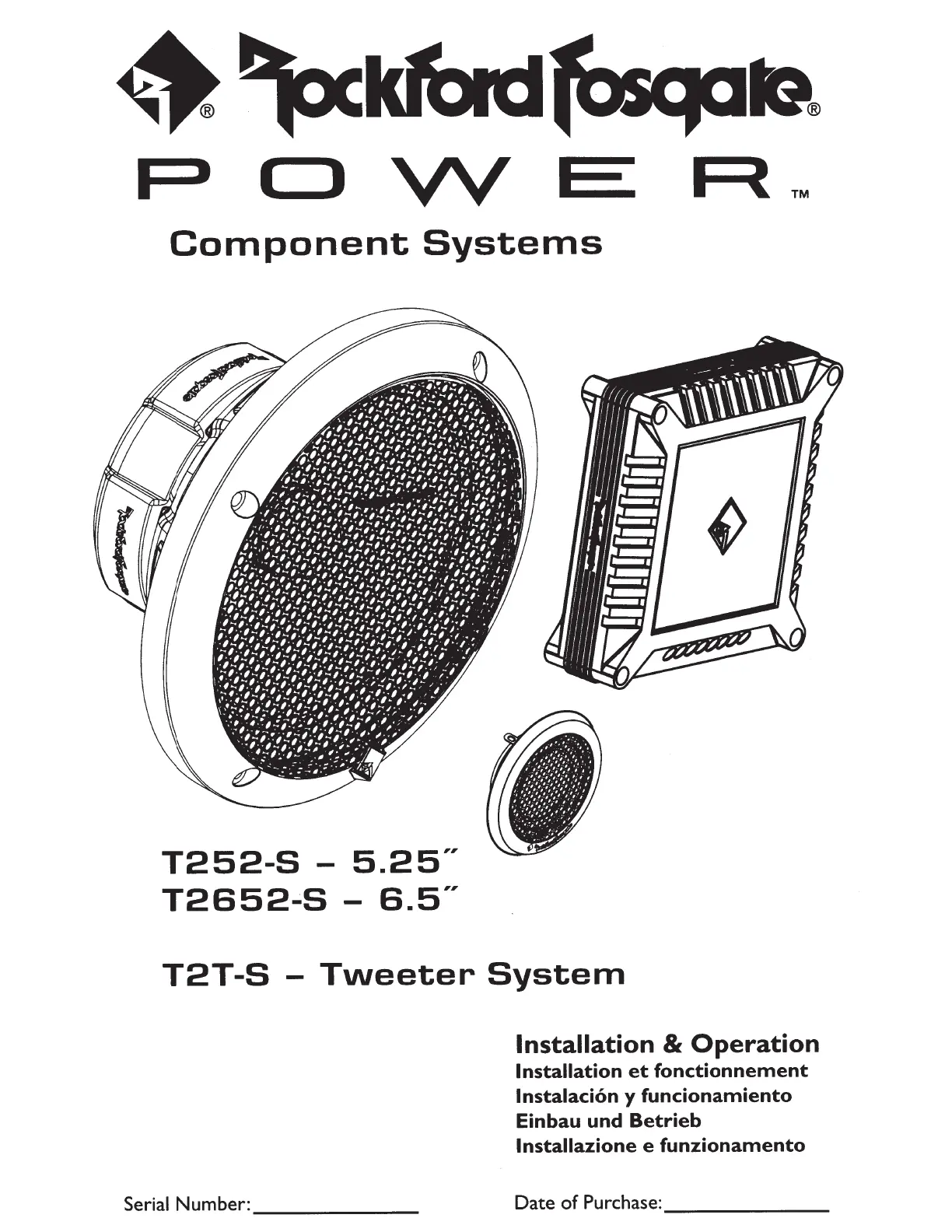

Side 1/13
I
J
w
E
Component
Systems
T252-S
-
5.25''
T2652~S
-
6.5''
T2T-S
-
T\Neeter
System
Serial
Number:
------
Installation
&
Operation
Installation
et
fonctionnement
lnstalaci6n
y
funcionamiento
Einbau
und
Betrieb
lnstallazione
e
funzionamento
Date
of
Purchase:
------
SAFETY
.&.
CAUTION:
Before installation, disconnect
the
battery
negative
(-)
terminal
to
prevent damage
to
the
unit, fire
and/or
possible injury.
PRACTICE
SAFE
SOUND™
Continuous
exposure
to
sound
pressure
levels
over
I
OOdB
may
cause
permanent
hearing loss. High
powered
auto
sound
systems
may
produce
sound
pressure
levels well
over
130dB. Use
common
sense
and
practice
safe
sound.
CARTON
CONTENTS
• (1)
Set
T2
Series
Speakers
with
Tweeters
and
2-Way
Crossover
or
(1)
Set
T2
Series
Tweeters
with
HP
Crossover
• (1)
Set
of
grilles/trim rings
• (2)
Sets
of
tweeter
trim rings:
(1
set
of
polished
aluminum)
(1
set
of
brushed
aluminum)
• Tweeter
Mounting
Hardware
with
Surface,
Angle,
and
Flush
Mounts
•
(I)
Set
Adapter
Plates:
T252-S
(5"x7"/6"x9"),
T2652-S
(5"x7"/6"x9")
INSTALLATION
CONSIDERATIONS
Before beginning
any
installation, follow these simple rules:
I.
Be
sure
to
carefully read
and
understand the instructions before attempting
to
install these
speakers.
2.
For
safety,
disconnect the negative
lead
from the battery
prior
to
beginning the
installation.
3.
For easier
assembly,
we
suggest
you run
all
wires
prior
to
mounting your
speakers
in
place.
4.
Use
high
quality connectors
for
a reliable installation
and
to
minimize
signal
or
power
loss.
5.
Think
before you
drill!
Be
careful
not
to
cut
or
drill into
gas
tanks,
fuel
lines,
brake
or
hydraulic
lines,
vacuum
lines
or
electrical wiring when working on
any
vehicle.
If
installation
in
a boat, take care
not
to
cut
or
drill through the
main
hull.
6.
Never run wires underneath the vehicle. Running the wires inside the vehicle
or
hull
area
provides the best protection.
7.
Avoid running wires over
or
through sharp
edges.
Use
rubber
or
plastic
grommets
to
protect
any
wires routed through metal, especially the firewall.
MOUNTING
I. Determine where the
speakers
will
be
mounted.
Ensure
an
area
large enough
for
the speaker
to
mount
evenly.
Be
sure that the mounting location
is
deep
enough
for
the speaker
to
fit;
if
mounting
in
a door, operate
all
functions (windows, locks,
etc.) through their entire operating
range
to
ensure there
is
no obstruction.
2.
Refer
to
the specification chart
to
determine the proper diameter hole
to
cut
for
your speaker model. The template provided
also
gives
the proper cutout
size.
3.
Mark the locations
for
the mounting screws. Drill the holes with a
1/8"
bit.
4.
Feed
the speaker wires through the cutout
and
connect
to
the speaker terminals.
Be
sure
to
observe proper polarity when connecting the wires. The speaker's
positive terminal
is
indicated with a
"+".
5.
On
models with slotted holes, fit the speaker into the cutout
and
install the
screws
in
the slots at the
top
and
bottom. This will allow you
to
rotate the
speak-
er
to
match the remaining mounting holes.
When
aligned,
tighten the screws.
6.
Tighten the screws until the speaker
is
snug
in
place
to
prevent rattling.
Do
not
over tighten the screws.
NOTE:
If
needed,
use
the
adapter
plate
provided
to
mount
the
speaker.
See
Adapter
Plate
Templates
at
the
end
of
this
manual.

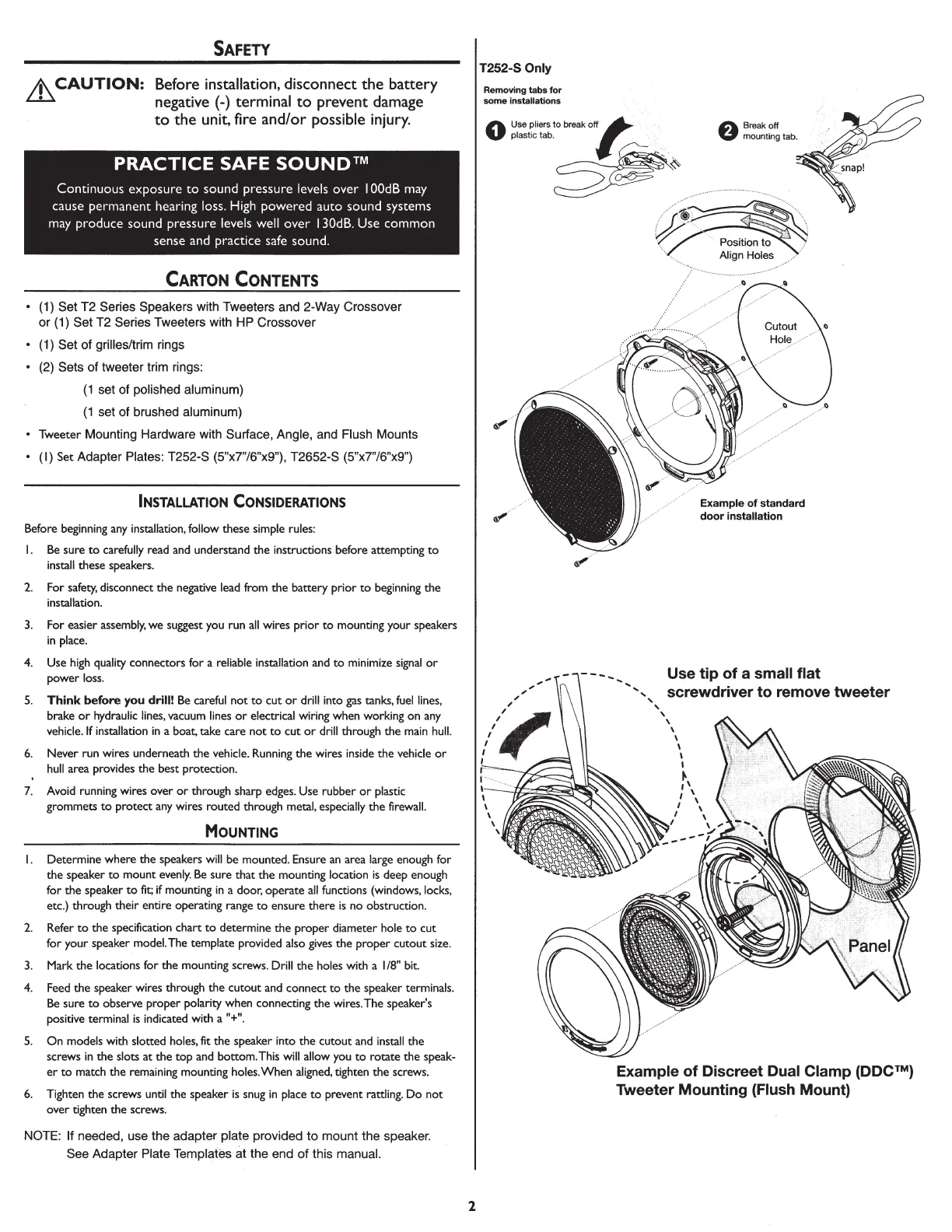

2
T252-S Only
Removing
tabs
for
some
installations
A
Breakoff
V mounting tab.
0
Use pliers
to
break
o~
plastic tab.
~··<
~~
Align
Holes
Example
of
standard
door
installation
Use
tip
of
a small
flat
screwdriver
to
remove
tweeter
Example
of
Discreet Dual Clamp (DOC™)
Tweeter
Mounting
(Flush Mount)
