Side 1/4
1

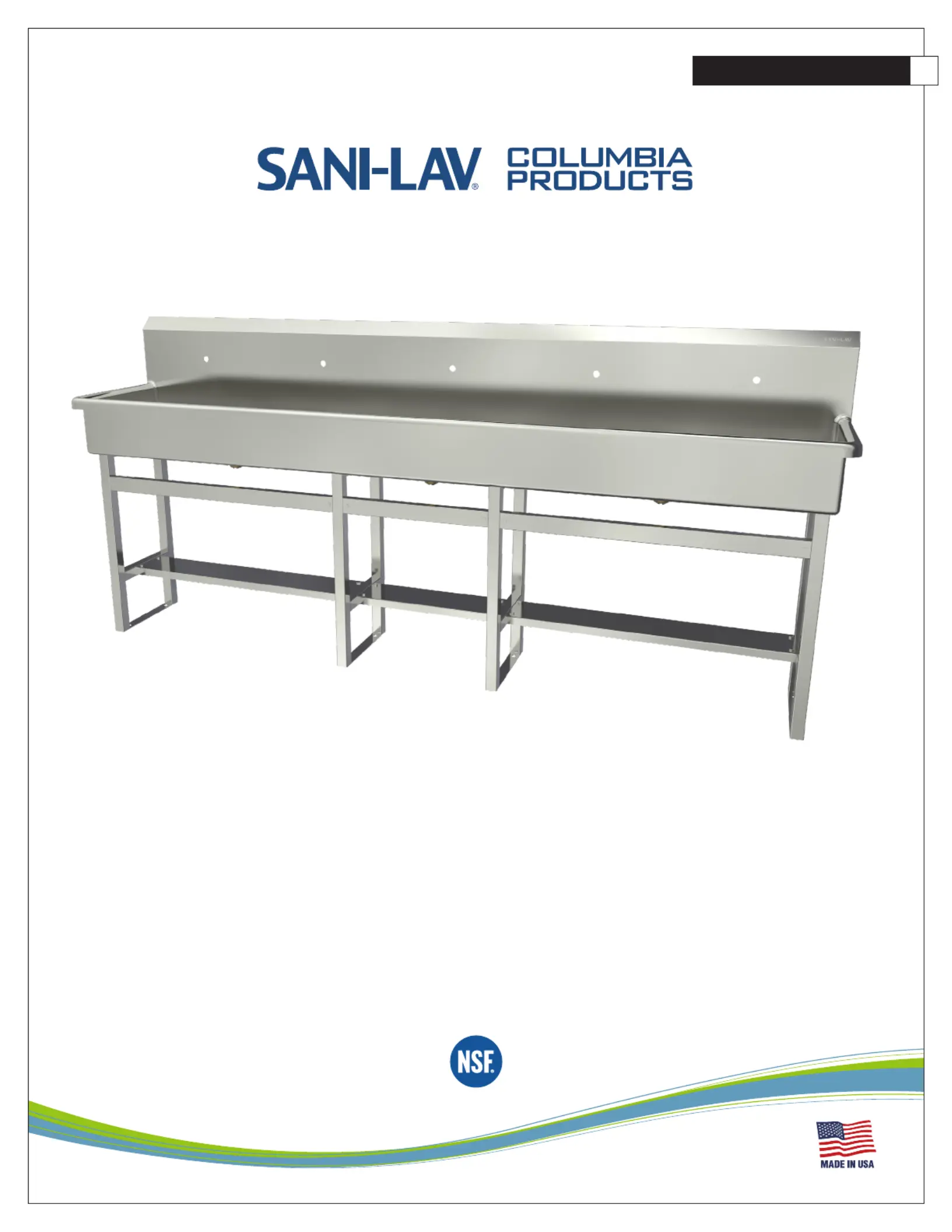

F L O O R M O U N T W A S H S TAT I O N
5-Person Floor Mount Stainless Steel Wash Station
Model 510F0
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment
2
C O L U M B I A S P E C I F I C AT I O N S
F L O O R M O U N T W A S H S TAT I O N
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
Parts List
(1) Floor mount wash station
(1) Leg assembly set
(8) Nuts, bolts and washers for leg assembly
(18) Nuts and washers for connecting sink to leg assembly
(3) Strainer assembly with basket
WARNING: Equipment that include faucets on this page may contain a chemical known
to the State of California to cause cancer, birth defects or other reproductive harm.
8” (203mm)
Front
.875” (22mm)
dia. holes (5)
11”
(279.4mm)
19.5”
(495.3mm)
11”
(279.4mm)
19.5”
(495.3mm)
19.5”
(495.3mm)
19.5”
(495.3mm)
10”
(254mm)
Hole Configurations
27” (686mm)
.5” R
(12.7mm)
100” (2540mm)
20.25” (514.35mm)20.25” (514.35mm) 29.75” (755.65mm) 29.75” (755.65mm)
97” (2463.8mm)
20”
(508mm)
16.5”
(407mm)
1.5”
(38mm)
2” (51mm)
1.5” (38mm)
Top
45º
Side
20” (508mm)
2” (51mm)
.5” R
(12.7mm)
1.5” (38mm)
35” (889mm)
floor to rim
height
10.25”
(267 mm)
2” drain hole
mounting holes
9” (228.6mm)
on center
9”
(228.6mm)
6.75” (171mm)
21” (533.4mm)36.5” (927.1mm) 36.5” (927.1mm)
2.875”
(73.02mm)
.75” (20mm)
Floor Mounting Detail
.5” dia. Floor
Mounting Holes
9” on Center
1.5” Leg
Thickness
.75” From
Edge of Leg
to First Hole
3
C O L U M B I A S P E C I F I C AT I O N S
F L O O R M O U N T W A S H S TAT I O N
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
Leg Assembly
x 18
