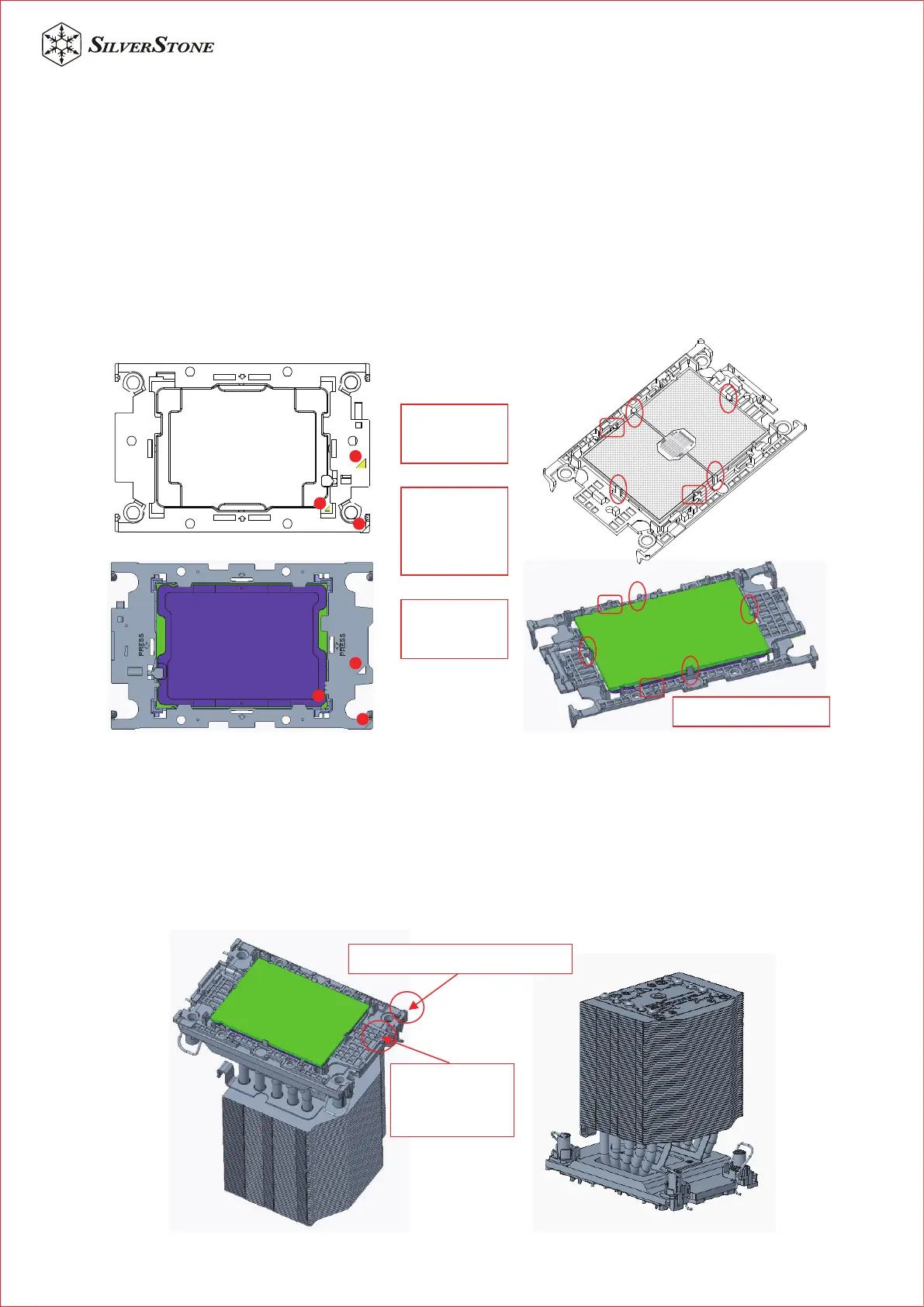

Install the processor first with the plastic carrier. Align the golden color triangle mark with the hollow triangle mark on the
carrier, then align the key on the processor IHS cover and side, push the processor and confirm the 4 clips securely
locked (Figure 1 &2)
Note: the carrier latches must be fully engaged with the keying slots on the edges of the processor and the processor
must be securely seated on the carrier after insertion.
1.
2.
Remove the heatsink from its packaging and remove the protection cover of Thermal Interface Material (TIM). The
required amount of TIM has been pre-applied on the bottom of the heatsink. Inspect the pre-applied TIM for any damage
before use.
Identify processor Pin 1 and onboard socket Pin 1 to decide the heatsink installation direction; for certain motherboards,
the Pin 1 location will be different with CPU1 and CPU2. (Figure 3 & 4)
Note: The complete assembly of processor, carrier, and heat sink is called Processor Heat Sink Loading Module (PHLM)
or Processor Heat Sink Module (PHM).
3.
4.
Hollow Triangle
Marker on the
Carrier
1.
Pin-1 Golden
Triangle Marker
both on CPU
Top and Bo�om
Substrate
2.
Solid Triangle
Marker on the
Carrier
3.
1
1
2
2
3
3
XENON (XE) SERIES – Assembly Guide for
LGA4677, LGA4189 Socket Coolers
Produkspesifikasjoner
| Merke: | SilverStone |
| Kategori: | Maskinvarekjøling |
| Modell: | XE04-4189 |
